Home > Products > ICAO Medium intensity High Building Aviation Obstacle Solar Powered Obstruction Light
ICAO Medium intensity High Building Aviation Obstacle Solar Powered Obstruction Light
Click on the image to view the original image
Product： views：3ICAO Medium intensity High Building Aviation Obstacle Solar Powered Obstruction Light
Branch： Doublewise
Type： Aviation Obstruction Lights
Size： 35X35X25 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC 7.2V
Lamp Power(W):
12
Lamp Luminous Flux(lm):
1400
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
85
Color Temperature(CCT):
2000 to 6000
Beam Angle(°):
360°orAny Sector
IP Rating:
IP67
Certification:
BV, CE
Emitting Color:
white,red
Lamp Body Material:
PC
Base Type:
C6
Light Source:
LED
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Solar Panel:
7.2Wp
Battery:
LithiumBattery 16Ah/7.2V

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X35X25 cm
Single gross weight:
6.0 kg
Package Type:
One Carton: one light, 340*340*230,4Kg.
Lead Time:
Quantity(Set)1 - 2>2
Est. Time(days)15To be negotiated
Video Description
Product Description

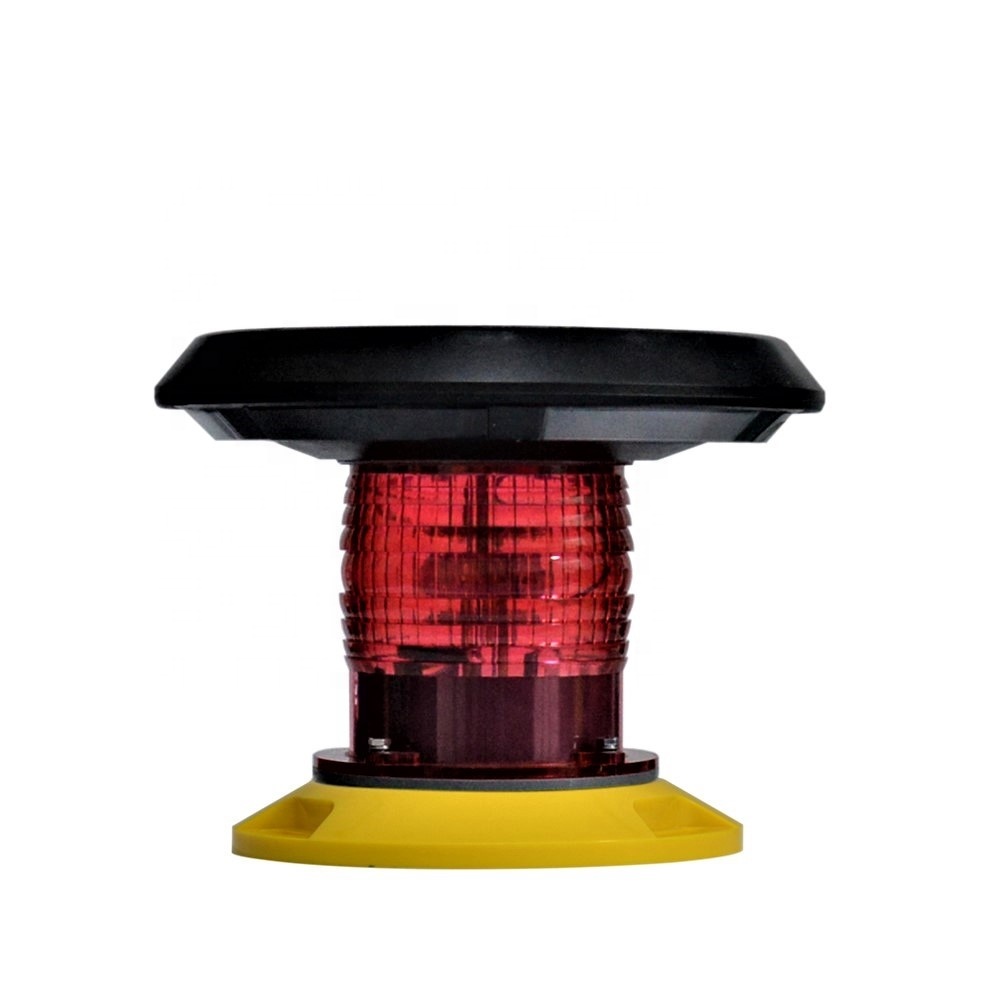

ICAO Medium intensity High Building Aviation Obstacle Solar Powered Obstruction Light

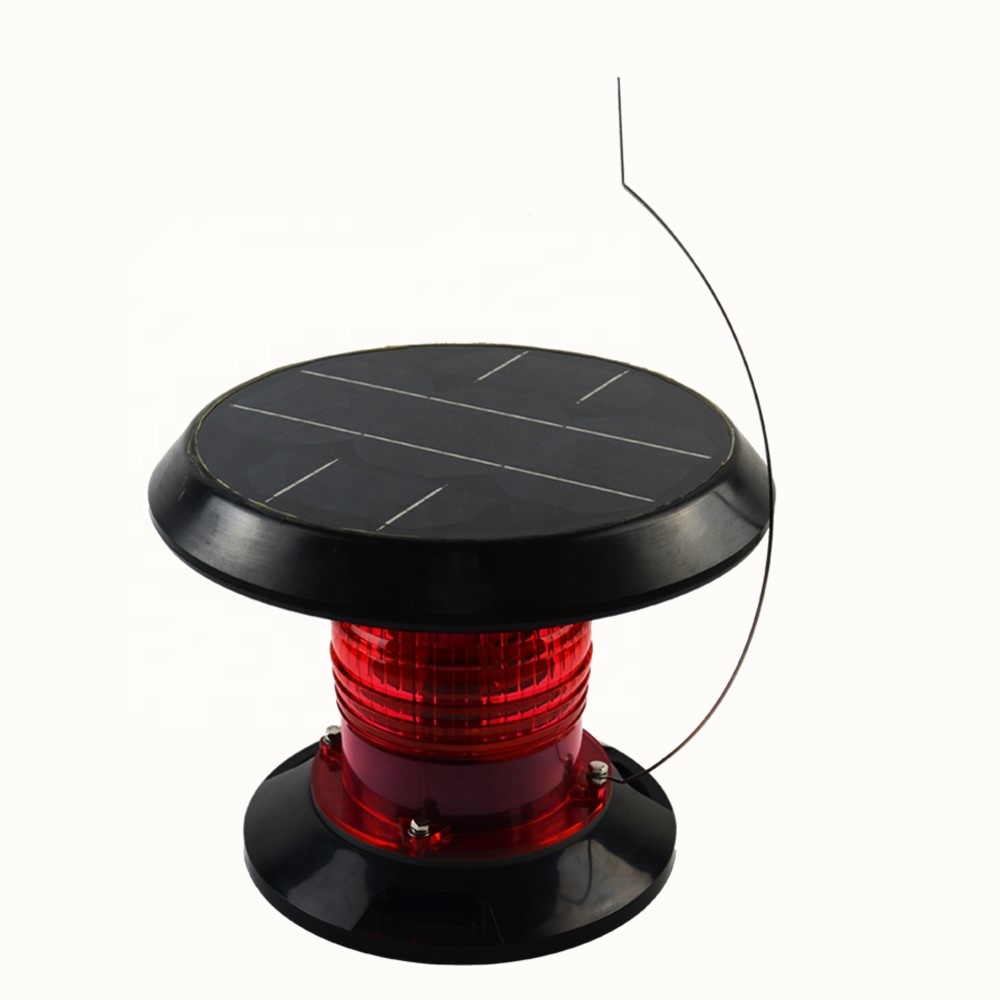

The DWS702 is a high-quality Medium Intensity Aviation Obstacle Solar Powered Tower Obstruction Light  which complies with FAA AC70/7460-1k and ICAO Annex 14 Volume Ⅰ. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as "Solar Mushroom Light". It can complete the synchronization of many lamps by GPS and is widely used in Aviation Warning of Iron towers,Chimneys,Buildings,Crane etc..

Features and Benefits


Medium intensity ICAO/FAA flashing patterns。


Solar panel 7.2Wp, replaceable LIthium Battery 16Ah/7.2V.

Light Output : 360°    or Any Sector.

Turns on at dusk and off at dawn automatically or by a touch switch.

Completely self-contained and waterproof IP67.

Charge under nearly all weather conditions and its minimum autonomy up to 200 hrs  from a full charge.

Lens is polycarbonate with anti-UV which is produced by Bayer .

Manufactured to ISO9001:2015 QAS.
Product Parameters
Main Specifications
Model      /     Name
                       DWS702      /      Medium-intensity Solar Obstruction Light
Peak Intensity
                                                               2000 cd ±25%
Source
                                                         Ultra-intensity LED
Vertical Divergence
                                                        ±7.5° at 50% intensity
Horizontal Output
                                                                       360°
Minimum Autonomy
                                                                 200 Hours
Solar Panel
                   Mono-crystalline , Maximum Power : 7.2 watts , Efficiency:16%
Battery
                                                         Lithium , 16Ah/7.2V,Replaceable
Lens Material  / Weight
                                    Polycarbonate        /        3.5kg
Waterproof
                                                               as per IP67
Patents
                       Chinese patents: 201320285.73.0 Other patents pending
Optional
                                                          GPS Synchronization
Typical Applications



                                          ● Iron Tower
                                          ● Crane
                                          ● High-Building



                  ● Water or Cooling Tower

                  ● Chimney

                  ● Wind Power Generator

Related Products

Solar Mini Obstruction Light

DWS201A

Solar Obstacle Light

DWS501A


Solar Obstruction Light

DWS301A

Our Company
Certifications
FAQ
1. How to complete the synchronization of all the lights in an area?

DWS702 accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller

2.Is there an attachment that is suitable for a variety of installation methods?

Yes,there is theadapter as follows. In order to better heat insulation and waterproof,we recommend to use the FlangeBase as an installing adapter.

Packing & Delivery

Packing

The package of DWS702 is a 350*350*250mm carton that can be loaded with one light.The weight of one light   is 6 Kg after packing .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
