Home > Products > ICAO Low-intensity Type B High Building Aviation Obstacle Warning Solar Powered Obstruction Light
ICAO Low-intensity Type B High Building Aviation Obstacle Warning Solar Powered Obstruction Light
Click on the image to view the original image
Product: views:6ICAO Low-intensity Type B High Building Aviation Obstacle Warning Solar Powered Obstruction Light
Branch: Doublewise
Size: 17X17X17 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Doublewise
Solar Panel:
2.7Wp
Battery:
Ni-MH 5Ah/4.8V

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
One Carton includes 6 lights.
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)15To be negotiated
Video Description
Product Description

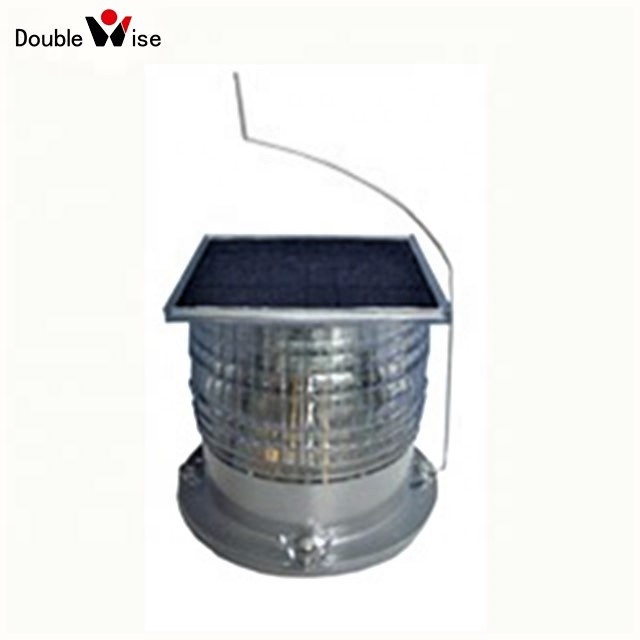

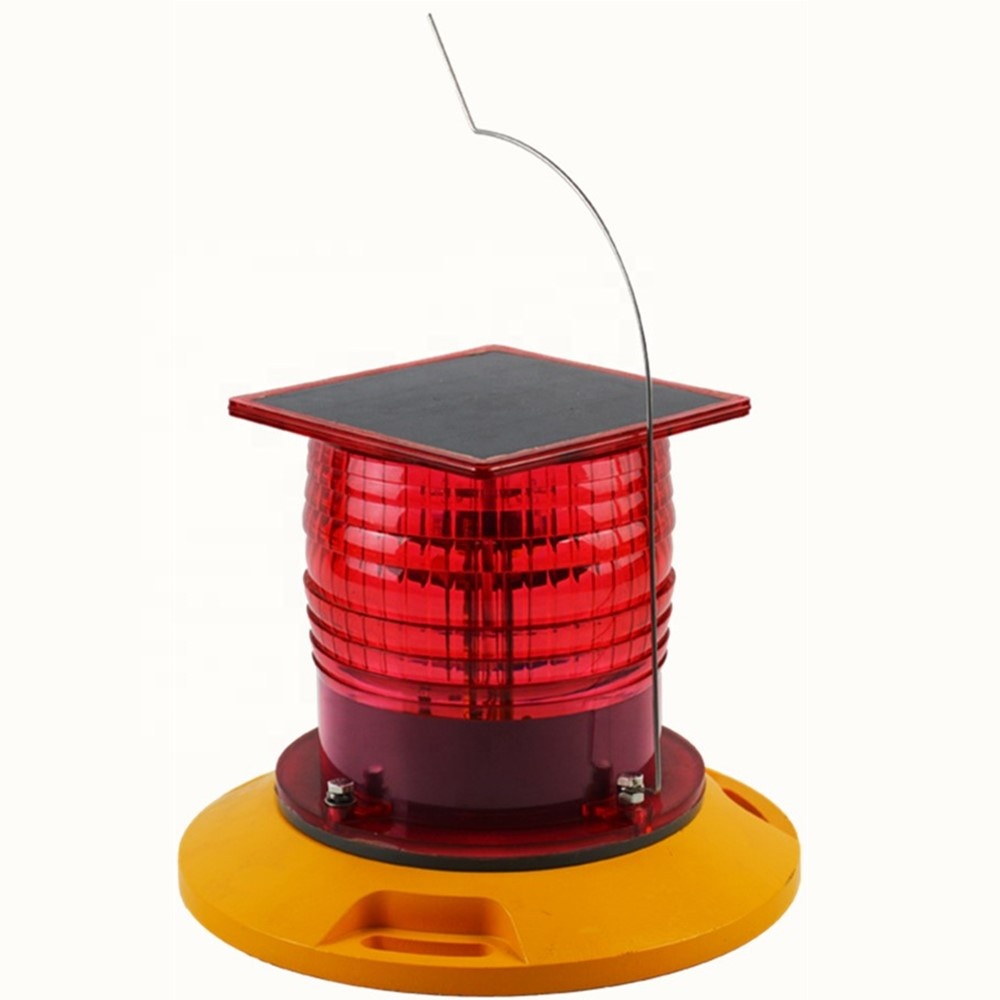

ICAO Low-intensity Type B High Building Aviation Obstacle Warning Solar Powered Obstruction Light

The DWS501A complies with the ICAO Annex 14 ,Low Intensity Type B or FAA L-810 .It is an ICAO FAA LED Tower Aviation Obstacle Solar Aircraft Obstruction Light with the characteristics of self-contained, durable and anti-UV and is widely used in the Aviation Obstacle Warning of Telecommunication/Power Towers,Chimneys,Cranes,High-Buildings and other dangerous Prominent Parts.It installs in minutes and requires no maintenance or servicing for up to five years.

Features and Benefits


Red,Steady-Burning and its intensity is more than 32cd.

Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.

Turns on at dusk and off at dawn automatically.

Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.


Completely self-contained and waterproof IP65.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Individual dome can protect the solar panel and raise its efficiency.

Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Typical Applications


● Iron Tower

● Crane

● Wind Power Generator



● High-Building
● Chimney
● Water or Cooling Tower
Related Products
Company Profile
Certifications
FAQ
1.What are characteristics of obstacle lights in the standards of ICAO and FAA?

According to ICAO Annex 14 Volume Ⅰ,the characteristics of low-intensity obstacle lights are as follows.
 The Specifications for Obstruction Lights in FAA AC 70/7460 -1k can be seen in the follow Table 2.
2. Under what circumstances DWS501A with a touch switchshould be chosen?

In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.

3.Is there the adapter for easy-installation?

Yes, there is an adapter FlangeBase as follows.

Packing & Delivery

Packing

The package of DWS501A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
