Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC 7.2V
- Lamp Power(W):
- 12
- Lamp Luminous Flux(lm):
- 1400
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 85
- Color Temperature(CCT):
- 2000 to 6000
- Beam Angle(°):
- 15°
- IP Rating:
- IP65
- Certification:
- BV, CE
- Emitting Color:
- white,red,green,amber
- Lamp Body Material:
- PC
- Base Type:
- Polycarbonate
- Light Source:
- LED
- Place of Origin:
- Shaanxi, China
- Brand Name:
- DOUBLEWISE
- LED intensity:
- Medium Intensity Aviation Obstruction Light
- Application:
- tower, himney and high buildings
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 35X35X25 cm
- Single gross weight:
- 6.0 kg
- Package Type:
- One Carton: 1 light Carton size: 350*350*250mm Total weight: 4Kg
- Lead Time:
Quantity(Piece) 1 - 6 >6 Est. Time(days) 15 To be negotiated
Video Description
Product Description
Medium Intensity LED Solar Tower Aviation light with Low Price

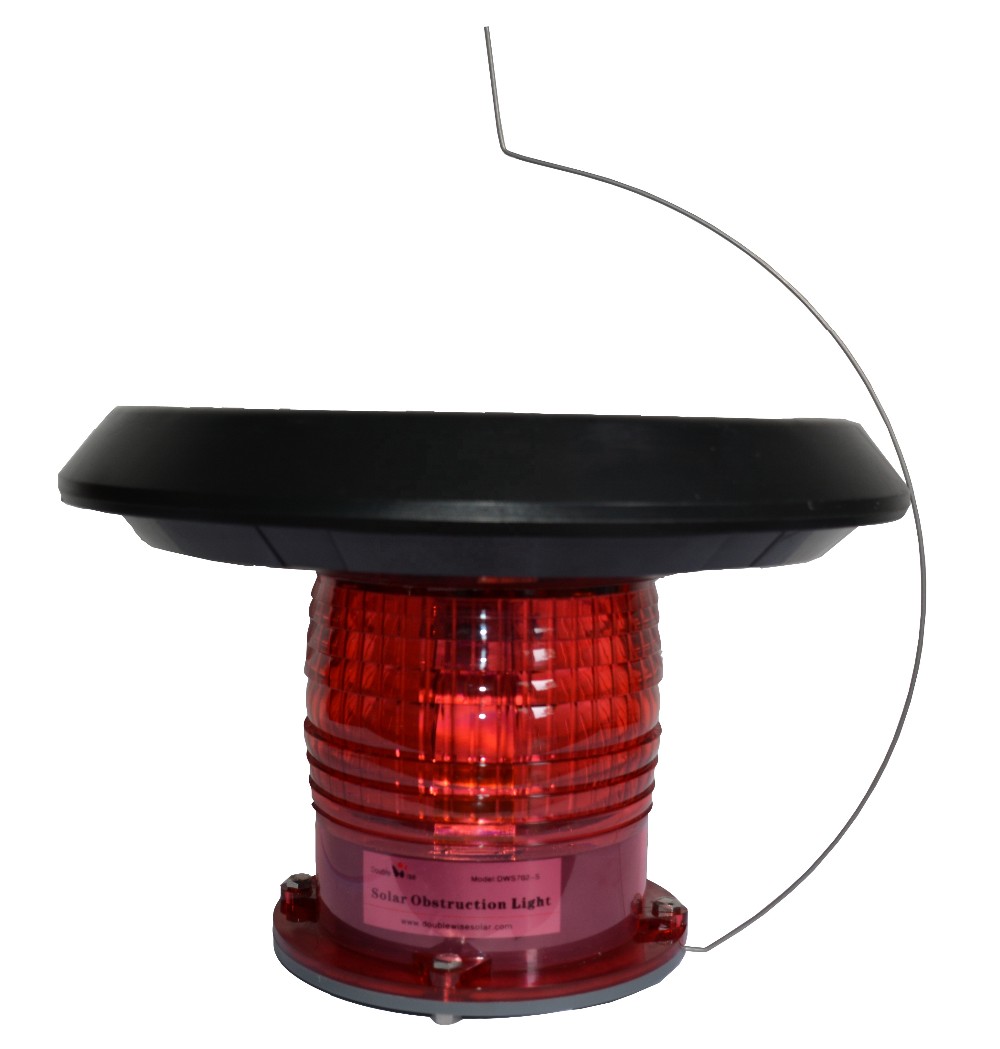

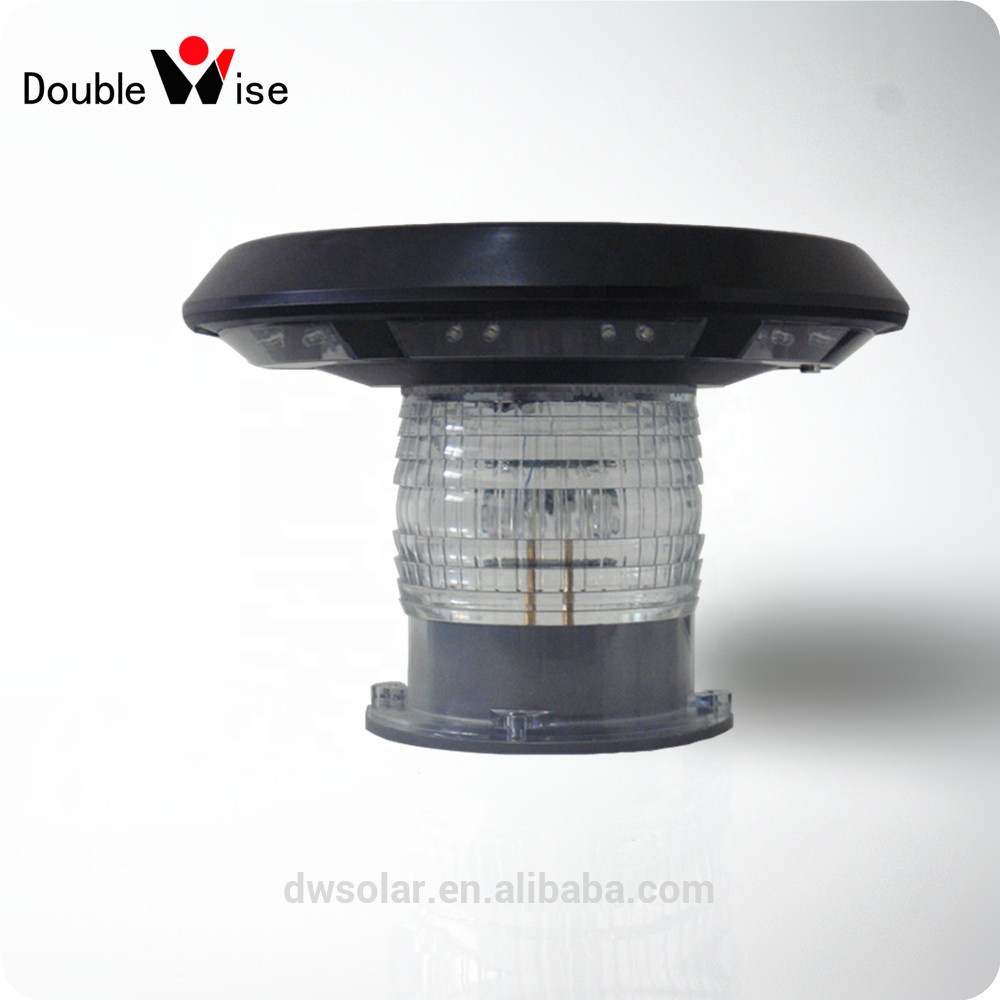

The DWS702 is a Medium-intensity Building Tower Aviation Obstruction solar powered LED Aircraft Warning Light which meets FAA/ICAO standards. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as “Solar Mushroom Light”. It can complete thesynchronization of many lamps by GPS and is widely used in Aviation Warning of Iron Towers,Chimneys,Buildings.
Features and Benefits
ICAO/FAA flashing patterns and medium-intensity |
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V. |
Light Output : 360 ° or Any Sector. |
Turns on at dusk and off at dawn automatically or by switch. |
Completely self-contained and waterproof IP65. |
Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge. |
Lens is poly-carbonate with anti-UV which is produced by Bayer. |
Manufactured to ISO9001:2015 QAS. |
Product Parameters
Typical Applications
Related Products
Company Profile
Certifications
FAQ
1. How to determine the kind of an obstacle light?
According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows.
2. How to complete the synchronization of all the lights in an area?
DWS702S accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller.
3 .Is there an attachment that is suitable for a variety of installation methods?
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packing & Delivery
Packaging
The package of DWS702 aircraft warning lights is 350*350*250mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
