Product Description

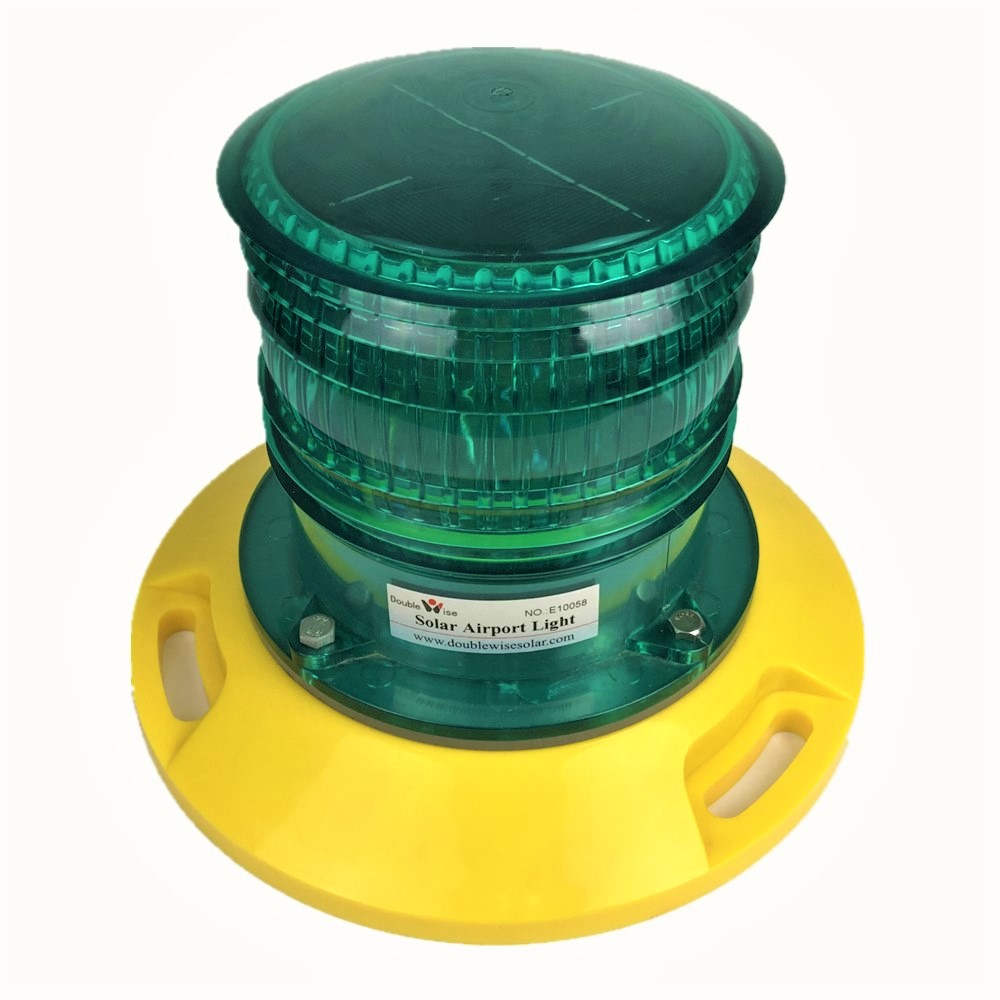

Helipad Perimeter Lighting Solar Powered Led Heliport Light
DWSAN301G is a wireless solar powered Helipad Heliport perimeter LED light that complies with ICAO Annex 14 Volume Ⅱ and FAA. It meets traditional helipad lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Helipad Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some helipads including USA, Brazil, Canada, Australia and China etc..
Features and Benefits
The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Available in Green, Yellow or White colors.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.
Lens is made from durable,anti-UV Bayer® polycarbonate.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Main Specifications | |||||||
Light Output | 360°, STEADY ON | ||||||
Intensity Adjustment | Adjustable Low/Medium/High | ||||||
Colors | Green, amber or white | ||||||
Minimum Autonomy | 100/60/30 Hours | ||||||
Source & its lifespan | LEDS & up to 50,000 Hours | ||||||
Solar panel | Mono-crystalline;1.5Wp;Efficiency 20% | ||||||
Battery | Ni-Mh, replaceable;5Ah/4.8V | ||||||
Lens Material | Polycarbonate | ||||||
Patent | Chinese patent: 200830018497.5 | ||||||
Quality Assurance | ISO9001:2015 | ||||||
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.Is there the remote controller?
Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller.

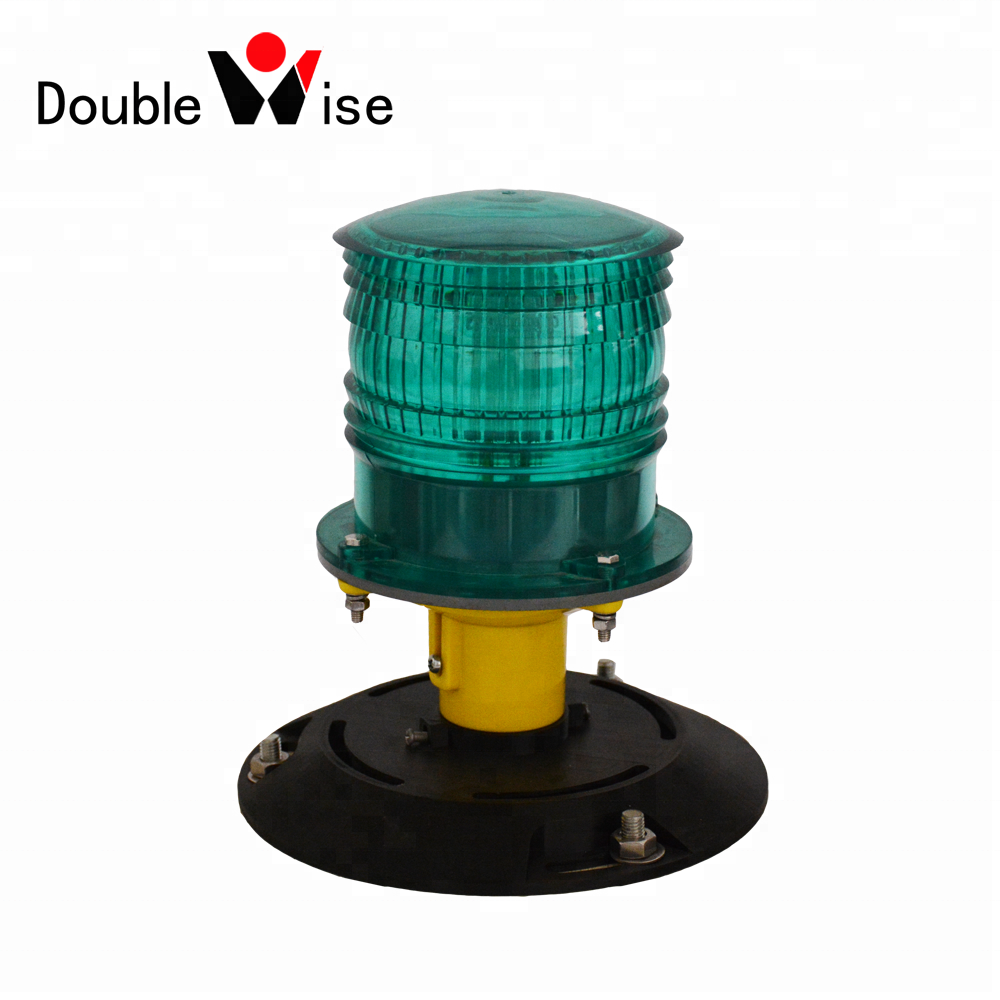

2. Please see the installation FlangeBase as follows:
Packing & Delivery
Packing
The package of DWSA301G is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
