Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 4.8V
- Lamp Power(W):
- 1
- Lamp Luminous Flux(lm):
- Red 18000mcd
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 85
- Color Temperature(CCT):
- 2000 to 6000
- Beam Angle(°):
- 360 Degree
- IP Rating:
- IP67
- Certification:
- BV, CE
- Emitting Color:
- Red
- Lamp Body Material:
- PC
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Shaanxi, China
- Brand Name:
- DOUBLEWISE
- Solar Panel:
- 2.7Wp
- Battery:
- Ni-MH 4.8Ah/4.8V
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X17X17 cm
- Single gross weight:
- 1.5 kg
- Package Type:
- One Carton: 6 lights, 540*360*200,9Kg.
- Lead Time:
Quantity(Set) 1 - 6 >6 Est. Time(days) 15 To be negotiated
Video Description
Product Description

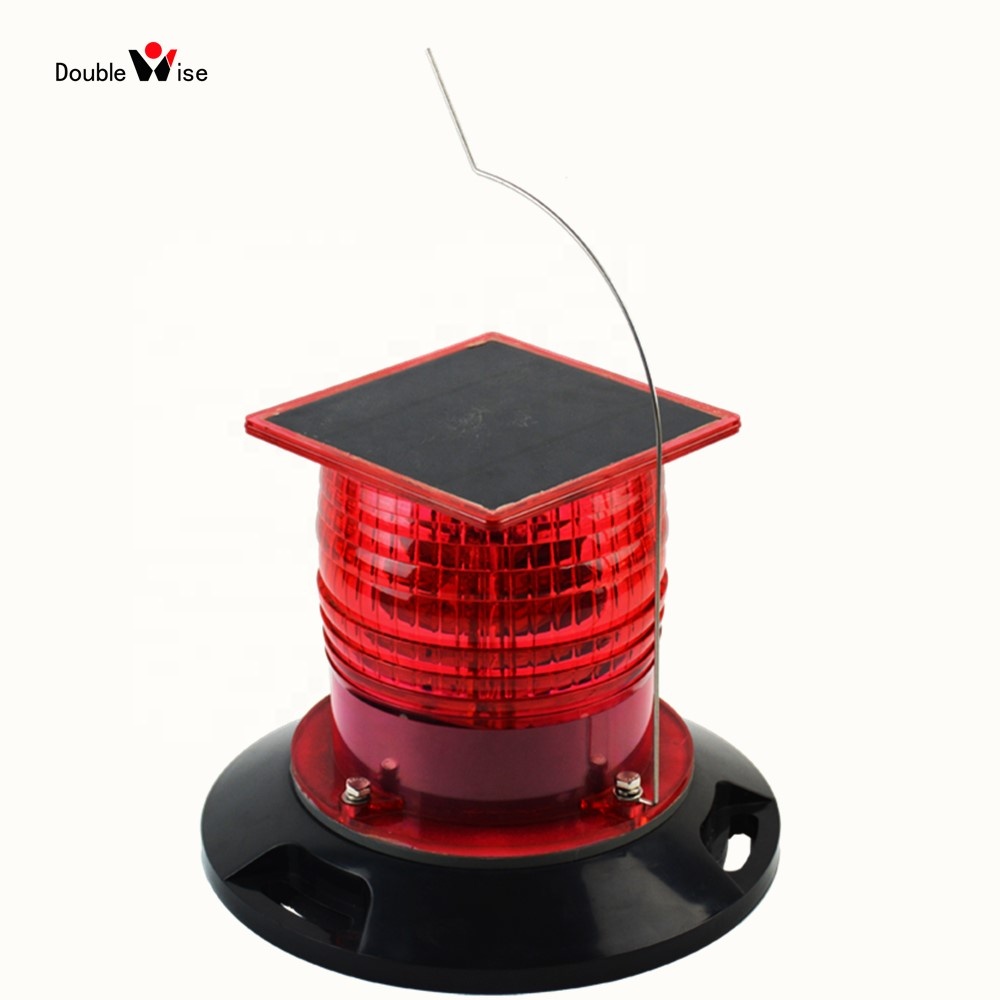

ICAO FAA Portable Tower Aviation Obstacle Solar Powered Obstruction Light
Features and Benefits
Red,Steady-Burning and its intensity is more than 32cd.
Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.
Turns on at dusk and off at dawn automatically.
Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.
Completely self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Specifications | |
Light Output | STEADY ON , Red, 360° |
Standards | ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k |
Intensity / Visibility | ≥32cd / 5Km |
Minimum Autonomy | 150 Hours |
LED | Numbers: 12Pcs Lifespan: up to 50,000 Hrs |
Environmental Conditions | Latitude Range: 55°S to 55°N On/Off Level: 60/100 Lux Temperature Range: -40℃ to +80℃ Waterproof: IP65 |
Solar panels | Mono-crystalline;Maximum Power 2.7Wp;Efficiency 16% |
Battery | Ni-Mh , Replaceable;4.8Ah/4.8V |
Lens Material | Polycarbonate |
Mounting Option | 4 bolts or Magnetic base |
Quality Assurance | QAS: ISO9001:2015 CE: CTR090817073E |
Patents | Chinese patents: ZL201430444455.3 Other patents pending |
Alarm output | Optional |
Typical Applications
● Iron Tower
● Crane
● Wind Power Generator
● High-Building
● Chimney
● Water or Cooling Tower
Related Products
Our Company
Certifications
FAQ
1.What are characteristics of obstacle lights in the standards of ICAO and FAA?
According to ICAO Annex 14 Volume Ⅰ,the characteristics of low-intensity obstacle lights are as follows.
The Specifications for Obstruction Lights in FAA AC 70/7460 -1k can be seen as follow Table 2.
2. Under what circumstances DWS501A with a touch switch should be chosen?
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
3.Is there the adapter for easy-installation?
Yes, there is an adapter FlangeBase as follows.
Packing & Delivery
Packing
The package of DWS501A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
