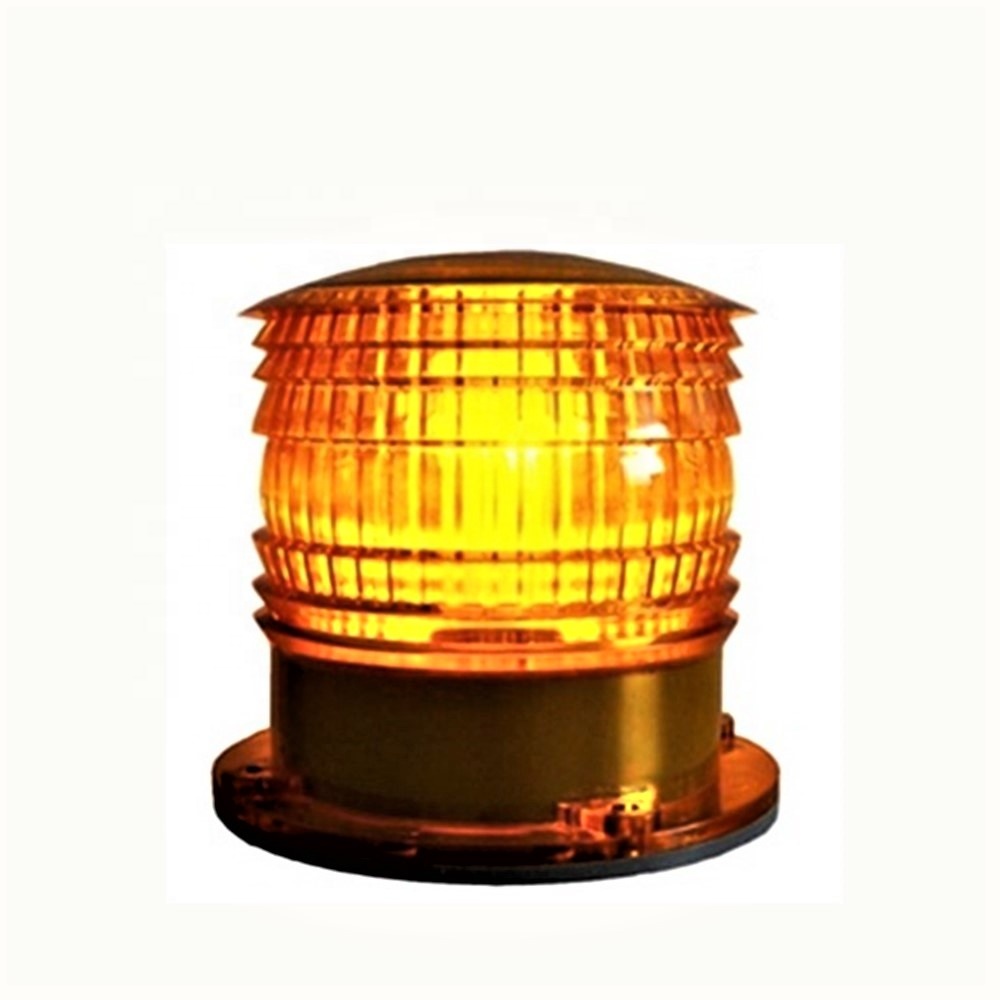

Doublewise Solar Marine light for Buoy
Click on the image to view the original image
Product: views:7Doublewise Solar Marine light for Buoy
Branch: Double Wise
Size: 17X17X17 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shaanxi, China
Light Source:
LED
Input Voltage(V):
2.4
Lamp Luminous Flux(lm):
`120
CRI (Ra>):
86
Working Temperature(℃):
-40-80
Working Lifetime(Hour):
50000
IP Rating:
IP67
Certification:
CE
Warranty(Year):
2
Brand Name:
Double Wise
Model Number:
DWS302TS
Application:
Marine light
Power Supply:
Solar
Beam Angle(°):
15
Certificate:
ISO9001,CE,BV
Visibility:
3NM
Material:
Polycarbonate
Color:
Red,green,amber,white

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
1.5 kg
Package Type:
Each light carton: 170*170*170mm N.W.:0.9kg; G.W.:1.5kg 6pcs light in One carton, total size:540*360*200mm , total G.W.:9kg
Lead Time:
Quantity(Set)1 - 6>6
Est. Time(days)15To be negotiated
Video Description

Solar Marine Light For Buoy
Product Description
This DWS302TS has become one of the most classical and popular solar-powered aid to navigation Light around the world because of its self-contained, reliability and durability. Its flashing pattern complies with IALA Maritime Buoyage System and can be customized  up to 16 IALA flashing codes. It's completely sealed in order to make sure its waterproof IP67. It installs in minutes and requires no maintenance or servicing for up to five years.

Features and Benefits


Flashing and its visibility up to 3NM.


Available in red, amber, white and green.


Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.


Turns on at dusk and off at dawn automatically.


Completely self-contained and waterproof IP67.


Charge under nearly all weather conditions and up to 140 hours of operating capacity from a full charge.


Individual dome can protest the solar panel and raise its efficiency.


Lens is polycarbonate with anti-UV which is produced by Bayer.


Manufactured to ISO9001:2015 QAS and certified CE.

Main Specification
Light Output
360°; Flashing.
Average Intensity
White 41cd; Red 32cd; Amber 27cd; Green 39cd
Visibility
2~3NM at T=0.74
LEDsand its Lifespan
12 Pcs & Up to 50,000 Hours
Minimum Autonomy
140 Hours
Waterproof
IP67 Completely Sealed
Latitude Range
55°S to 55°N
Solar panel
Mono-crystalline; 1.5Wp; Efficiency 20%
Lens Material and Colors
Polycarbonate and White, Red, Green, Amber
Weight / Dimension
0.9Kg / 166mm*166mm*166mm
Temperature Range
-40℃ to +80℃
Quality Assurance
ISO9001:2015 and CE
Typical Application
Related Products

Solar Buoy Light

3NM IALA DWS303



4NM Solar Marine Light

16 IALA Rhythms DWS503

7NM Solar Marine Light

256 IALA Rhythms DWS703

Company Profile

DOUBLEWISE engages in solar self-contained lights since 2001 and has become an energetic team in solar lighting,warning and alarm system:10 Chinese patents,18 years' experience and 9600 square meters facility.


  Our Mission:    To Charge ourselves in thought and technology,to light others!

  Our Vision:    To be the most reliable global provider of creative solar and LED products,services and solutions.

Drive quality into all we do;

Easy operation,Compact,Endless realiability and Durability; Details matter.

Certifications
FAQ
1.What is the difference of IP67 and IP68?

For LED Navigation Solar Marine Lights,IP67 is the same as IP68.There are three reasons as follows:

• IP means Ingress Protection.The international safety standard for IP is IEC60529.IP codes have the format IP××,where the ×× represent numerals from the coding scheme(see Table 1 and Table 2);
Numeral
Characterization of Ingress Limit
0 or X
Not evaluated
1
≥50.0 mm diameter object
2
≥12.5 mm diameter object
3
≥2.5 mm diameter object
4
≥1.0 mm diameter object
5
Dust-protected
6
Dust-tight
Table I.The first numeral in an IP code indicates the degree of protection from solid foreign objects.
Numeral
Characterization of Ingress Limit
0 or X
Not evaluated
1
Dripping water:vertical
2
Dripping water:15°tilt
3
Spraying water
4
Splashing water
5
Jetting water
6
Powerful jetting water
7
Temporary immersion
8
Continuous immersion
Table II.The second numeral in an IP code indicates the degree of protection from moisture.

• In all practical applications,it is impossible for a solar light to immerse under water for long time because it couldn't be charged in such case.So IP68 for solar lights is nonsense.

• No solar light can pass through the IP68 testing for sure,because it can't be charged for a long time under the water.The IP68 expression in a solar light only be speculation gimmicks and attempts to mislead users.

2. Under what circumstances DWS302 with a touch switchshould be chosen?

In order to ensure reliable waterproof,we strongly recommend you to choose DWS302 with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc..

3.Is there other installing adapter for DWS302TS?

Yes, there is an adapter as follows. The FlangeBase is designed to install adapters and can improve its moisture and heat insulation performance.

Packing & Delivery

Packing

The package of DWS302/TS  LED Navigation Solar Marine Light is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light   is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .


Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
