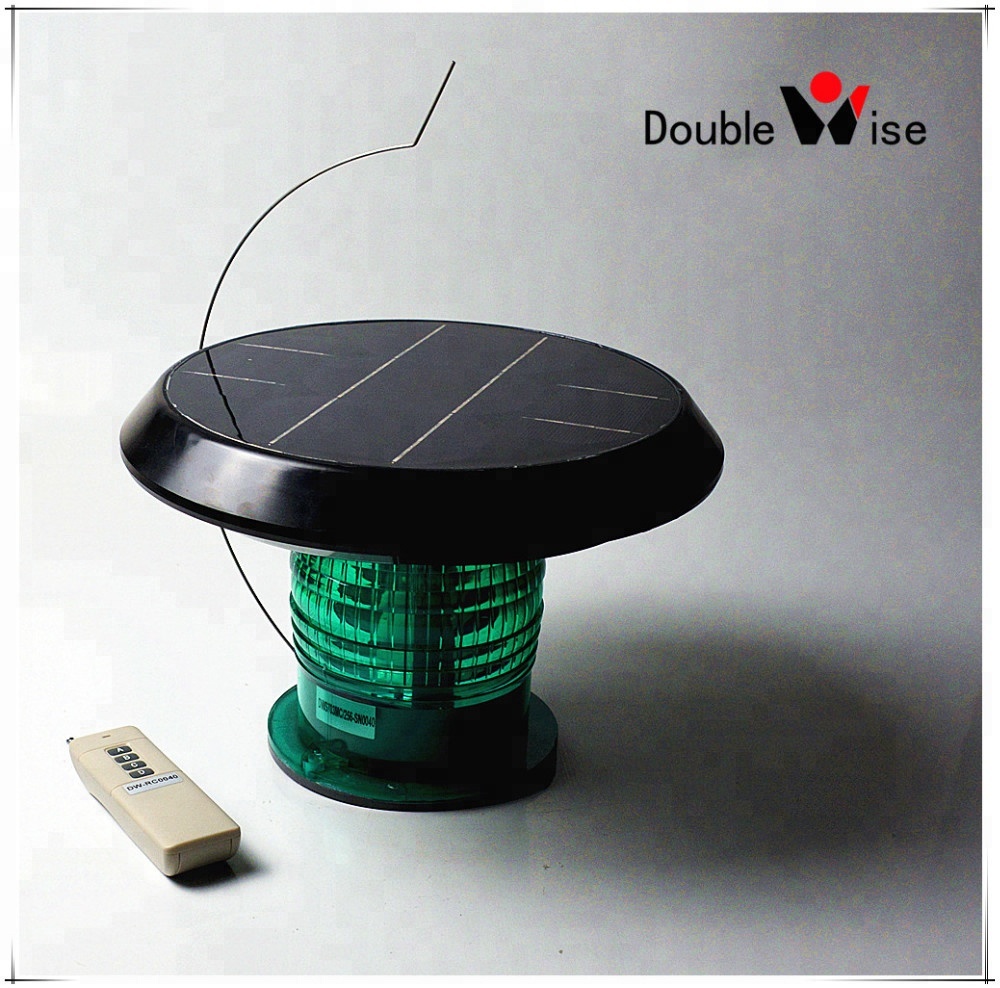

This Solar Forest-fire Prevention Reminder DWS604 is an Intelligent voice broadcast and alarm system that makes up of solar photovoltaic system, infrared detection, voice reminder and Led light etc. If necessary, it can also join the GPRS wireless transmission module in order to monitor the state of the system or the access of people.The product can be conveniently installed on the roadside.When the infrared detectors sense people's activities, it can play customized forest fire prevention slogans during the day and provide lighting for pedestrians at night.DWS604 installs in minutes and requires no maintenance up to five years.
Main Specifications | ||
Work Voltage | DC 7.4V | |
Detectors | 2 * Pyroelectric infrared detectors | |
Detecting Angle & Distance | ≥200°and 10m | |
Audio Format | MP3 | |
Storage Capacity | Built-in 128M Flash Card | |
Solar Panel & Lithium Battery | 7.2Wp & 7.4V/16AH | |
Light Source & Waterproof | LED & IP65 | |
Speaker Power | 3W | |
Control Strategy | Adaptive Control Algorithm | |
Sound | Voice reminding or Background Music | |
Shell Material & Weight | Polycarbonate (PC) & 3.5Kg | |
Patent & Quality Assurance | Chinese patents: 201320285.73.0 & ISO9001:2015 | |
Applications
Outdoor Lighting
• Yard
• Park
Special Lighting
• Mountain
• Pond
• Fence
Solar Guard
Solar Obstruction Light
Solar Tree
The installation of this Advanced Led all-in-onesolar yardlight is very easy.We recommend three installationmethods as follows.
Method 1: Process a straight pole on which a flange is connected, then fix the UFO lamp on the flange. The total height is about 2 meters to 3 meters.
Method 2: This installation method is suitable for dual-lamp applications. The lamp pole is a square tube of 60mm × 60mm, at the top with a symmetrical lamp arm which is connected a flange, then the UFO lamp is fixed on the flange. The total height is about 3~4 meters. Because the appearance looks like Libra, it also is called as a solar Libra lamp.
Method 3: In order to more quickly install and use the UFO lamp, a stainless adapter can be provided. When the installation condition is harsh, this simple installation method is a good choice.
As shown below, you may use the iron pipe,wood, bamboo or PVC pipe as a lamp pole and connect the pole and lamp with the adapter, then fix the pole in a place you want.
Method 1 Drawing
Mothod 1 Solar yard Light in Water
Method 2 Drawing
Method 2 4M Solar Libra Light
Method 3 Drawings
Method 3 Hill Lighting with a wooden Pole
Packing
The package of DWS604 is a 360*700*240mm carton that can be loaded with four lights.The total weight of one carton is12Kg after packing .
