Product Description

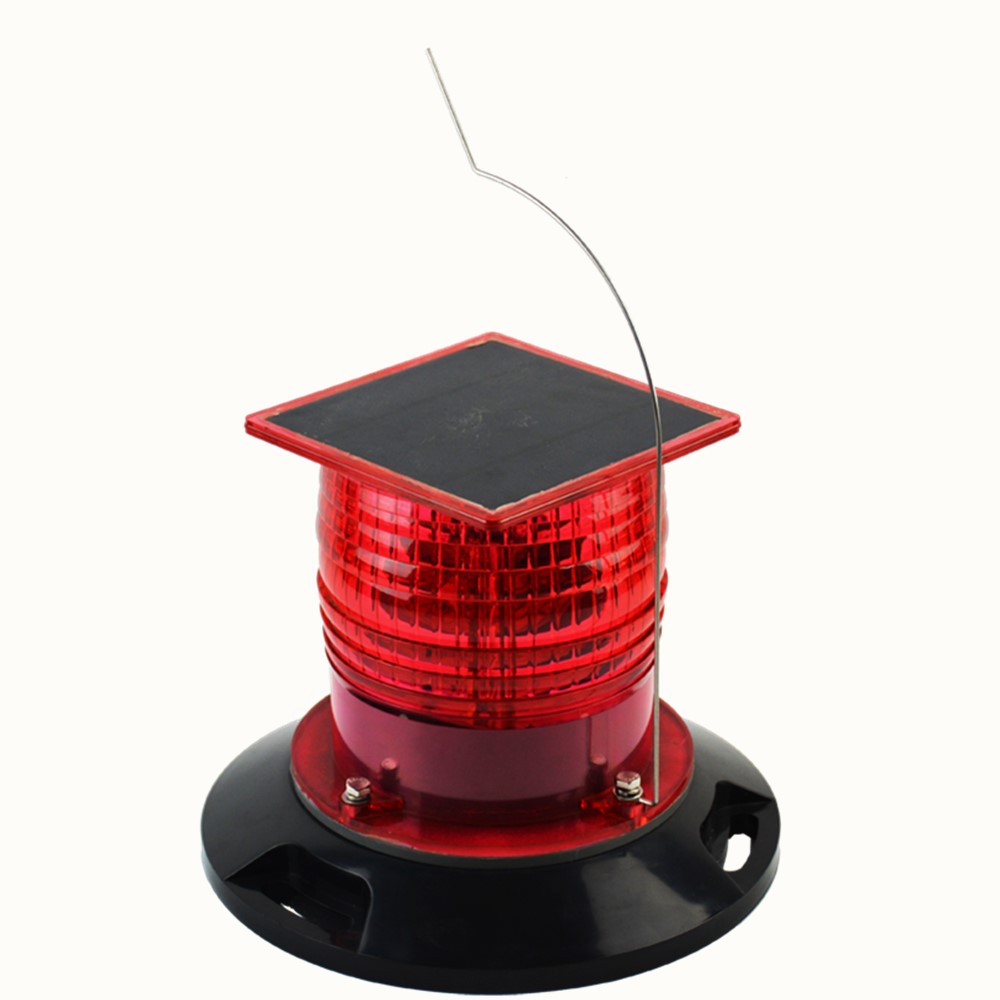

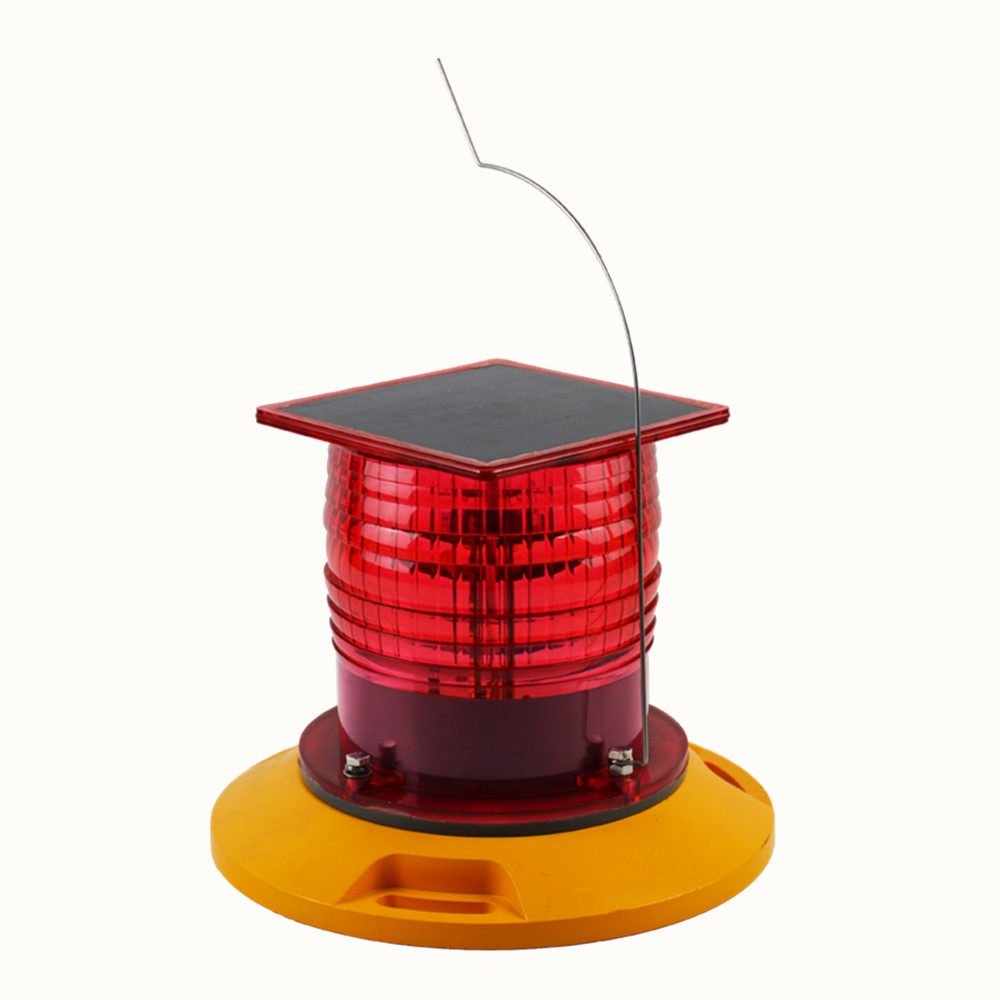

ICAO FAA Aviation Obstacle Warning Solar Powered Building Obstruction Light
Features and Benefits
Red,Steady-Burning and its intensity is more than 32cd.
Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.
Turns on at dusk and off at dawn automatically.
Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.
Cmpletely self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Specifications | |
Light Output | STEADY ON , Red, 360° |
Standards | ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k |
Intensity / Visibility | ≥32cd / 5Km |
Minimum Autonomy | 150 Hours |
LED | Numbers: 12Pcs Lifespan: up to 50,000 Hrs |
Environmental Conditions | Latitude Range: 55°S to 55°N On/Off Level: 60/100 Lux Temperature Range: -40℃ to +80℃ Waterproof: IP65 |
Solar panels | Mono-crystalline;Maximum Power 2.7Wp;Efficiency 16% |
Battery | Ni-Mh , Replaceable;4.8Ah/4.8V |
Lens Material | Polycarbonate |
Mounting Option | 4 bolts or Magnetic base |
Quality Assurance | QAS: ISO9001:2015 CE: CTR090817073E |
Patents | Chinese patents: ZL201430444455.3 Other patents pending |
Alarm output | Optional |
Typical Applications
● Iron Tower
● Crane
● Wind Power Generator
● High-Building
● Chimney
● Water or Cooling Tower
Related Products
Solar Mini Obstacle Light
DWS201A
Solar Obstacle Light
DWS301A
Solar Obstruction Light
Medium_intensity
DWS702
Our Company
Certifications
FAQ
Table 2 Specifications for Obstruction Lighting Equipment Classification | ||
Type | Description | |
L-810 | Steady-burning Red Obstruction Light | |
L-856 | High Intensity Flashing White Obstruction Light(40FPM) | |
L-857 | High Intensity Flashing White Obstruction Light(60FPM) | |
L-864 | Flashing Red Obstruction Light(20-40FPM) | |
L-865 | Medium Intensity Flashing White Obstruction Light(40-FPM) | |
L-866 | Medium Intensity Flashing White Obstruction Light(60-FPM) | |
L-864/L-865 | Dual: Flashing Red Obstruction Light(20-40FPM) and Medium Intensity Flashing White Obstruction Light(40FPM) | |
L-885 | Red Catenary 60 FPM | |
FPM=Flashes Per Minute | ||
1.What are characteristics of obstacle lights in the standards of ICAO and FAA?
According to ICAO Annex 14 Volume Ⅰ,the characteristics of low-intensity obstacle lights are as follows.
Light Type Color Signal Type/(flash rate) Peak Intensity(cd) Intensity(cd) at given angles +6° +10°
Low-intensity,Type A Red Fixed 10 Min. 10 Min. 10 Min.
(fixed obstacle)
Low-intensity,Type B Red Fixed 32 Min. 32 Min. 32 Min.
(fixed obstacle)
Low-intensity,Type C Yellow/Blue Flashing 40 Min.
(mobile obstacle) (60~90fpm) 400 Max.
Low-intensity,Type D Yellow Flashing 200 Min.
(Follow-me Vehicle) (60~90fpm) 400 Max.
The Specifications for Obstruction Lights in FAA AC 70/7460 -1k can be seen in the above Table 2.
2. Under what circumstances DWS501A with a touch switchshould be chosen?
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
3.Is there the adapter for easy-installation?
Yes, there is an adapter FlangeBase as follows.
Packing & Delivery
Packing
The package of DWS501A is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
