Product Description

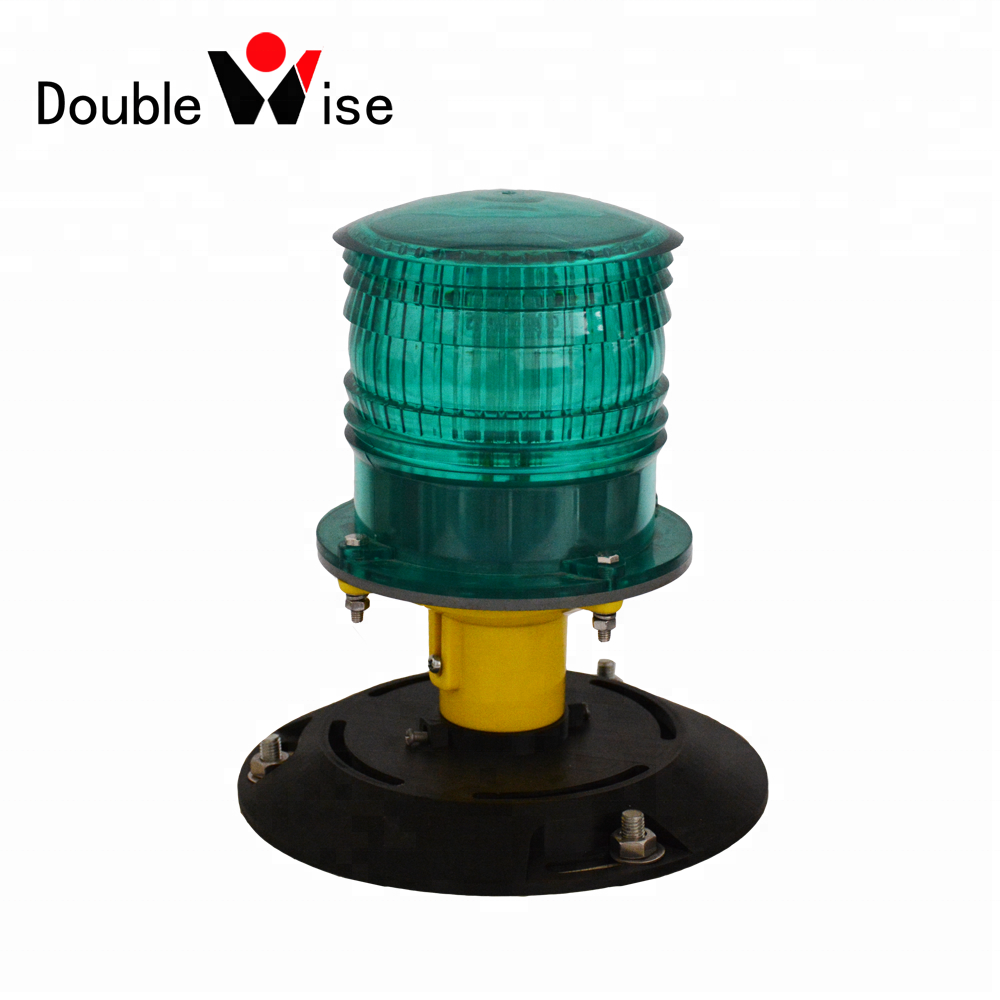

Doublewise ICAO Green Landing Lighting Solar powered Led Heliport Perimeter light
DWSAN301G is a wireless solar powered Helipad Heliport perimeter LED light that complies with ICAO Annex 14 Volume Ⅱ and FAA. It meets traditional helipad lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Helipad Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some helipads including USA, Brazil, Canada, Australia and China etc..
Features and Benefits
The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Available in Green, Yellow or White colors.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.
Lens is made from durable,anti-UV Bayer polycarbonate.
Manufactured to ISO9001:2015 QAS and certified CE,BV.
Product Parameters
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.Under what circumstances, the taxiway edge light is more suitable for the use of solar power?
Taxiway edge lights shall be fixed lights showing blue and the intensity of lights should bemore than 2cd at least 6° above the horizontal, so these are suitable for solar power supply due to the low power consumption.In particular,the solar taxiway edge light is the better choice in the following cases.
Taxiway edge lights shall be fixed lights showing blue and the intensity of lights should bemore than 2cd at least 6° above the horizontal, so these are suitable for solar power supply due to the low power consumption.In particular,the solar taxiway edge light is the better choice in the following cases.
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
2.Can the remote control be achieved in the Airport Towerfor solar perimeter lights?
Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller in the Airport Tower.
3.Is there the Installing Adaptor complied with IACO?
Yes, there is the FlangeBase as follows.
Packing & Delivery
Packing
The package of DWSAN301G is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
