Product Description

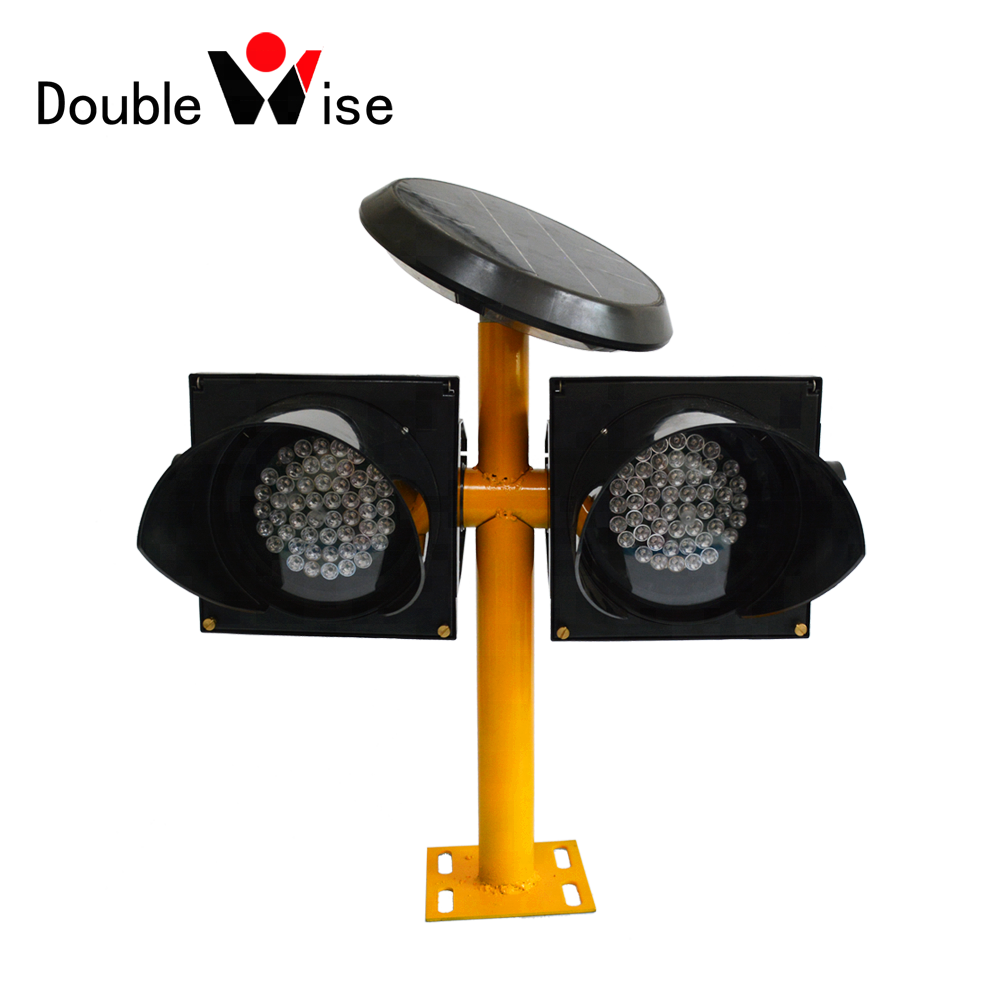

Doublewise Wireless LED Solar Elevated Runway Guard Light for airport helipad heliport lighting

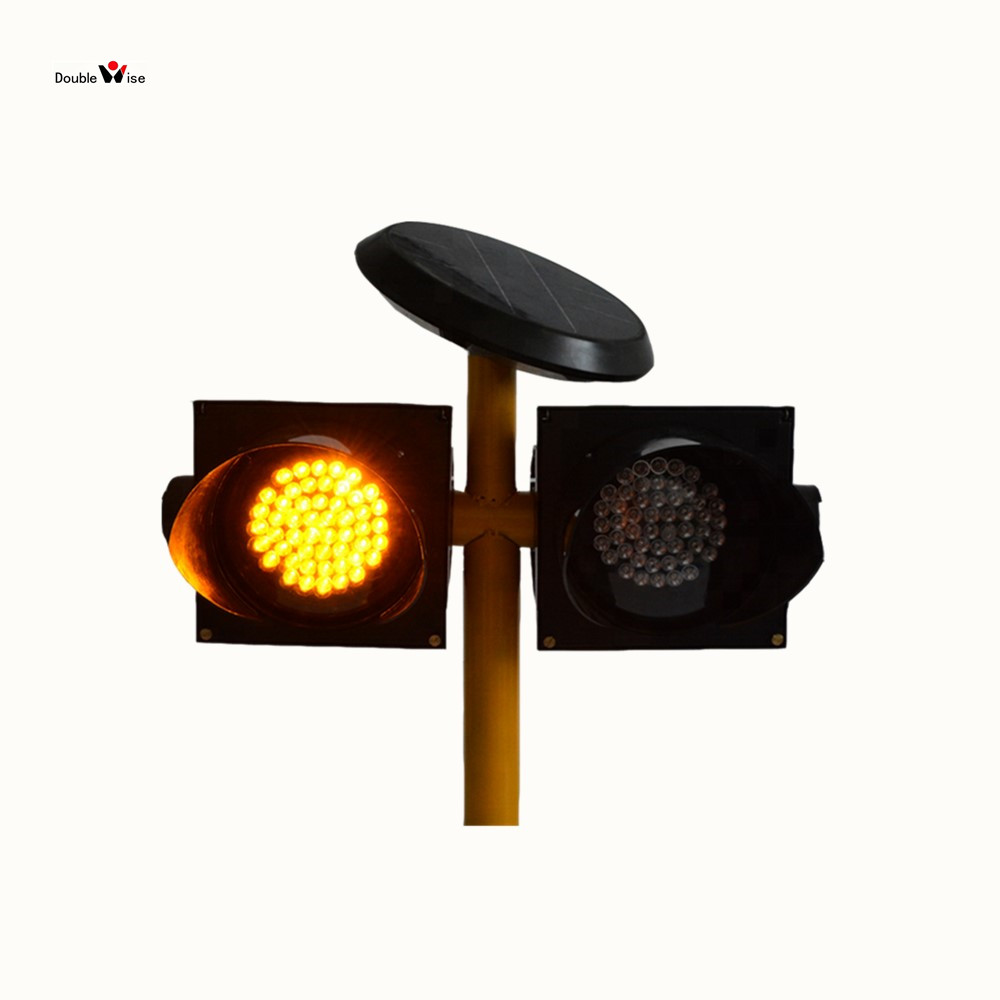

The solar Elevated Runway Guard Light(ERGL) DWSA608 is a pair of unidirectional, yellow, alternately flashing lights that provides a distinctive warning to pilots and drivers of vehicles that they are operating on taxiways and are about to enter an active runway.DWSA608 is compliant to ICAO Annex 14,Volume I and FAA 150/5345-46.It can be installed easily without trenching and cabling.
Features and Benefits
Providesunidirectional marking with 45~50 alternating yellow flashes per minuteat the hold position of taxiway and runway intersections.
The two ERGL light sources are surrounded by a black face plate and independent visors to reduce the amount of incident sunlight.
Typically installed in a pair,with one on either side of the taxiway holding position.
3-step intensity adjustment by a remote controller.
High-efficiency mono-crystalline solar panel and long-lasting Lithium battery.
The minimum autonomy or operational period without charging is more than 120Hrs.
Manufactured by ISO 9001:2015.
Product Parameters
Main Specifications | ||||||
Light Output | 180°, Yellow, alternately flashing | |||||
Intensity Adjustment | Adjustable Low/Medium/High | |||||
Light Source | Visible high-power Led | |||||
Minimum Autonomy | High-intensity: 45hrs ; Medium-intensity: 70hrs ; Low-intensity: 120hrs | |||||
Latitude Range | 55°S to 55°N | |||||
On/Off Level | 60/100 Lux | |||||
Lifespan of LEDS | up to 50,000 Hours | |||||
Solar panel | Mono-crystalline;Maximum Power 7.2Wp;Efficiency 20% | |||||
Battery | Lithium, replaceable;16Ah/7.2V | |||||
Lens Material | Polycarbonate with Anti-UV | |||||
Mounting Option | 4 bolts | |||||
Weight / Waterproof | 6kg / IP65 | |||||
Temperature Range | -40℃ to +80℃ | |||||
Quality Assurance | ISO9001:2015 | |||||
Patents | Chinese patent: 201320285073.0 | |||||
Typical Applications
Product Selection
Our Company
Certifications
FAQ
1.What are benefits of the Solar Airport Lighting?
In general,the solar airport lighting is the better choice in the following cases:
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
In general,the solar airport lighting is the better choice in the following cases:
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
• No High Voltage | • No Isolation Transformers | • No Base Cans |
• No cabling | • No Cable Conduits | • No Grounding |
• No CCRS | • No Vault | • No Bulbs |
• No Glass Lens |
2. Why choose DOUBLEWISE Solar Airport Lights?
•Low Cost
•Low Maintenance
•Advanced Technology
•Complete Compliance
•Easy Installation and Operatio
•Flexible Movement and Deployment
3.Can the remote control be achieved in the Airport Tower for solar navigation lights?
Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless control terminal.
Packing & Delivery
Packing
The package of DWSAN608 is a 540*360*200mm carton for one light.
The weight of one light is 6Kg after packing.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
