- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC 7.2V
- Lamp Power(W):
- 12
- Lamp Luminous Flux(lm):
- 1400
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 85
- Color Temperature(CCT):
- 2000 to 6000
- Beam Angle(°):
- 15°
- IP Rating:
- IP65
- Certification:
- BV
- Emitting Color:
- white,green
- Lamp Body Material:
- PC
- Base Type:
- Polycarbonate
- Light Source:
- LED
- Place of Origin:
- Shaanxi, China
- Brand Name:
- DOUBLEWISE
- Application:
- Airport, Heliport
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 35X35X25 cm
- Single gross weight:
- 6.0 kg
- Package Type:
- One Carton: 1 light Carton size: 350*350*250mm Total weight: 4Kg
- Lead Time:
Quantity(Piece) 1 - 2 >2 Est. Time(days) 15 To be negotiated
ICAO Airport Airfield Identification Lighting Solar Powered Led Aerodrome Beacon
Medium Intensity Aviation Obstruction Solar Power LED Aircraft Warning Lights

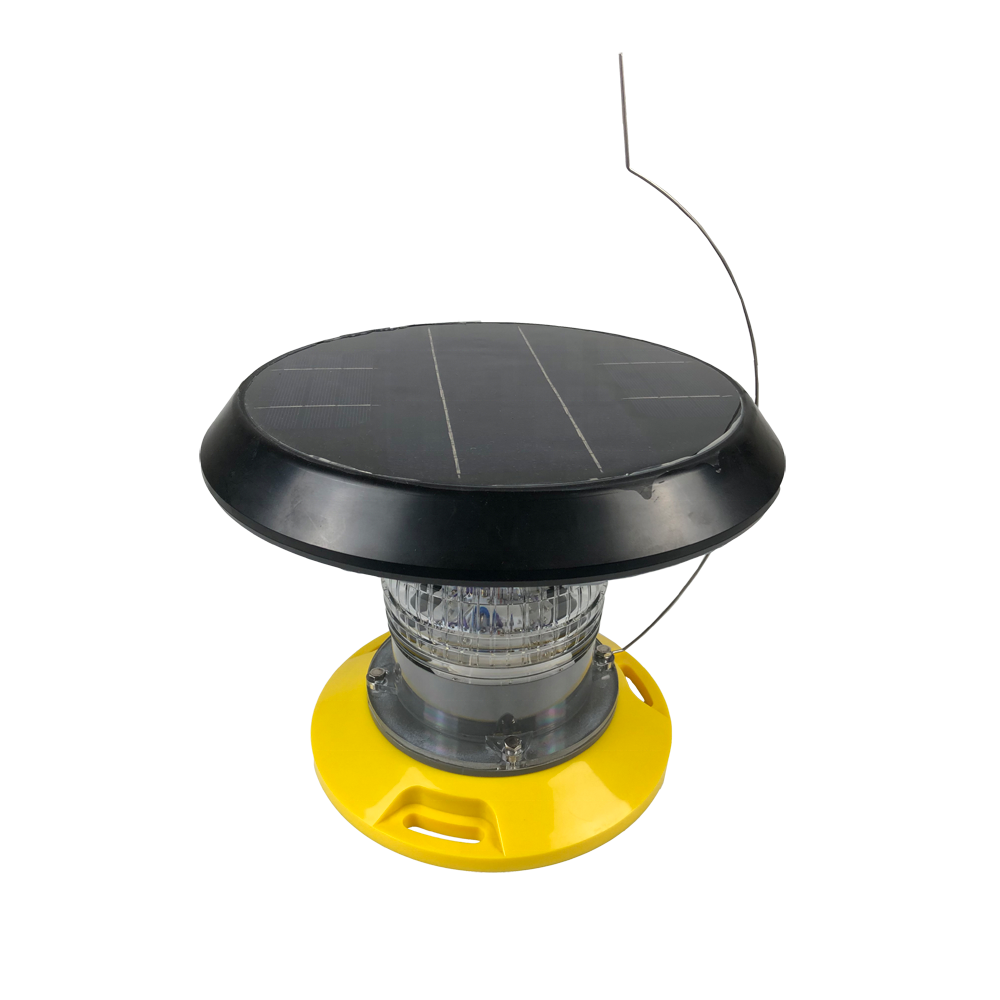

The DWSAN702 is an ICAO Airport Aeronautical Identification Lighting Solar Powered Led Aerodrome Beacon which meets FAA/ICAO standards. The self-contained design makes it concision, reliability, durability and easy-operation.
Features and Benefits
ICAO/FAA flashing patterns and medium-intensity
Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.
Light Output : 360 ° or Any Sector.
Turns on at dusk and off at dawn automatically or by a remote controller.
Completely self-contained and waterproof IP65.
To Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.
Lens is poly-carbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS .
SPECIFICATIONS | |||
Light output | Flashing | ||
Peak Intensity (360°average)
| White | 2000cd±500cd | |
Visibility | 18km | ||
Horizontal Output | 360° | ||
Vertical Divergence | ±7.5° at 50% intensity | ||
Operation | |||
Minimum Autonomy | more than 200Hours | ||
Latitude Range | 55°S to 55°N | ||
On/Off Level | 60/100 Lux | ||
Lifespan of LEDS | up to 100,000 Hours | ||
Details of solar panels | |||
Type | mono-crystalline | ||
Maximum Power | 7.2Watts | ||
Efficiency | 20% | ||
Details of storage batteries | |||
Type | Llithium battery , replaceable | ||
Capacity | 7.2V16AH | ||
Construction | |||
Lens material | Polycarbonate | ||
Colored Lens Option | Red, green, blue, amber, or white | ||
Mounting Option | 4 bolts or Magnetic base | ||
Weight | 3.4kg | ||
Environmental and Electrical | |||
Temperature Range | -40℃ to +80℃ | ||
Waterproof | IP65 | ||
Quality control and Patents | |||
Quality Assurance | ISO9001:2015 |
- Airport
- Heliport
- Aerodrome
- Helipad
Yes,there is the FlangeBase as follows. In order to better heat insulation and waterproof,we recommend to use it.
Packaging
The package of DWSAN702 aircraft warning lights is 350*350*250mm carton that can be loaded with one light.The weight of one light is 6Kg after packing .
