Home > Products > Doublewise Aerodrome Airstrip Solar Runway Light
Doublewise Aerodrome Airstrip Solar Runway Light
Click on the image to view the original image
Product： views：4Doublewise Aerodrome Airstrip Solar Runway Light
Branch： Doublewise
Type： Aviation Obstruction Lights
Size： 36X18X18 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
4.8
Lamp Power(W):
1
Lamp Luminous Flux(lm):
120
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
85
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE
Emitting Color:
Warm White
Lamp Body Material:
PC
Light Source:
LED
Place of Origin:
China
Brand Name:
Doublewise
Application:
Airfield, Heilipad,Airstrip
Color:
White, White/Yellow

Packaging & Delivery

Selling Units:
Single item
Single package size:
36X18X18 cm
Single gross weight:
3.0 kg
Package Type:
A 570*380*200 carton that can be loaded with 6 lights.Each light has a small carton 360*180*180.The weight of one lightis 3Kg after packing,so the gross weight of 6 lights is 18Kg
Lead Time:
Quantity(Set)1 - 8>8
Est. Time(days)15To be negotiated
Video Description
Product Description

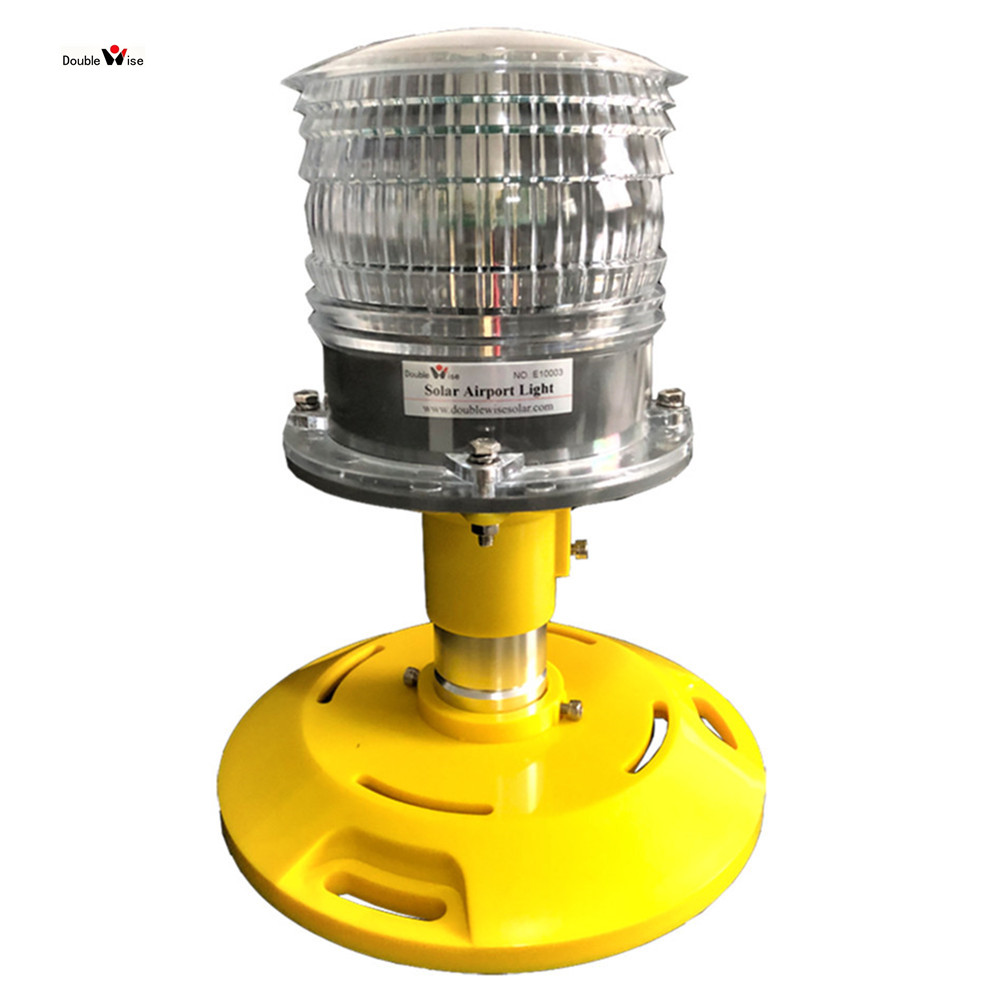

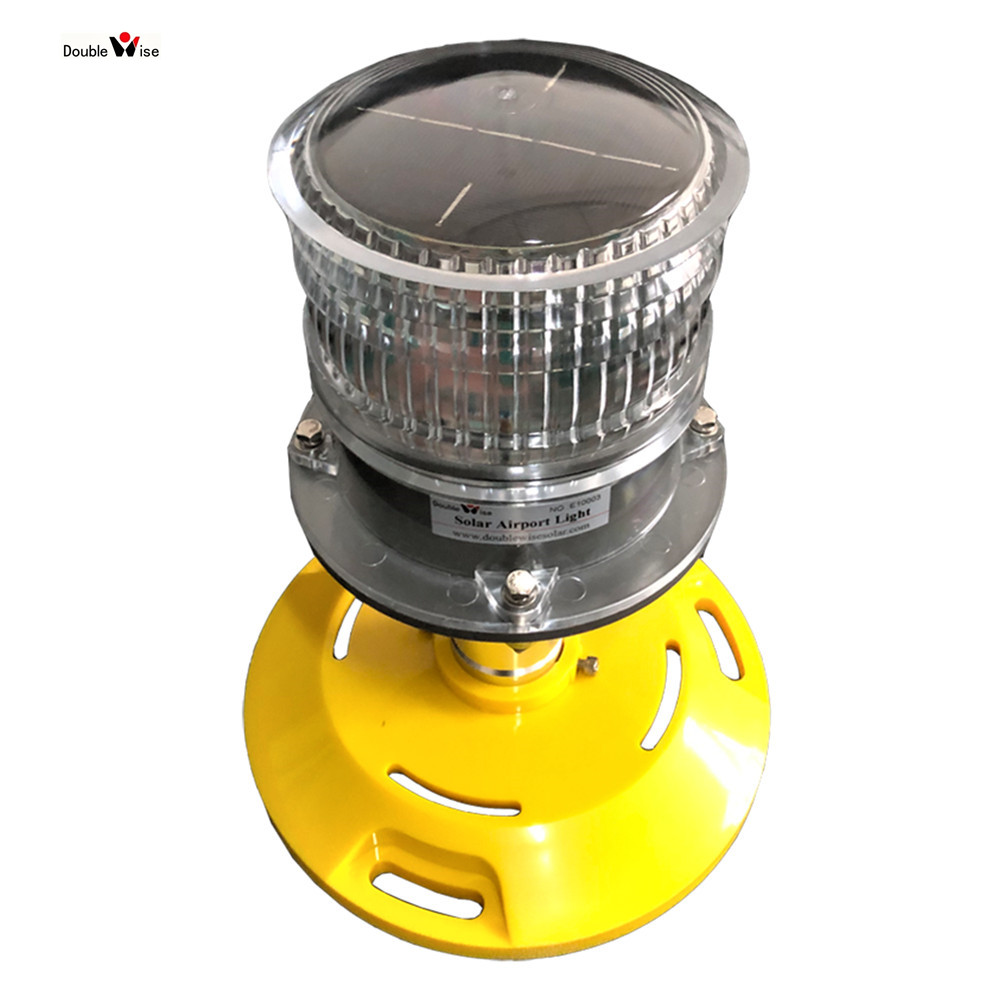

Doublewise Aerodrome Airstrip Solar Runway Light

DWSAN605S is a wireless solar runway edge light that complies with ICAO Annex 14 Volume Ⅰand FAA. It meets traditional airfield lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Airfield Ground Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some airfields including USA, Brazil, Pakistan, Maldives, Canada, Australia and China etc..

Features and Benefits


The Wireless Remote Controller can provides on-demand operations from up to 1Km away.


Color in 180° white +180° yellow ,180° Red +180° Green or 180° white +180° white.


3-step intensity adjustment.


High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.


Lens is made from durable, anti-UV Bayer® polycarbonate.


Manufactured to ISO9001:2015 QAS and certified CE.

Specification

Main Specifications
Light Output
360°, STEADY ON
Intensity Adjustment
Adjustable Low/Medium/High
Colors
Runway Edge: White /Yellow ,or White/White
Runway Threshold: Red/Green
Light Source
Visible high-power Led and NVG compatible infrared LED
Minimum Autonomy
100/60/30 Hours at Low/Medium/High Intensity
Lifespan of LEDS
up to 50,000 Hours
Solar panel
Mono-crystalline;Maximum Power 1.5Wp;Efficiency 20%
Battery
Ni-Mh, replaceable;5Ah/4.8V
Lens Material
Polycarbonate
Patent
Chinese patent: 200830018497.5
Quality Assurance
ISO9001:2015
Typical Applications
Product Selection
View All Products...
Our Company
More Information...
Certifications
FAQ

1. What are benefits of the Solar Airport Lighting?

In general,the solar airport lighting is the better choice in the following cases:

•Airfields that are not needed to fly at night every day;

•Airstrips not easily connected the electrical cable or without electricity;

•Airport renovation or temporary airports.

There are many benefits of Solar Airport Lighting System as follows:

• No High Voltage
• No Isolation Transformers
• No Base Cans
• No cabling
• No Cable Conduits
• No Grounding
• No CCRS
• No Vault
• No Bulbs
• No Glass Lens
2. Why choose DOUBLEWISE Solar Airport Lights?

•Low Cost
•Low Maintenance
•Advanced Technology
•Complete Compliance
•Easy Installation and Operatio
•Flexible Movement and Deployment

3.Can the remote control be achieved in the Airport Tower for solar navigation lights?

Yes, these lights can be controlled to turn on/off and adjust the intensity by a wireless control terminal.

4.Is there the Fragile Pole complied with IACO?



 Yes,there is the fragile pole and complies with IACO Annex 14,Volume I as follows.

Packing & Delivery

Packaging
The package of Doublewise solar airfield runway edge light is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The gross weight of each light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg.



Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
