- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 4.8
- Lamp Power(W):
- 1
- Lamp Luminous Flux(lm):
- 120
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 85
- Color Temperature(CCT):
- Warm White
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE
- Emitting Color:
- White, Yellow
- Lamp Body Material:
- PC
- Light Source:
- LED
- Place of Origin:
- Shaanxi, China
- Brand Name:
- Doublewise
- Color:
- White/Yellow,Red/Green,White/White
- Application:
- Runway Edge, Runway Threshold , Airstrip
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 36X28X17 cm
- Single gross weight:
- 3.0 kg
- Package Type:
- Solar runway light: One Carton: 540*360*210 for six lights, 9KG
- Lead Time:
Quantity(Set) 1 - 8 >8 Est. Time(days) 15 To be negotiated

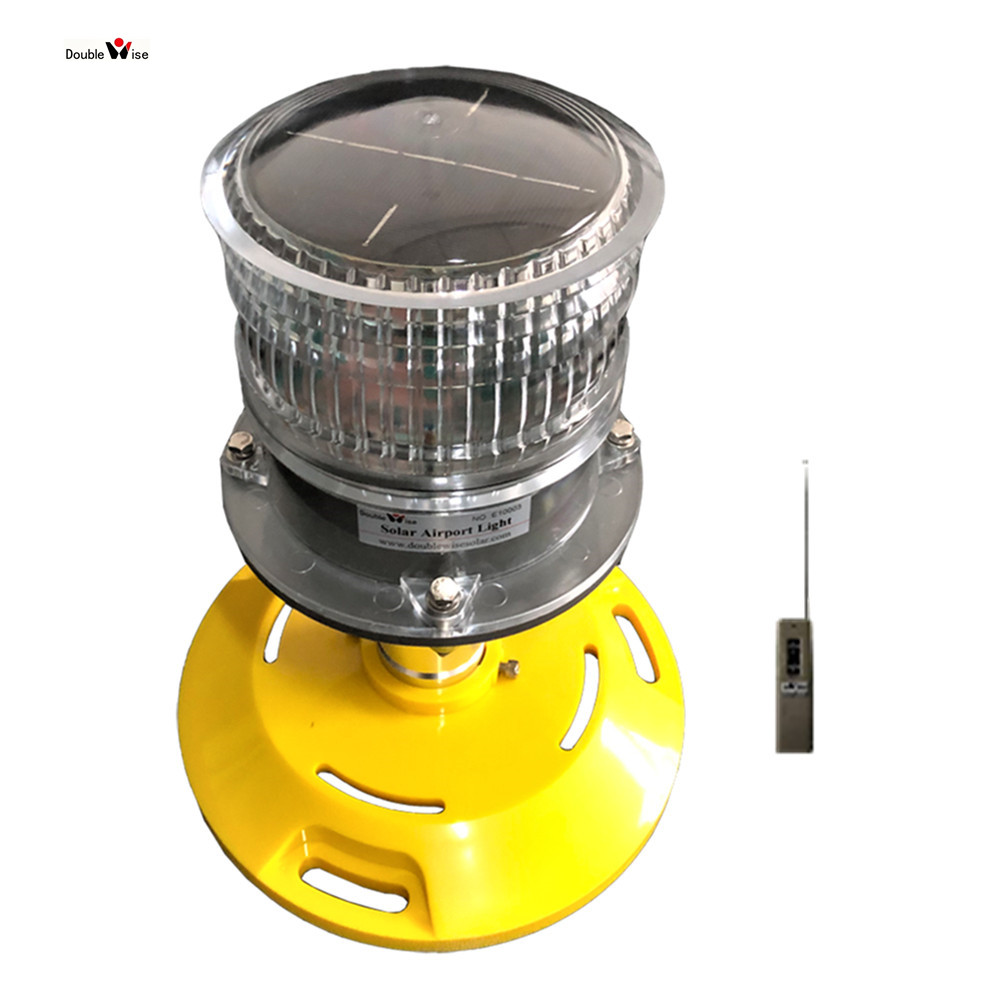

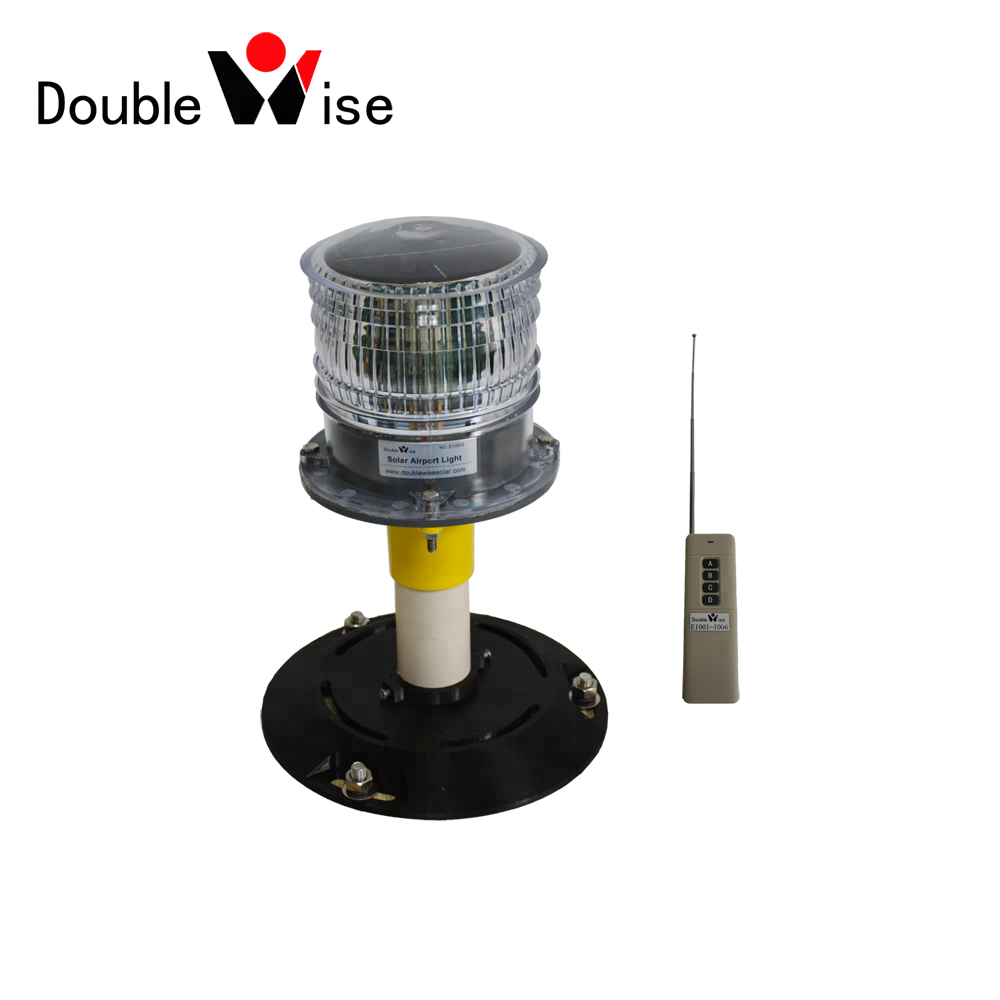

DWSAN605S is a wireless solar runway edge light that complies with ICAO Annex 14 Volume Ⅰand FAA. It meets traditional airfield lighting in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of self-contained, durable and anti-UV, it can be suitably used for Airfield Ground Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some airfields including USA, Brazil, Pakistan, Maldives, Canada, Australia and China etc..
Features and Benefits
The Wireless Remote Controller can provides on-demand operations from up to 1Km away.
Color in 180° white +180° yellow ,180° Red +180° Green or 180° white +180° white.
3-step intensity adjustment.
High-efficiency mono-crystalline solar panel and long-lasting Ni-Mh battery.
Lens is made from durable, anti-UV Bayer® polycarbonate.
Manufactured to ISO9001:2015 QAS and certified CE.
Main Specifications | |||||
Light Output | 360°,STEADY ON | ||||
Intensity Adjustment | Adjustable Low/Medium/High | ||||
Colors | Runway Edge:White /Yellow ,or White/White Runway Threshold: Red/Green | ||||
Light Source | Visible high-power Led and NVG compatible infrared LED | ||||
Minimum Autonomy | 100/60/30 Hours at Low/Medium/High Intensity | ||||
Lifespan of LEDS | up to 50,000 Hours | ||||
Solar panel | Mono-crystalline;Maximum Power 1.5Wp;Efficiency 20% | ||||
Battery | Ni-Mh, replaceable;5Ah/4.8V | ||||
Lens Material | Polycarbonate | ||||
Patent | Chinese patent: 200830018497.5 | ||||
Quality Assurance | ISO9001:2015 |
In general,the solar airport lighting is the better choice in the following cases:
•Airfields that are not needed to fly at night every day;
•Airstrips not easily connected the electrical cable or without electricity;
•Airport renovation or temporary airports.
There are many benefits of Solar Airport Lighting System as follows:
Yes,there is the fragile pole and complies with IACO Annex 14,Volume I as follows.
Packing
The package of DWSAN605S is a 540*360*210mm carton for six light, 9KG.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
