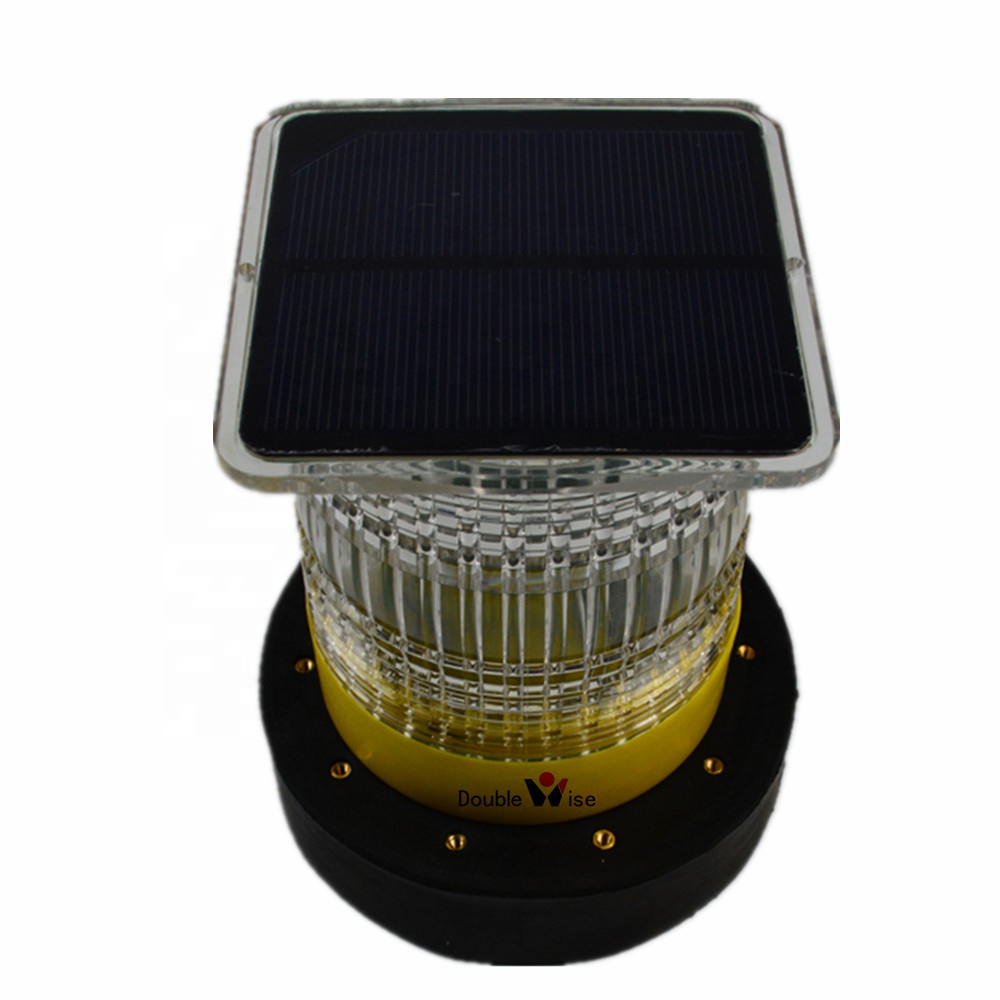

DWS201TC is a solar marine lantern with three colors (112.5° Red + 112.5°Green + 135°White = 360°) specially designed for the safety of small boat navigation such as yachts and fishing boats. Its function complies with COLREGS(1972) and equals to the combination of a port light, a starboard light and a stern light. It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.
Product Description
Fishing Boats and Yachts Signal Solar Tricolor Navigation Light with a Magnetic Base
Features and Benefits
Steady-on and its visibility: 2NM.
Solar panel 1.1Wp, replaceable Ni-HM battery 2.4Ah/2.4V.
Combined colors: 112.5°Red + 112.5°Green + 135°White=360°
Turns on at dusk and off at dawn automatically.
Completely self-contained and waterproof IP67.
To Charge under nearly all weather conditions and Autonomy up to 100 hours.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS.
Product Parameters
SPECIFICATIONS | |
Light Output | Steady-on, 360° =White 135°+ Red 112.5°+ Green 112.5° |
Visibility | 2NM |
Minimum Autonomy | 100 Hours |
Latitude Range | 40°S to 40°N |
Solar panel | Mono-crystalline；Maximum Power 1.1Wp；Efficiency 20% |
Battery | Ni-Mh , replaceable；2.4Ah/2.4V |
Lens Material | Polycarbonate |
Mounting Option | Magnetic base |
Weight / Waterproof | 0.5kg/IP65 |
Temperature Range | -40℃ to +80℃ |
QAS | ISO 9001:2015 |
Typical Applications
Yacht
Dimension Drawings
Related Products
Our Company
Certifications
FAQ
1.Where is the solar Tri-color light used?
The solar tri-color light is specially designed for the navigation safety of small boats such yachts and fishing boats.In order to install easily,this marine navigation lantern combines the function of the port light(112.5°Red),the starboard light (112.5°Green)and the stern light(135°White).
2. Can this lantern easily be turned off when it isn’t used for a long period?
Yes, you can easily turn off this light.
We also suggest that you turn off it when it isn’t used for a long time.So itis only charged during the day and discharged at night.
The solar tri-color light is specially designed for the navigation safety of small boats such yachts and fishing boats.In order to install easily,this marine navigation lantern combines the function of the port light(112.5°Red),the starboard light (112.5°Green)and the stern light(135°White).
2. Can this lantern easily be turned off when it isn’t used for a long period?
Yes, you can easily turn off this light.

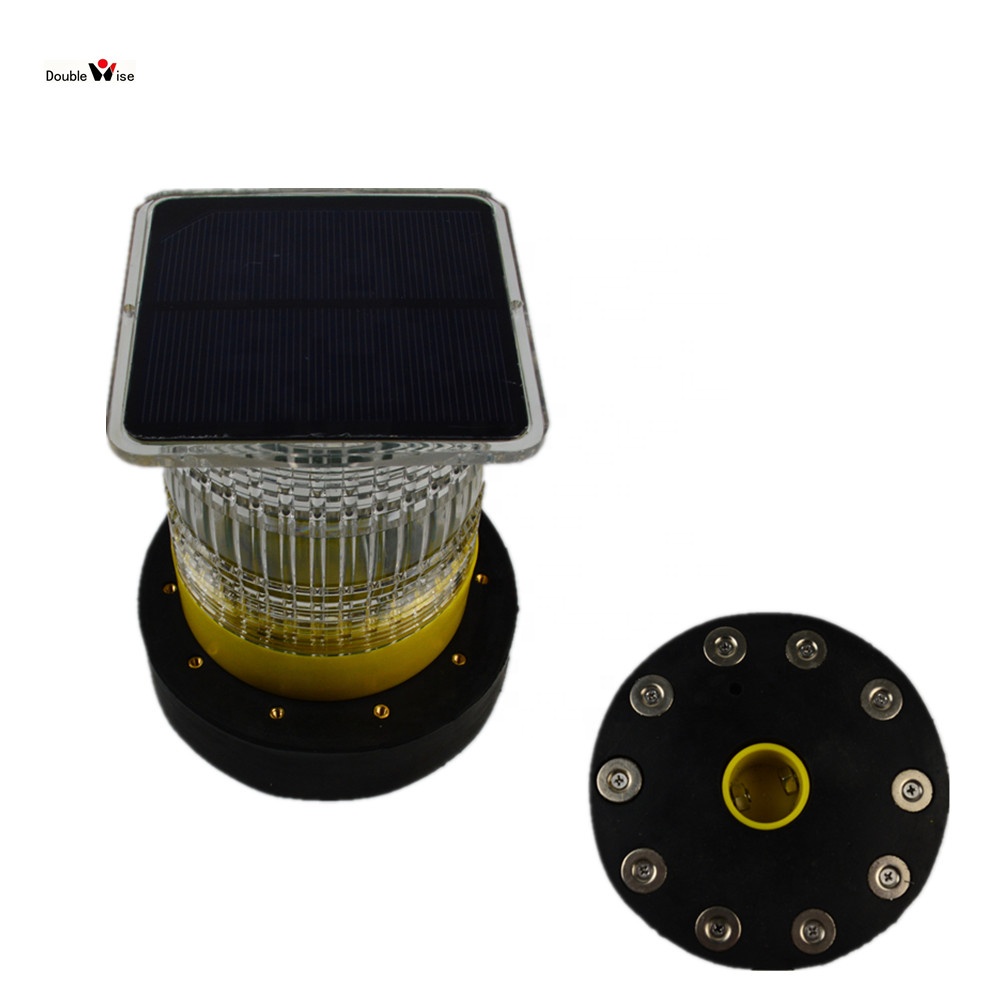

The On/Off switch hides in a hole of its bottom shown as the following picture. Press the On/Off button once with a stick or screwdriver, the state of the light will be changed from ON to OFF, or from OFF to ON. If you want to see the change of turning ON/OFF in day, the top of the light should tightly be covered with a cloth.
We also suggest that you turn off it when it isn’t used for a long time.So itis only charged during the day and discharged at night.
Packing & Delivery
Packing
The package of DWS201TC is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
