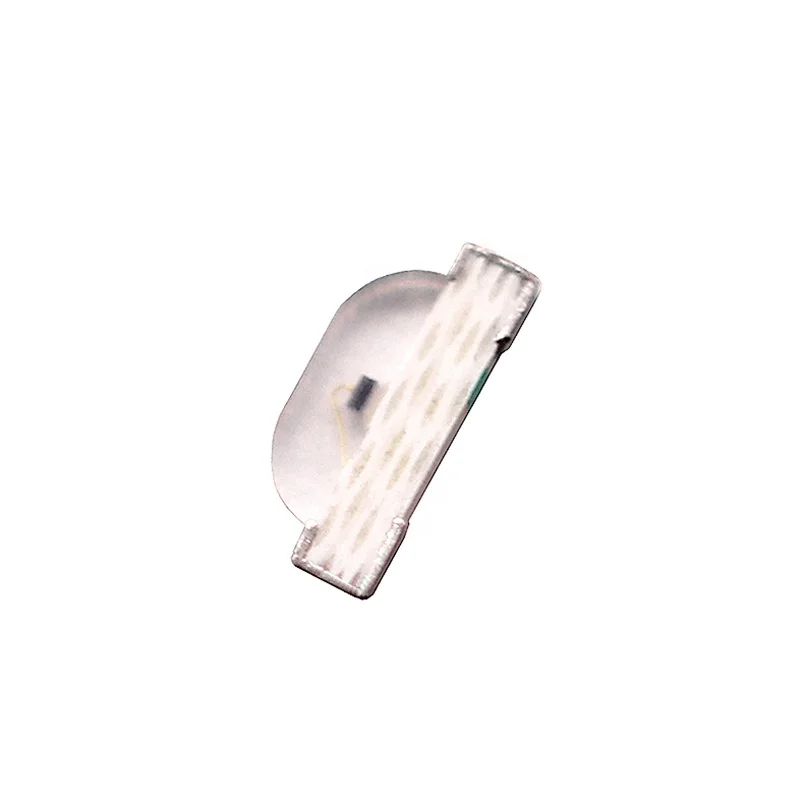

Ekinglux 1206 Reverse Mount RGB SMD LED | ||
Brand Name | EKINGLUX | |
Model Number | E6CC1205RGBC3UDA | |
Forward voltage | 1.9-2.4/2.9-3.4/2.9-3.4V | |
Luminous Intensity | 70-150/400-800/70-150 mcd | |
Power | 0.06W | |
Wavelength | 616-630/515-535/460-475 nm | |
Size(L*W*H) | 3.2*1.3*1.1 mm | |
Emitting Color | Red/Green/Blue | |
0602 side view smd led
0802 side view smd led
1204 side view rgb smd led
0805 smd led
1206 dome lens smd led
0606 rgb smd led
2835 white smd led
3535 white high power smd led
5050 rgbw smd led
3mm infrared led
5mm led

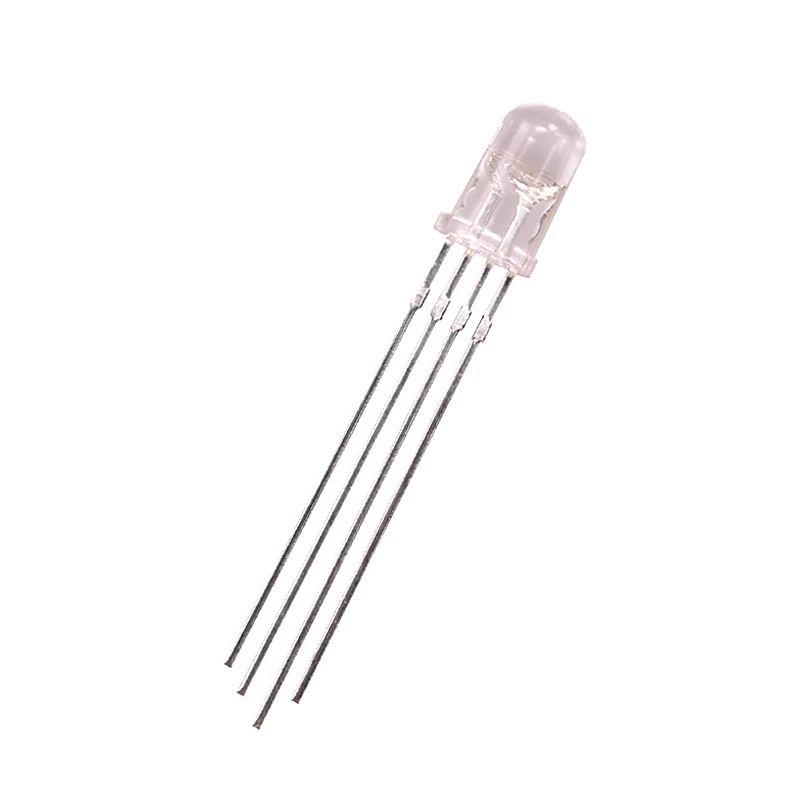

5mm rgb led
EKINGLUX was founded in Shenzhen Longgang in May 2003 .We mainly specializes in the R & D, production and sales of Chip LED、Top LED, such as 0603, 0805, 1206. Due to the business,we established "EKINGLUX Optoelectronics Technology(Shanghai) Co.,Ltd" in Shanghai early 2014 ,which is mainly responsible for the business and services in East china as well as export.
Our factory is more than 5,000 square meters, over 3,600 square meters are used for production. We owns automatic led production lines with most advanced equipment. We also have a high-level team: all of them have more than ten years experience of engineering and technical in LED industry. In 2013 we passed ISO9001-2008 Quality Control System . The next year October EKINGLUX won the authorized by the State Intellectual Property Office of eight utility model patents (0807 scintillation RGB, 1206 ball head and so on) .Superior quality and best technology is our promise.
