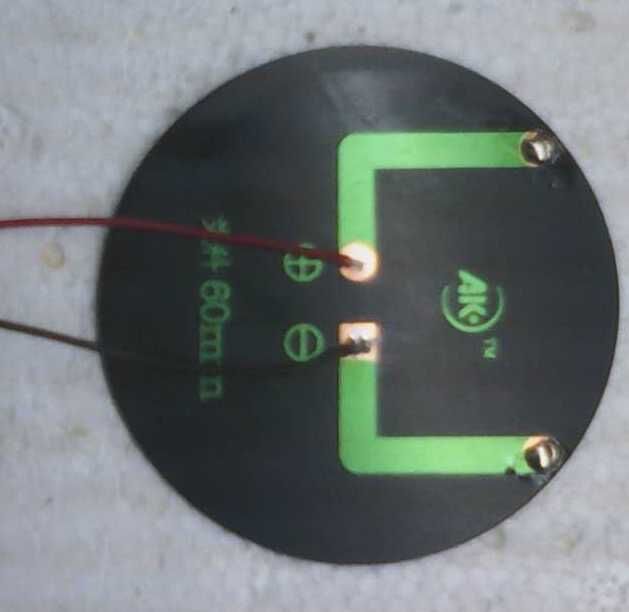

photovoltaic mini PET laminated PV round solar panel
round solar panel spec:
Feature:
1. Small solar cell panel
2. Epoxy resin sealing
3. Inside: Dia 106mm
4. Output: 4.5v/ 200mA
5. Custom design
Electrical Characteristics
| Item No. | XRE-106mm-4.5v200mA |
| Optimum Operating Voltage (Vmp) | 4.5V |
| Optimum Operating Current (Imp) | 0.2A |
| Open Circuit Voltage (Voc) | 5V |
| Short Circuit Current (Isc) | 0.25A |
| Maximum Power at STC (Pmax) | 0.9W |
STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;
Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%
Mechanical Characteristics
Solar Cell | Poly-crystalline silicon solar cell |
| No. of Cells | 9pcs |
| Dimensions | Dia 106mm |
| Weight | 300g |
Q1:Are you trading company or manuafctuer?
A1:We are manufacturer of solar panel and solar lamps
Q2:Where is your main market?
A2:Many country in Europe,Africa and America,all country in Asia and Australia
Q3:What is the quality level of your product?
A3:We produce good quality,refuse to produce low quality
Q4:Can you make customer’s brand?
A4:Yes,customer’s brand and customized design could be made on the basis of quantity of each item up to our MOQ
Q5:Can you accept small order?
A5:Yes,acceptable
Freely contact us for further information
