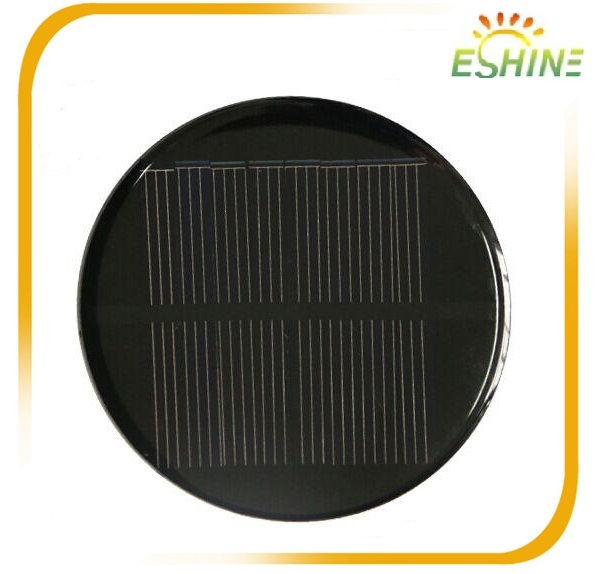

Top quality small panel power for home use
Panel Power Solar Tech Paraments:
| Model No.: | ES0.08-P |
| Cell Type: | Polycrystalline |
| Cell Efficiency: | 17.50% |
| Product Structure: | Epoxy Resin + Cell + PCB |
| Power Tolerance: | 3% |
| Max Output Power (Wmp): | 0.08W |
| Max Power Voltage (Vmp): | 1.0V |
| Max Power Current (Imp): | 80mA |
| Open Circuit Voltage (Voc) | 1.2V |
| Short Circuit Current (Isc): | 88mA |
| Size: | 30mm |
| Size Tolerance: | -0.3mm |
| Life Span: | 1-2 years |
| Warranty: | 3 months |
| Testing Conditions (STC): | Irradiance 1000W/M2, Temperature 25°, AM 1.5 |
Material of PET Solar Panel:
- PET Film
- EVA adhesive film
- Solar Cells
- EVA adhesive film
- PCB Board

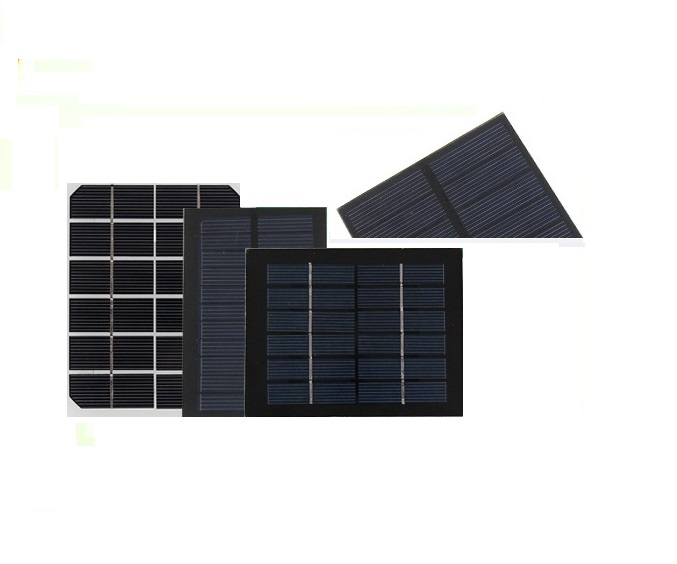

Panel Power Solar Other Products:
Q1. Are you factory?
A1:Yes,we are professional solar panel factory which is located in NINGBO City,Zhejiang
province China. And we have 10 years manufacturing experience.All our clients, We are warmly welcome to visit us!
Q2.What"s the delivery time?
A2: 5-7days for samples, 7-10 days for mass production.But depend on your order quantity
Q3.What"s your payment term?
A3: We accept pay by T/T, Western Union and PayPal.
Q4. Can you do OEM?
A4: Yes, We can.
Q5. Do you accept custom design on size?
A5: Yes, if the size is reasonable.
Q6. What kind of solar cell does it have?
A6: Poly crystalline and Mono crystalline . From 0.1W to 330W.
