- Place of Origin:
- Guangdong, China
- Brand Name:
- OEM/ODM/EVEN
- Bulb Type:
- LED
- Battery Type:
- Ni-CD/Ni-MH/Li-ion
- Material:
- Plastic
- Usage:
- Camping
- Certification:
- CE/RoHs/FCC
- Specifications:
- 2 X 10w
- Input voltage:
- 110~240V,50-60Hz
- Emergency duration:
- 1/2/3hrs
- Operation temperature:
- -20°c to 60°c
- Emergency Brightness:
- Total Power
- LED Indicator:
- Included
- LED Application:
- LED Tube/Downlight/Panel/Flood Light
- Test Device:
- Included
- Battery Pack Size:
- 10 * C 3.5Ah Ni-CD Battery
- Inverter Size:
- 155*40*30mm
- Housed Box:
- Inculded
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 0.9 kg
- Package Type:
- led emergency conversion kit Export Insulated Package

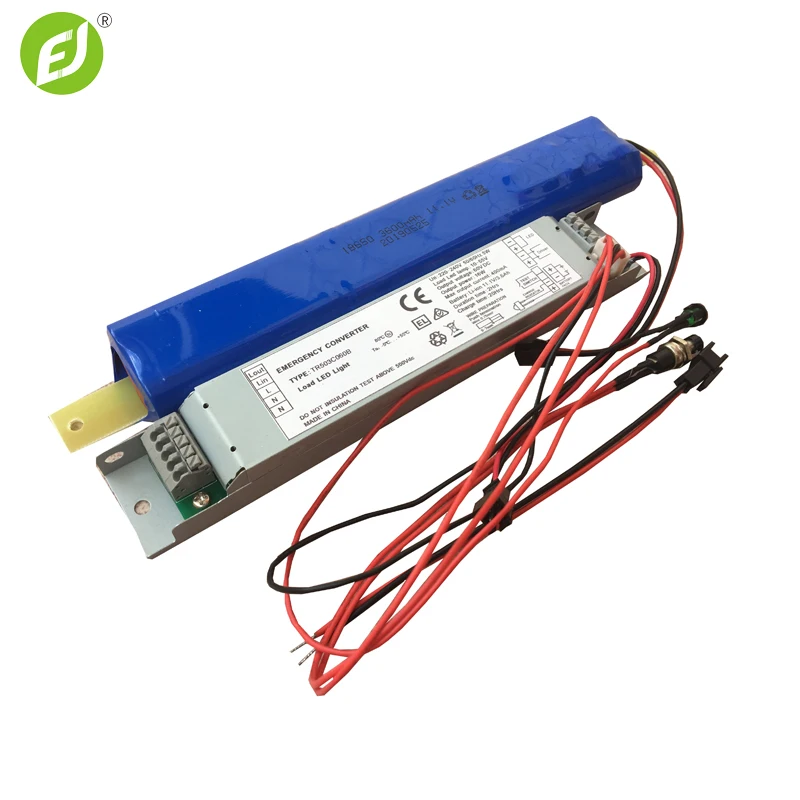

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 8 To be negotiated
Emergency Conversion Kit For LED Down Lamp/Emergency Conversion Kit power pack for Emergency Lamps
EVEN show one type emergency pack datasheet for your reference,if need more,pls contact us.
Description
The emergency module including emergency inverter and rechargeable battery, Inverter automatically enable battery backup system to light on the lighting in less than 0.1 second during power off. Green led indicator indicates battery charging and healthy status. Push test switch to stimulator main power off. The converter automatically adjusts the output LED current and keeps Fixed Voltage output to provide the best match between the battery and the load, emergency output power is same as the normal power supply.
Features
- IC controlled Dual rate Charger for energy savings.
- Short circuit protection at battery terminals.
- Battery reverse protection functionality
- Charge indicator and test button. The light fittings guarantee safety of people in buildings open to the general public.
- Automatically actuated in the event of power cuts, these devices (kit + light fitting) offer a good luminous flux to facilitate the evacuation.
- Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.
- Full emergency output ,Dial the code to suitable current of luminaires.
| Model No. | EME-EL |
| Product Name | EVEN IP65 Emergency Backup Inverter DC Emergency Inverter Device For LED Downlight 1-3 Hours Backup Time |
| Battery Type | Ni-CD/Ni-MH/18650 Li-ion Battery |
| Lighting Power | LED Light With external driver |
| Emergency Power | 2-70W |
| Input voltage | AC85~265V, 50/60Hz |
| Battery protection | Yes |
| Operation temperature | -20--70℃ , 65+20% RH |
| Highest Surface Temperature | 50°C |
| Battery Capacity | 2000mAh Ni-CD Rechargeable battery pack |
| Charging Time | >24h without break |
| Emergency Output | Custom |
| Suitable light source | Suit for indoor light/outdoor light |
| Emergency power | 10-100% |
| Emergency duration | 1-3hours |
| Inverter dimension | 179*30*21mm(New type)/155*31*24mm(Old type) |
| Outer casing size | 200*100*52mm (Custom) |
| Note | Custom battery pack according to different backup time and and the brightness when emergency |
Shenzhen EVEN Technology Co., Ltd is the leading battery manufacturer in China, who focus on emergency Lighting Kit,LiFePO4, Li-polymer, Li-ion, NI-MH, and NI-CD rechargeable batteries, our products passed by UL, CE, ROHS and FCC certifications.
Our company has 9 years experienced in R&D about battery in mainland and 6 years export to overseas.
In our factories, which span a total of 5000m2, we can turn out over 3,000,00Ah monthly production capacity. With professional R&D team, experienced workers and advanced equipments, we are determined to provide you high-quality battery.
EVEN has development,manufacture,selling and service department as a whole.
We own our complete production techniques and superior testing device.What we make emergency pack has its practicability and easy to install.Our IC control circuit board use from import,which make sure that use more security,higher efficiency,more energy conservation and environment protection,longer life and other more advantages.So it is popular to selling in Europe,United Kingdom,Chile,Hongkong,Asia and others countries and regions.The emergency pack from EVEN both use normal commercial power and emergency power,it will be quick and automatic when it switches.
Our batteries are widely used in electronic products which include handheld device, medical equipment, GPS, electric bicycle , emergency lighting, duplicate reading battery machine , miner"s lamp, two-ways radio , outside advertising board, UPS, solar energy system, auto starting system ect.
We take humanistic management as our concept, regarding people as the most important factor in our development.We pay attention to safety & environmental protection and take the responsibility of the society. With great passion and faithfulness, we are willing to provide our customers perfect service and striding forward with you to create a bright future.
Let EVEN shows our new design type emergency inverter with 4 years warranty for your reference.If need it,
pls feel free to contact with us at any time.
