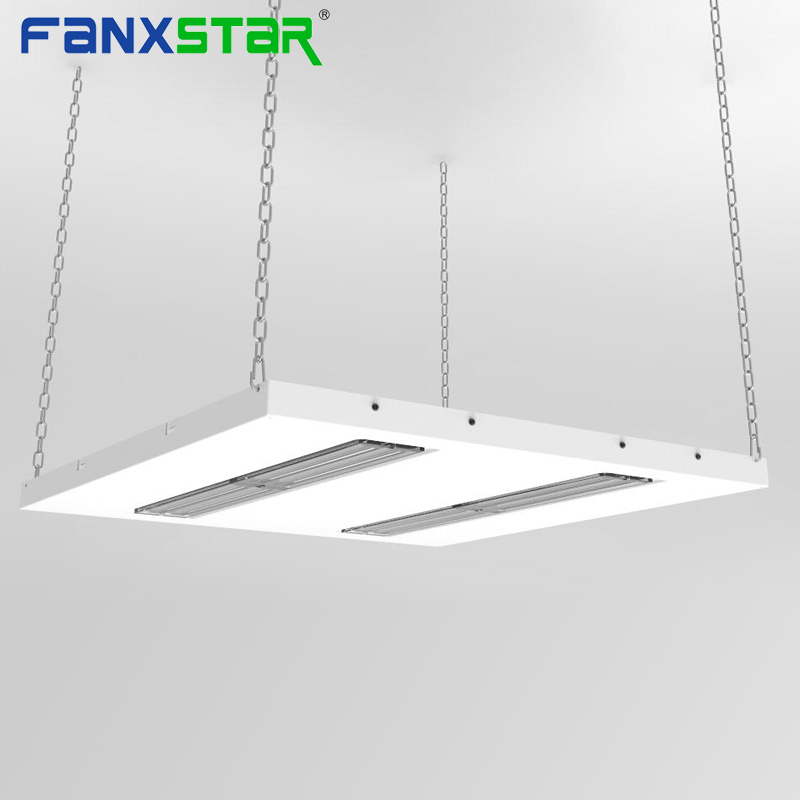

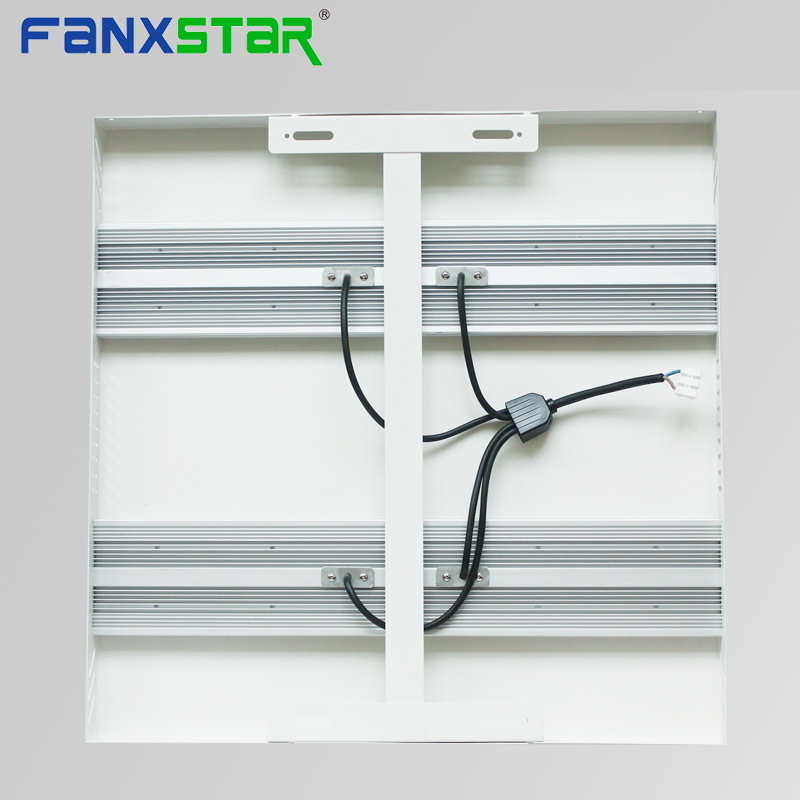

shenzhen CE ROHS approved 60cm*60cm 100watt led light panel
specification
| Item No. | PB-A1-80 | PB-A1-100 | PB-A1-150 | PB-A1-180 |
| Power | 80W | 100W | 150W | 180W |
| Luminous Efficiency | 120LM/w | 110LM/w | 110LM/w | 110LM/w |
| Led Chips | SMD2835 SAMSUNG | |||
| Product Size(L*W*H) | 595*595*40mm | |||
| Beam Angle | 60°/45°/25° | |||
| Operating Temperature | -40℃ ~ +70℃ | |||
| Ta max 80℃ | L80 B20 > 50000 Hours | |||
| Ta max 60℃ | 65000 Hours | |||
| Certificition | CE RoHS/EMC/LVD | |||
| IP Grade | IP65 | |||
| Mounting | Ceiling/suspension mount | |||
product details
Advantages
1.IP65 protection and luminous flux range from 10,000 to 20,000 lumens.
2.60degree/45degree/25degree for optional.
3.Specifically desiged for industrial appliction to ensure a quick return of investment even with limited hours of us.
4.High efficiency up to 110lm/W,energy saving and accelerates payback of production plants.
5. High quality Acrylic lens(PMMA) design to maintain the richness of the lighting.
6.Easy replacements and maintenance of all components to save time and cost of installation.
7.Long Lifespan 50000 hours, 5 Years Warranty.
8.Frosted lens enchances visual comfort by gentle diffusion of the lighting.
Application
1.Metro station, train station, bus station
2.Airport, factory and warehouse, free workshop
3.Exhibition lighting or home illumination
4.Lighting projects, kitchen, banks, hotels, schools, offices, hospital,
5.Bookstores, gymnasium, supermarket and public places etc.
Company information
FAQ
Q1. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample order will needs 3-5 working days, mass order will needs 7-15 working days for reference.
Q3. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to delivery.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shippment.
Q6. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend to you or we can discuss the solution including re-call according to real situation.
