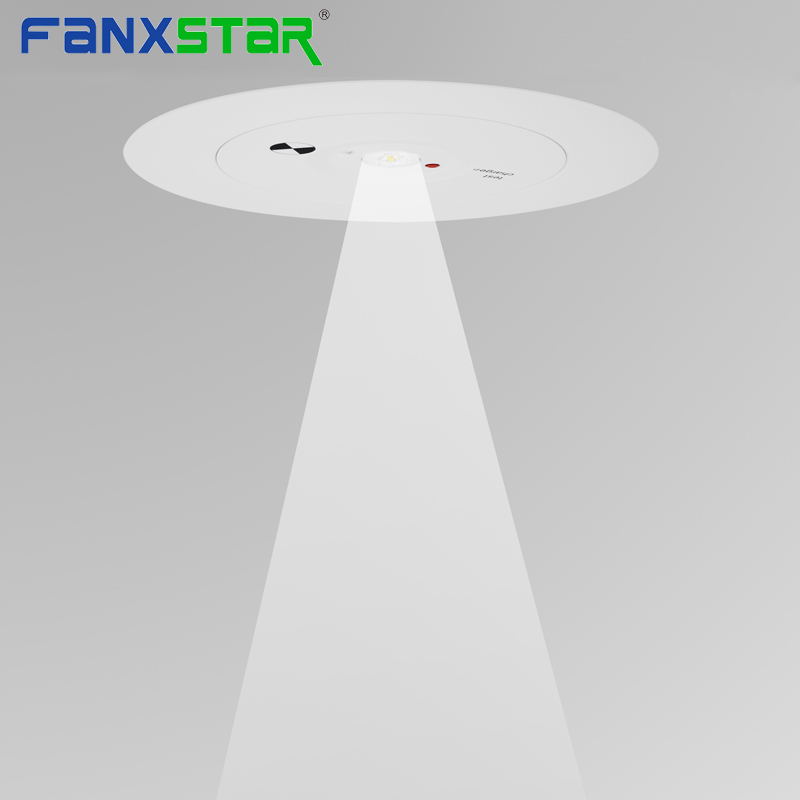

new model 220v-240v emergency led spot light
key Features
CREE LED CHIP with good quality lens .
LED luminous efficiency :95lm/W
Total 3W.
Normal use and emergency use both perfect.
4inch or 6 inch for interchangeable.

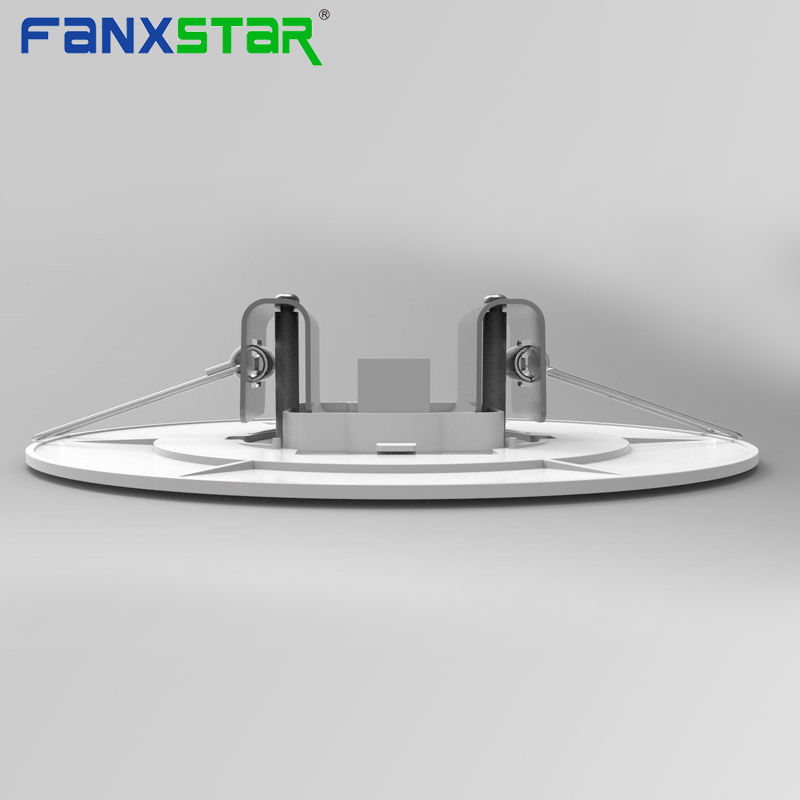

Innovative,snap-together design for fast and easy installation
Efficienct driver circuit - led rechargeable emergency light
Light up 180 mins of emergency battery power .
Long-life,maintenance-free,rechargeable Lithium battery
Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination.
Over charged and Over discharged protection.
CRI> 80
Color redenring : 2700-7000K for your option
Life span: 50000hours
Guarantee: 3 years.
Replaces :Emergency lighting fitting /led rechargeable emergency light
Application : Emergency Exit & Stand alone;
Emergency Lights for all indoor areas.
Notes : This led emergency spot light use 3W Cree led chip as light resource . Recessed mount installation.4inch OR 6 inch for option. At least 3 hours battery backup.
goods details
Data Sheet
| ITEM NO. | VOLTAGE | POWER | LED CHIPS | DIMENSION | COLOR TEMPERATURE | LUMINOUS FLUX | CRI | Beam Angle | IP Grade | |
| Xlite A1-3W | AC220-240V | 3W | Cree | Dimension | D95*H34mm (Inner ring) | 2700-6500K | 280lm±5% | 80 | 80° | IP54 |
| D145*H34mm (Outer ring) | ||||||||||
| Cuting hole | ø70mm | |||||||||
| Product name: Recessed mount led rechargeable emergency light 3w 4inch cut out 70mm with battery power supplier for indoor emergency lighting |
| Product size: Ø95*34mm OR Ø145*34mm Cut out size : Ø70mm |
| Duration: 3hours |
| Light source: 3W CREE LED |
| Operation: Non-maintained |
| Power source: 220-240VAC~50/60Hz(Customized:100-127VAC~50/60Hz) |
| Recharge period: 24hours |
| Color Temperature: 2700-7000K for your option. |
| LED lifetime: >50,000 Hrs |
| Battery: LiFePO4 3.2v 2000mAh |
| Test: M3 push on button/ATS(Customized) |
| Indicators: Φ3 LED Green:charge and power,Yellow:Error |
| Working temperature: 0°C~40°C |
| Average lifetime without any errors: >5,000 Hrs |
| IP Rating: IP20 |
| Suited for: Indoor |
| Package: a inner box for per piece. |
