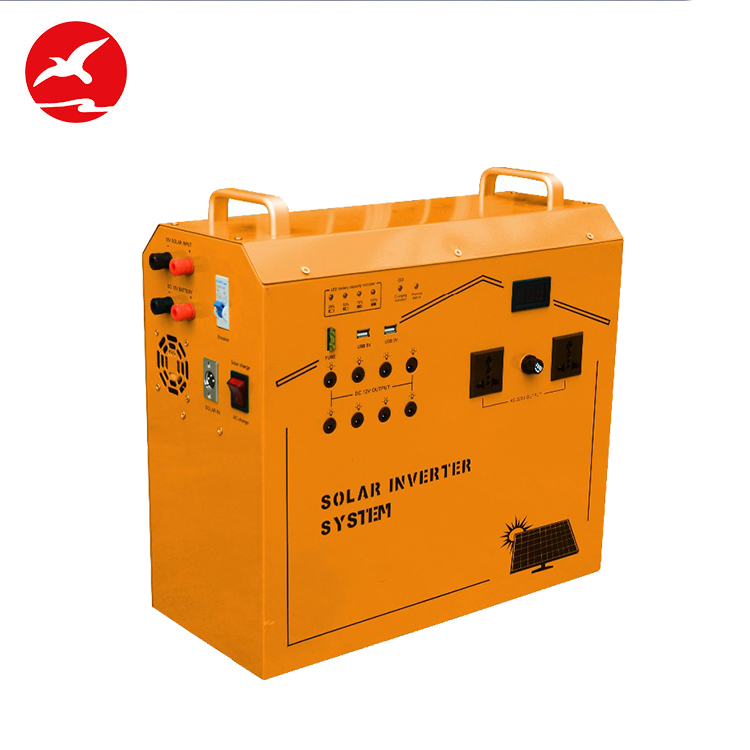

High quality green energy 220V load charging solar power systems
Click on the image to view the original image
Product: views:2High quality green energy 220V load charging solar power systems
Branch: FLYING
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:56
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FLYING
Model Number:
FL-FS004
Specification:
Normal
Application:
Home
Output Voltage (V):
DC 12V/USB 5V/AC 220V
Load Power (W):
300W
Work Time (h):
40
Product name:
High quality green energy 220V load charging solar power systems
Solar panel:
≤200W, 18V(no-load21.5V)
Charging time:
Depends on recharge method
Recharging time:
Depends on loading power
Guard circuit:
Burn the fuse
Rated charging current:
<20A
Rated discharge current:
5A
No-load loss:
<50mA
Boost voltage:
15V
Working temperature:
-10℃ ~ 55℃
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Port
zhongshan / shenzhen

High quality green energy 220V load charging solar power systems



Product Description

Product Parameter

Model FL-FS004

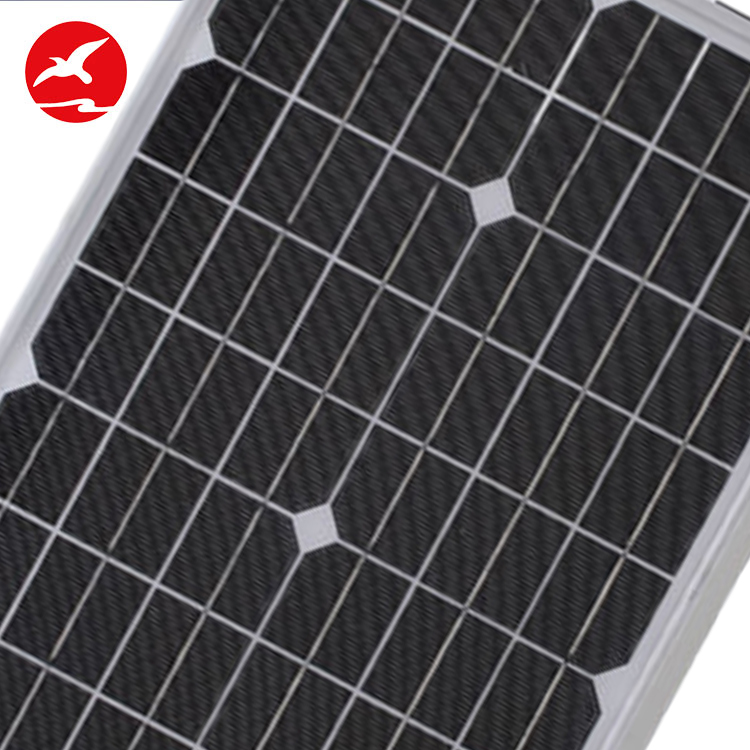

Solar panel≤200W , 18V (no-load 21.5V)
InverterDC12V-AC220V  ,  300W Pure sine(or modify sine)  , 50Hz
Output voltDC12V * 2 output ports  , Max output current : 5A;
USB 5V  1A * 2 output ports;
AC 220V*1 output ports , Max output current : 1A;
Internal battery12V55AH  , lead-acid battery
Charging timeDepends on recharge method
Recharging timeDepends on loading power
Rated charging current<20A
Rated discharge current5A
No-load loss <50mA
Boost voltage15V
System volt12V
Overvoltage14.4V
undervoltage11.6V
Control moderecharge;  PWM(pulse width modulation)
Working temperature-10~55
Overload/short circuit protection10ms  Responsse
Guard circuitOverload/short circuit protectionBurn the fuse
Click here for more information!
Packaging & Shipping



Company Information
FAQ

Q1. What advantages does your solar power system have?

A: Solar energy is a locally available renewable and free resource. Electricity produced by PV system is clean and silent. What’s more, the government has up to 40% allowance.

Q2. What factors is related to generated energy of solar power system?

A: in addition to efficiency, another key point is the sunshine. The longer Sunshine time, the more generated energy. it is related to the intensity of sunshine as well, it is less in the morning and at night, more at noon; It is more in Summer and Autumn, less in Winter and Spring.

Q3. What factors will influence the efficiency of solar power system?

A: Components efficiency of the system, weather,direction of the system, the installing angle, etc
