High quality energy saving 18V solar power system for home use
Product Description
Product Parameter
| Model | FL-FS004 | ||

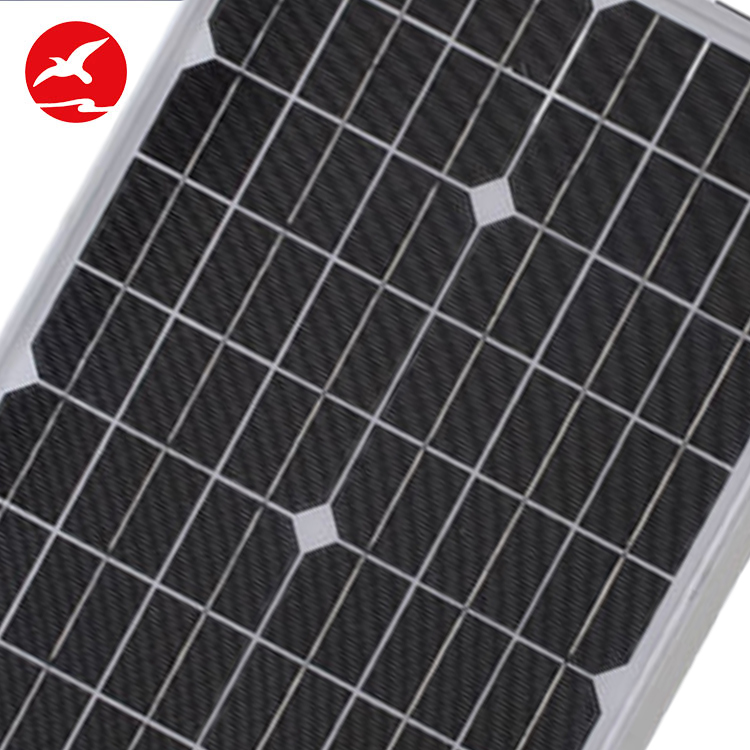

| Solar panel | ≤200W , 18V (no-load 21.5V) | ||
| Inverter | DC12V-AC220V , 300W Pure sine(or modify sine) , 50Hz | ||

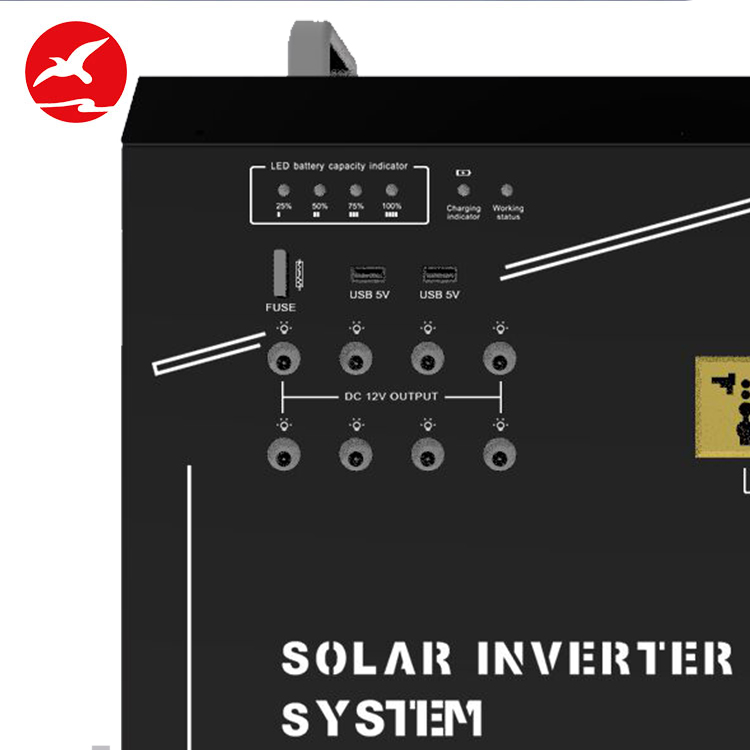

| Output volt | DC12V * 2 output ports , Max output current : 5A; USB 5V 1A * 2 output ports; AC 220V*1 output ports , Max output current : 1A; | ||
| Internal battery | 12V55AH , lead-acid battery | ||
| Charging time | Depends on recharge method | ||
| Recharging time | Depends on loading power | ||
| Rated charging current | <20A | ||
| Rated discharge current | 5A | ||
| No-load loss | <50mA | ||
| Boost voltage | 15V | ||
| System volt | 12V | ||
| Overvoltage | 14.4V | ||
| undervoltage | 11.6V | ||
| Control mode | recharge; PWM(pulse width modulation) | ||
| Working temperature | -10~55 | ||
| Overload/short circuit protection | 10ms Responsse | ||
| Guard circuit | Overload/short circuit protection | Burn the fuse | |
Click here for more information! Product Details
Application
Packaging & Shipping
Company Information
FAQ
Q1. What advantages does your solar power system have?
A: Solar energy is a locally available renewable and free resource. Electricity produced by PV system is clean and silent. What’s more, the government has up to 40% allowance.
Q2. What factors is related to generated energy of solar power system?
A: in addition to efficiency, another key point is the sunshine. The longer Sunshine time, the more generated energy. it is related to the intensity of sunshine as well, it is less in the morning and at night, more at noon; It is more in Summer and Autumn, less in Winter and Spring.
Q3. What factors will influence the efficiency of solar power system?
A: Components efficiency of the system, weather,direction of the system, the installing angle, etc
