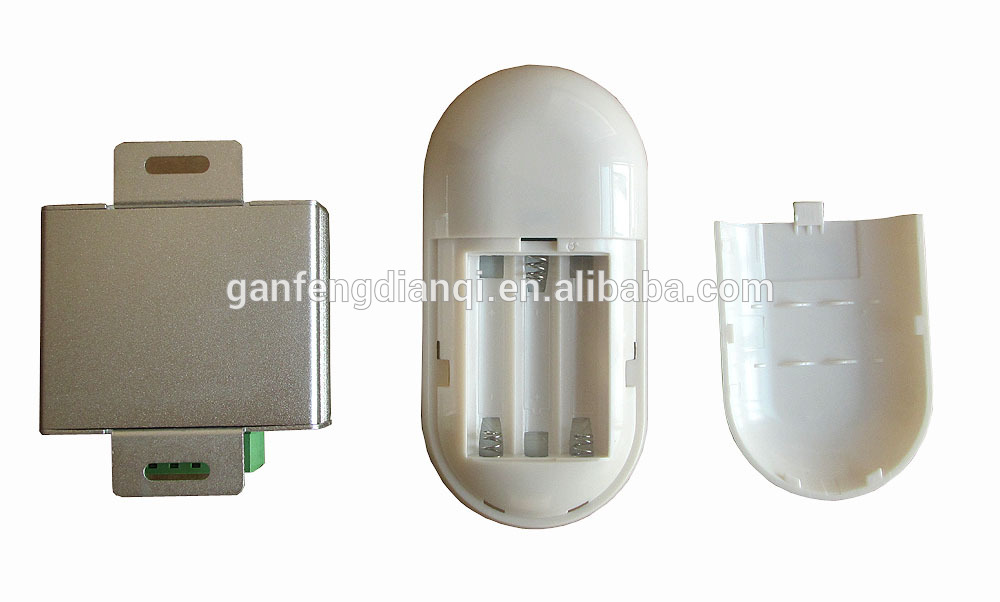

DC12/24V LED RGB strip wireless RF controller 2.4G RF 6A4 channels RGBW
Product Description:
RF touch controller adopt the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED, For instance, point source of light, flexible light strip, wall washer lamp, glass curtain, wall light and so on; It has many advantages such as easy connection and simplicity to use, according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Technical Parameters
Working temperature: -20-60℃
Supply voltage: DC12V~24V
Output: 3channels
Connection mode: common anode
Output current:6A(each channel)
Output power: 12V<216W;24V<432W
Net weight: 136g
Remote control function:
Key 1:ON/OFF
Key 2:light changing mode(Total 14 modes)
Key 3:color light/white light switching mode
Key 4:brightness/speed+
Key 5:brightness/speed-
Direction for use
Function introduction:
1,Use the RF remote control, no need to make the remote direct to the controller, and the RF remote can controlled it across obstacles.
2,Each controller and the remote with an unique ID on it.
3,the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.
Operation method:
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Just the ON key is valid in OFF condition, to turn on the controller by press the ON key for the first time. the controller will be in the same mode as last time it save.
In on condition, press the Key 2 can be realize the 14 kinds of changing mode as follows:
NO. | Mode | remark |
1 | Seven color gradual changing | Speed is adjustable, Brightness is unadjustable |
2 | three color jumpy changing | |
3 | Seven color jumpy changing | |
4 | Three color gradual changing | |
5 | Red strobe-flash | Brightness is adjustable, Speed is unadjustable |
6 | Green strobe-flash | |
7 | Yellow strobe-flash | |
8 | blue strobe-flash | |
9 | Purple strobe-flash | |
10 | Cyan strobe-flash | |
11 | White strobe-flash | |
12 | Red-blue cross fade | Speed is adjustable, Brightness is unadjustable |
13 | Blue-green cross fade | |
14 | Red-green cross fade |
Press Key 3 once to activate white light mode.when switch to the static color,can be touch the color ring to realize the color you want.
In static color mode, can be adjust the light brightness by press Key 4 or key 5.
In dynamic mode, can be press the key 4 or key 5 to adjust the changing speed.
