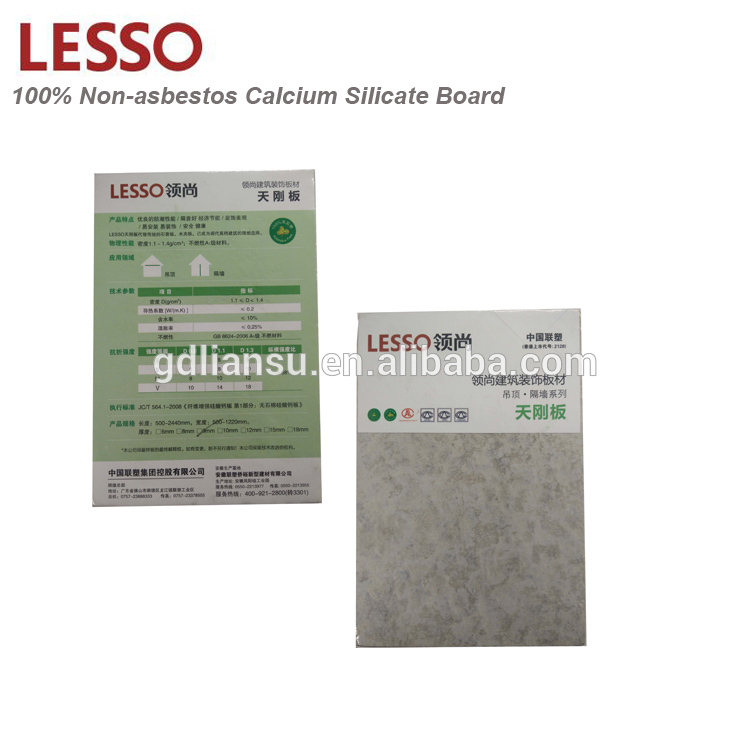

Fireproof material waterproof content 10% calcium silicate board for interior wall
Product Feature
1.100% Non-asbestos,environmental friendly;
2.Fireproof,waterproof and humidity resistance
3.Moisture preserving,thermal insulation and energy saving;
4.Lightweight and earthquake resistance
5.Good property of sound-absorbing and sound insulation;
6.Easy installation
Physical/ Mechanical Properties: | ||
Size | Standard Size | Size:1220*2440*6/8/9/10/12/15/18mm |
Appearance | Surface | Surface:Un-Sanded/Sanded/Polished; |
Edge | Square/Recessed | |
| Density | 1.25-1.35g/cm3 |
Moisture Movement | <0.25% | |
Moisture Content | <10% | |
Physical Properties | Thermal Conductivity | ≤0.2 w/(m •k) |
Non-combustibility | GB 8624-2006 Grade A1 Grade | |
Application | Interior Ceiling and patition wall of all kinds of civil building, renovation of old building,ceiliing and baseboard in the clean room of medical buidling,surgery room,clean room for medical production,research laboratory etc.... | |
Executive Standard | JC/T 564.1-2008 Fiber reinforeced calcium silicate board,first part: calcium silicate board with non-asbestos | |
Remark: 1. The above mentioned just prescribe the range. The actual specification can be selected according to construction module among the specified range | ||
Flexural Strength | ||||
Strength Grade | Density 0.8g/cm3 | Density 1.1g/cm3 | Density 1.3g/cm3 | Aspect intensity ratio |
II | 5 | 6 | 8 |
|
III | 6 | 8 | 10 | 58% |
IV | 8 | 10 | 12 | |
V | 10 | 14 | 18 | |
Certification
FAQ
Q1.What"s calcium silicate boardbase board ?
A: Calcium silicate board what is made of two parts as follow,
*Siliceous materials (mainly composed of SiO2, such as quartz powder, fly ash, diatomite, etc.), *Calcium materials (mainly CaO, such as lime, calcium carbide mud, cement, etc.) fiber materials wood pulp, additives with a certain percentage of proportion, a new type of inorganic building materials through copying or molding, autoclave curing and other processes.
Q2. Why are calcium silicate board should be non-asbestos ?
A: Asbestos itself is harmless.The greatest harm comes from its fiber which is very small,almost invisible to the naked eye. Long term exposure to asbestos can cause lung cancer,pleural and peritoneal mesothelioma and all kinds of malignant tumor.
Q3. Could I use 6mm thickness for partition wall ?
A: Yes. They can install it with lightweight steel structure.
Q4.What"s end use of calcium silicate board ?
A: Calcium silicate board what can be used with a variety of types of steel keel supporting the formation of a variety of different ceiling systems, standard wall and acoustic wall.
Q5: How many load quantity for calcium silicate board ?
A: It depends on which thick you want it.For example,6mm thick for 900 pieces,8mm for 670 pieces and 9mm for 600 pieces.
