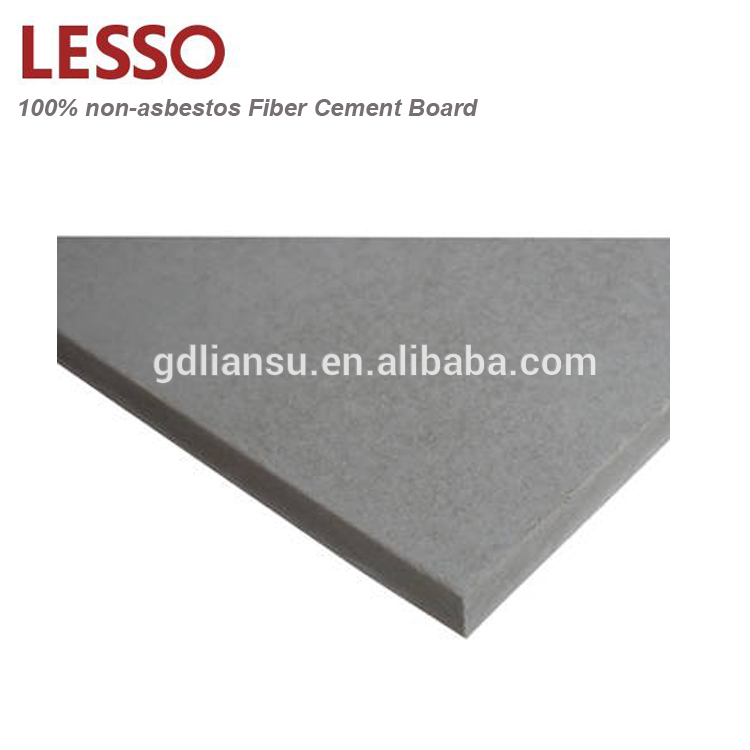

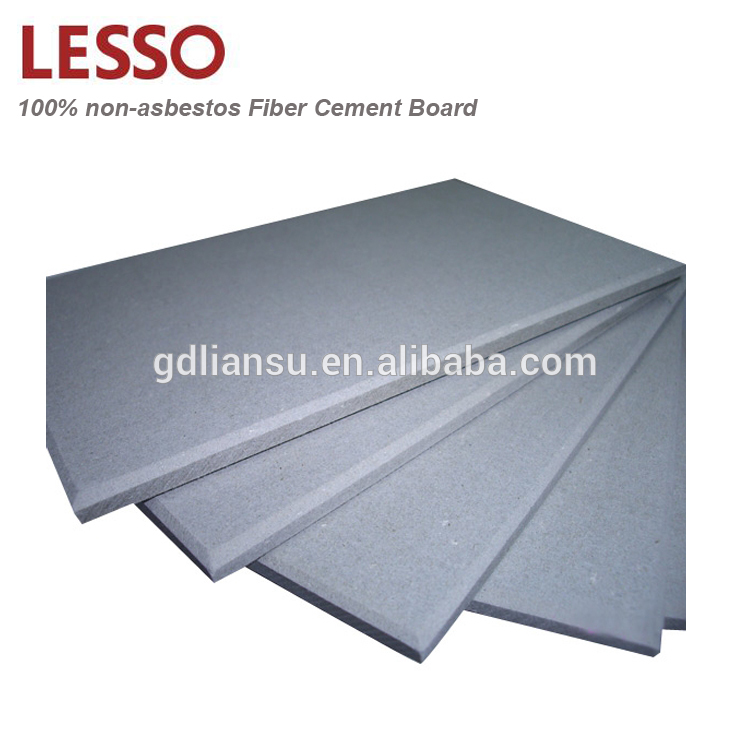

Made in China 6mm thickness new design fiber cement board for ceiling panel
Product Feature
1.100% Non-asbestos,environmental friendly;
2.Fireproof,waterproof and humidity resistance
3.Moisture preserving,thermal insulation and energy saving;
4.Lightweight and earthquake resistance
5.Good property of sound-absorbing and sound insulation;
6.Easy installation
Size | Standard Size | Size:1220*2440*6/9/12/18mm |
| Density | 1.25-1.35g/cm3 |
Water absorption | ≤40% | |
Moisture Content | <10% | |
| Watertightness | Permitted to show wet mark but no water-drop after 24 hours testing |
Physical Properties | Thermal shrinkage | ≤0.50% |
Moisture Movement | ≤0.25% | |
Non-combustibility | GB 8624-2006 Grade A1 Grade | |
Application | 1.Multipurpose indoor partition wall ceiling board with humidity resistance. | |
Executive Standard | JC/T 412.1-2006 Fiber cement board part 1: non-asbestos fiber cement | |
Remark: 1. The above mentioned just prescribe the range. The actual specification can be selected according to construction module among the specified range | ||
Flexural Strength |
|
|
Strength Grade | Density 1.1≤D<1.4g/cm3 | Aspect intensity ratio |
II | 8 |
|
III | 10 | 58% |
IV | 12 | |
V | 18 |
Certification
FAQ
Q1.What"s fiber cement board ?
A: It is made of reinforeced material which is synthetic fiber,inorganic mineral fiber or cellulose fiber combined with cementing material which is cement or some cement with siliceous and calcareous material.
Q2. What’s different between fiber cement board and calcium silicate board ?
A: Fiber cement board is made of fiber material and cement which through the pulping, maintain process, Finally the machine compressed the molding.
Calcium Silicate Board is made of calcium, siliceous and reinforce fiber which through the pulping,molding. Finally it is made for the calcium silicate board under the autoclaved steaming-compressed machine.
Q3. What’s application of fiber cement board ?
A: All kinds of industry and civil building for humidity resistance and fireproof partition wall and ceiling.Good sound insulation to make it suitable for the places with high private places.
Q4. Could you tell us product feature of fiber cement board ?
A: The lowest strength(parallel to the fiber direction)11Mpa. The highest strength(perpendicular to the fiber direction)≥15Mpa.
