Descriptions:
Auto ranging clamp multimeter with AC/DC current, AC/DC voltage, resistance, capacitance,
temperature, frequency, diode and continuity test.
Jaw opening measures AC current in a conductor up to 45mm without interrupting the circuit.
Features Data Hold, Max/Min Reading, Backlight, an easy-to-read large LCD.
Comes with a handy carrying pouch - Perfect for use while on the go.
The mobile phone can be connected to the HP-570C-APP Clamp Meter through the APP to read and
operate on the mobile phone. This design is convenient and advanced.
Specifications:
Brand Name:HoldPeak
Display Type:Digital Only
Measuring Capacitance Range:5.12nF/51.2nF/512nF/5.12uF/51.2uF/100uF
Measuring Current Range:200A/400A/0-800A/800-1000A
Measuring Resistance Range:400/4k/40k/400k/4M/40M
Weight:450g
Operating Temperature:-20~1000"C

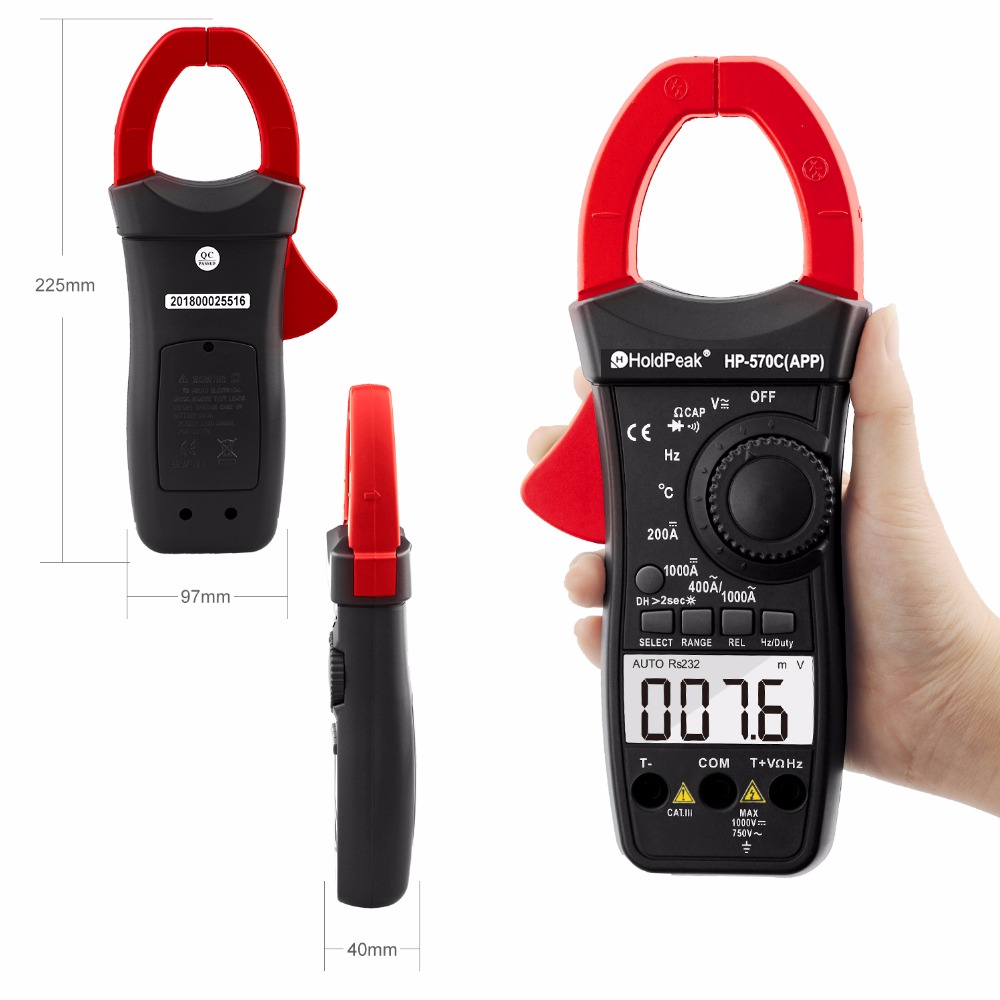

Dimensions:225*97*40mm
Model Number:HP-570C-APP
DIY Supplies:Electrical
Measuring Voltage Range:400mV/4V/40V/400V/750V/1000V
Measuring Frequnency Range:5.12Hz/51.2Hz/512Hz/5.12kHz/512kHz/5.12MHz
Display:4000
Diode Test:YES
Continuity Buzzer:YES
Date Hold/Back Light:YES
Auto Power Off:YES
Relative Value:YES
Dual Display:YES
Link to phone App:YES
Battery Type:9V(6F220)*1(Not Included)
Package Included:
1 x HoldPeak 570C-APP Clamp Meters (Battery Not Included)
1 x Test Lead
1 x English Manual
