- Place of Origin:
- Guangdong, China
- Brand Name:
- OEM
- Model Number:
- AT80E
- Display Type:
- Digital Only
- Measuring Current Range:
- 6mA/60mA/600mA/20A
- Measuring Voltage Range:
- 6mA/60mA/600mA/20A
- Measuring Resistance Range:
- 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Measuring Capacitance Range:
- 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Operating Temperature:
- -40℃-4000℃ ,400-1000℃
- Dimensions:
- 180 * 88 * 53mm
- Weight:
- 540g
- Color:
- Red
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 18X8.8X5.3 cm
- Single gross weight:
- 0.54 kg
- Package Type:
- Carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 7 To be negotiated
Specification:
Power Supply: one 9V battery (NEDA1604, 6F22 type or equivalent type) (not included)
Low battery voltage indication: yes
Environment condition: 75%
Operation temperature: 0°C~40°C Relative humidity <85%
Storage Temperature: -10°C~50°C Relative humidity <85%
Guaranteed accuracy temperature: 23°C+5°C
Relative humidity: <75%
Environmental humidity: 23°C+5°C
Relative humidity: <75%
Size: 180*88*53mm/7.1*3.5*2.1in
Weight: Approx.539g/19oz

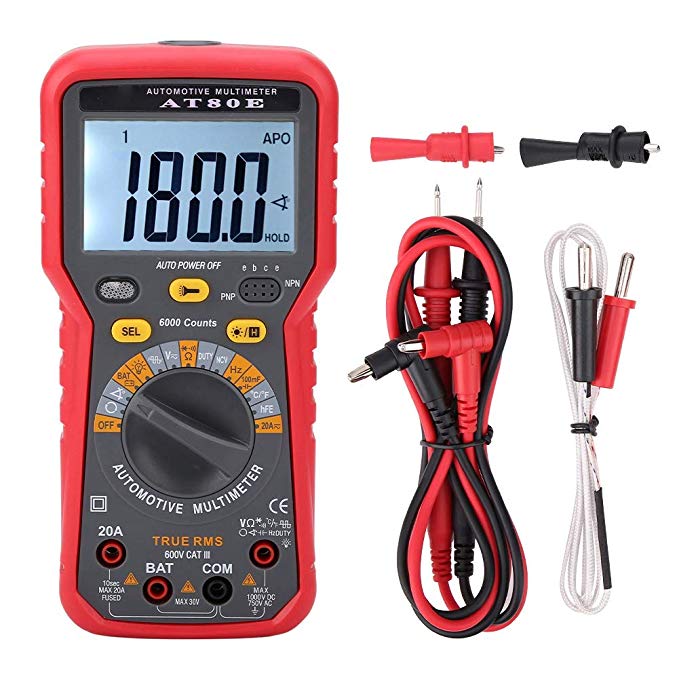

Package list:
1 x Multimeter(battery not included)
1 x instructions
2 x test lead
1 x thermocouple
2 x crocodile clip
Safety rules and precautions:
Please read the instruction manual carefully before use.
It is strictly prohibited to use with the rear cover uncover, otherwise it will be subject to electric shock.
Before use should check the test leads Insulation, no damage and disconnection.
The input signal level is not allowed to exceed the specified limit to protect against electric shock and damage to the instrument.
Do not rotate the function / range switch while measuring.
Measuring the potential difference between the common end "COM" and "Earth" shall not exceed 1000V, in case of electric shock.
Under the circumstances that the measured voltage is higher than DC60V and AC30V , should be careful to prevent electric shock.
When LCD display""symbol, indicating that the battery voltage is insufficient, should replace the battery in time to ensure the measurement accuracy.
Replacement of fuses within the instrument should be of the same type.
