Product Description

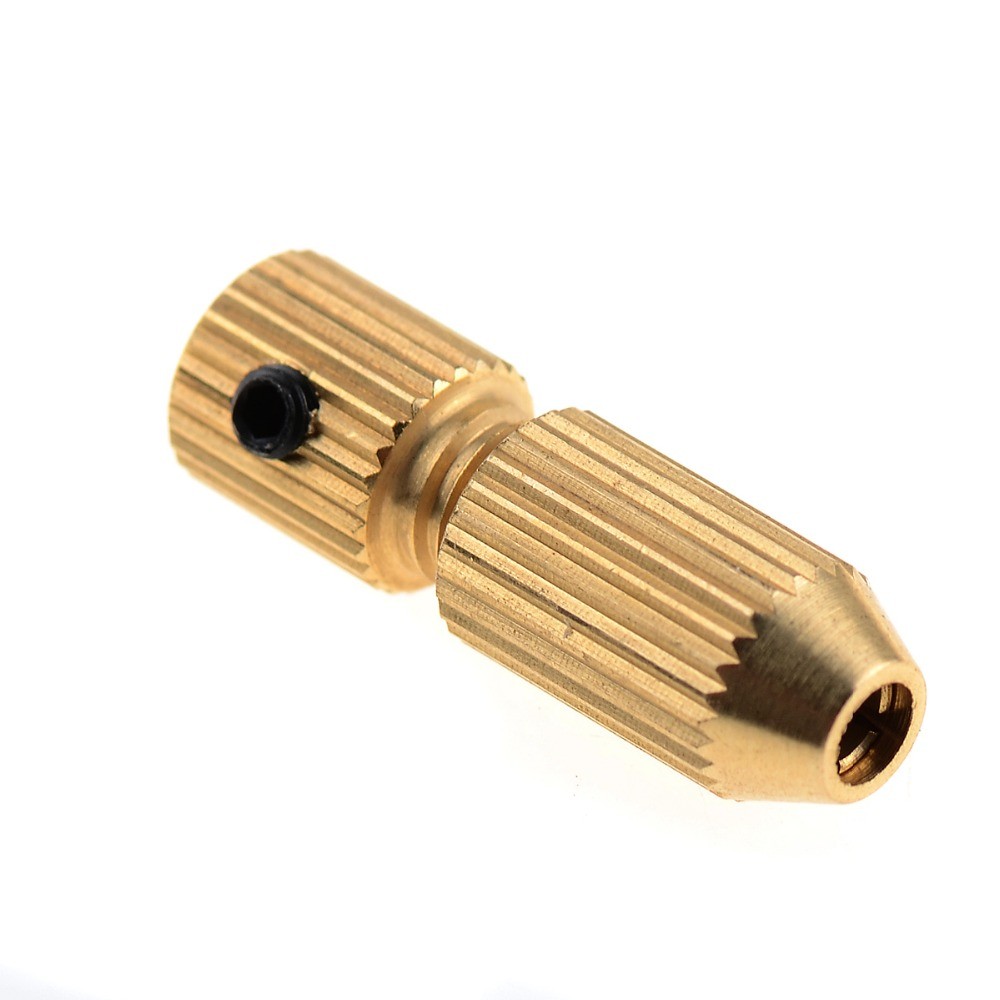

2 2.3 3.17mm Micro Drill Bit Clamp Fixture Brass Electric Motor Shaft Chuck For 0.7mm-3.2mm mini Drill multi tool VE523 P0.3
Product instruction:
2-0.7 (0.2mm-0.7mm) means:
Diameter of motor shaft is 2 mm. Fit max 0.7mm drill bit. Also fit 0.2 mm to 0.7 mm drill bit.
Concentricity adjustment method: Before lock bit need to adjust the concentricity,otherwise there will be a violent vibration,power on rotate awhile on the smooth surface of the floor or glass, lock bit after bit concentric.
Specifications:
Material: Brass
Size: 25mm(L) x 8mm(Dia.)
Diameter of backshaft (match the motor shaft): 2mm/2.3mm/3.17mm
Notice :we have 10 size : 2-1.5 (1.0mm-1.5mm), 2-2.5 (1.8mm-2.5mm), 2.3-1.5 (1.0mm-1.5mm), 2.3-2.3 (1.6mm-2.3mm), 2.3-3.17 (2.5mm-3.2mm), 3.17-1.2 (0.7mm-1.2mm), 3.17-1.5 (1.0mm-1.5mm), 3.17-2.0 (1.4mm-2.0mm), 3.17-2.5 (2.0mm-2.5mm), 3.17-3.17 (2.5mm-3.2mm) ,please leaeme a message that you loved the size ,otherwise we will send it at random size
Item Included:

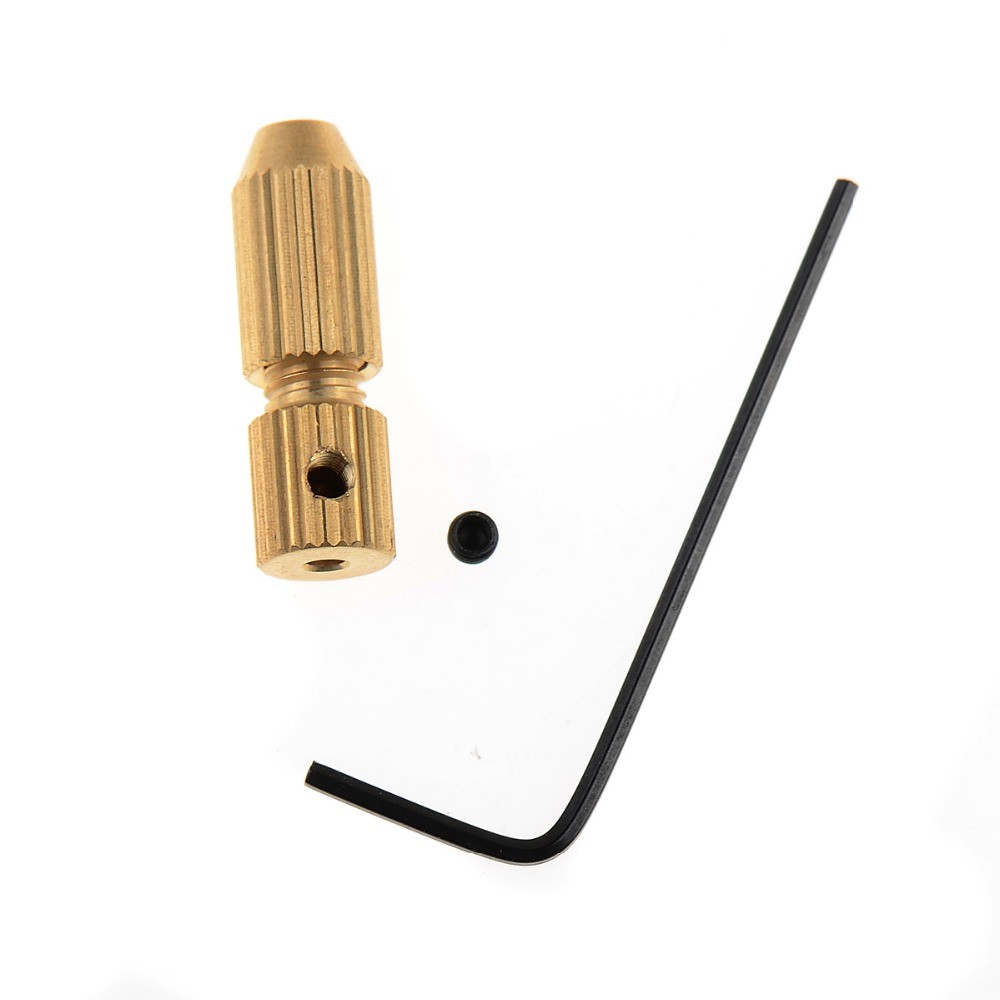

1pcs drill bits chuck( come with 2 screws)
Packaging Details
- Unit Type: piece
- Package Weight: 0.09kg (0.20lb.)
- Package Size: 14cm x 12cm x 2cm (5.51in x 4.72in x 0.79in)
