Product Description
Features:
- 100% quality and Brand new.
- Material HSS
- Color :Silver Tone
- High Speed Steel
- Standard 60 degree included angle
- precision import
- double ended
Specification:

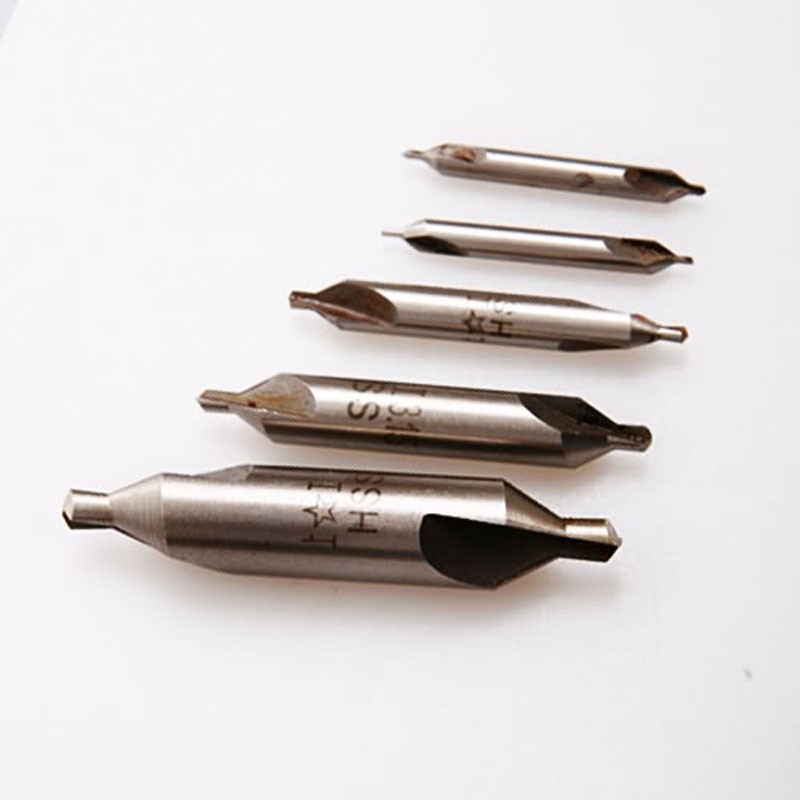

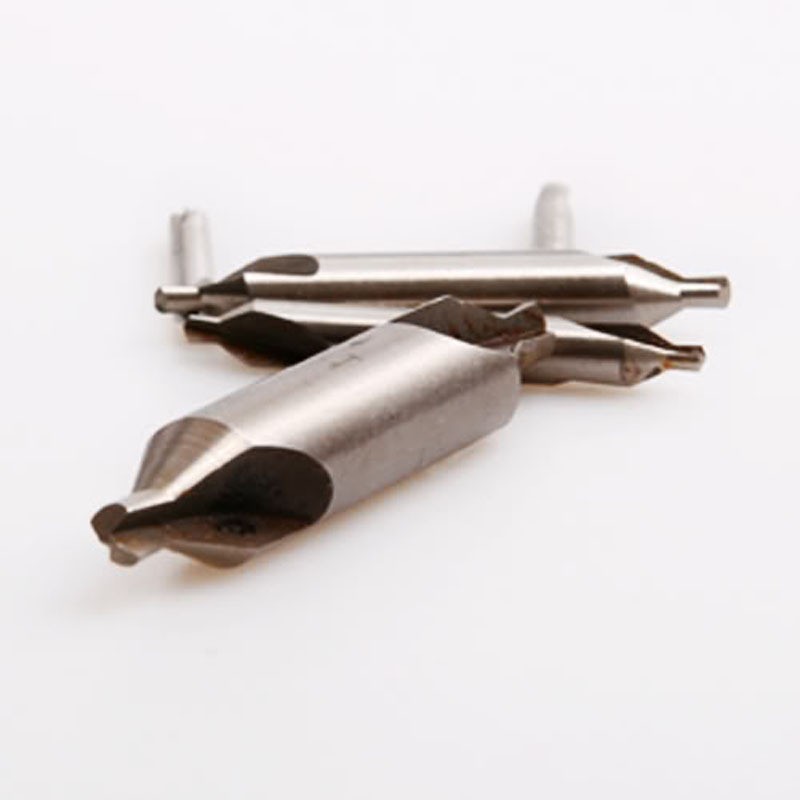

- This listing is for a set of 5 HSS Center Drills
- It includes 1 each of sizes #1, #2, #3, #4 and #5
- Each drill has a double end and is ground with a standard 60 degree included angle
- The set includes 1 each of the following sizes:
#1 with 3mm body diameter & 1mm drill tip diameter
#2 with 4mm body diameter & 1.5mm drill tip diameter
#3 with 6mm body diameter & 2.5mm drill tip diameter
#4 with 8mm body diameter & 3.15 drill tip diameter
#5 with 12mm body diameter & 5mm drill tip diameter
Usage:
- Center and spotting drills are traditionally used to make a conical hole for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking
- Used for producing center holds in components or work pieces with require machining between centers
Package Included:
- 1x a set of 5 HSS Center Drills
Packaging Details
- Unit Type: Set
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 12cm x 8cm x 12cm (4.72in x 3.15in x 4.72in)
