Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- OEM
- Model Number:
- AR991
- Color:
- Yellow
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 49.5X45X37 cm
- Single gross weight:
- 18.24 kg
- Package Type:
- Power: 4*1.5V AA Battery Product Net Weight: 254g Product Size: 80*43*425mm Packing: Gift Box Standard Quantity Per Carton: 40pcs Standard Carton Size: 49.5*45*37cm Standard Carton Gross Weight: 18.24KG
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 5 To be negotiated
Specifications:
| Grain Can Be Measured | Rapeseed, sesame, soybean meal, cotton, soybean, peanut, barley, rice, sorghum, watermelon seed, paddy, wheat, maize, fodder |
| Principle of Measurement | Resistance Method |
| Accuracy / Measurment resolution | 0.1 / 01% |
| Backlight Display | Yes |
| Deviation Adjustment | Yes |
| Voice-over | Yes |
| Resistance Alarm Setting | Pre-set 10 ( Adjustable ) |
| Memory Function | Yes |
| Power | 4 x 1.5V AA Battery (NOT included) |
| Product Net Weight | 254g |
| Product Size | 80 x 43 x 425mm |
| Packing | Gift Box |

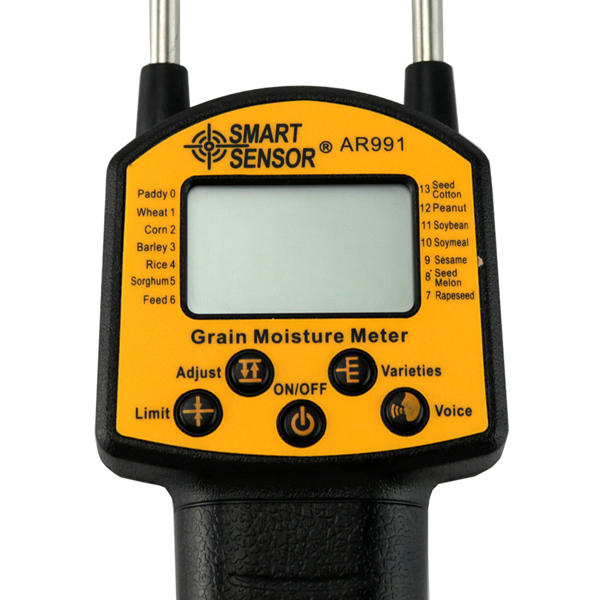

Product appearance and structure:
LCD dispay description:
All varieties codes and moisture measurement range:
| Variety | Paddy | Wheat | Corn | Barley | Rice | Sorghum | Feed |
| Code | P0 | P1 | P2 | P3 | P4 | P5 | P6 |
| Range | 11~55 | 11~55 | 11.5~55 | 11~50 | 11~50 | 11~50 | 11.5~50 |
| Variety | Rapeseed | Seed Melon | Sesame | Soymeal | Soybean | Peanut | Seed Cotton |
| Code | P7 | P8 | P9 | P10 | P11 | P12 | P13 |
| Range | 7.5 ~44 | 50 | 7.5 ~44 | 5~44 | 10~50 | 10~50 | 7.5~44 |
User"s Guide:
| 1. Display: English characters with a low-power digital LCD backlight. Low-power backlight Description: Backlight will be off when no measurment, and the backlight will be on when measuring. |
| 2. Voice-Over: Instrument setting, testing, inspection, all accopmpanies by voice reminder. Language: English voice-over includeds the following 4 modes: d1= The moiseture content readings,/ d2= High moisture content /d3= Voice-over off, /d4= bip-sound. |
| 3. Mode change: Oven control calibration method, user can adjust -3% to + 5%. Click the " Adjust" button to adjust the loop gain value, first addition and then subtraction. after amendment, press the " ON/OFF" button for 2 seconds, The setting will be saved when shuting down. |
| 4. Speed modeAlarm setting: Adjustable, factory default alarm is 10%. |
| 5. Memory function setting: If the battery was removed, the setting content will never disappear, To save the setting content, press the " ON/OFF" button for 2 seconds. The setting will be saved when shutting down. |
| 6. Lower power reminder: When battery power is low, the battery symbol on the LCD display will be blank, then user should replace the battery. |
| 7. Measuring principle and sampling method: Resistance method and continuous sampling. |
| 8. The upper and lower limits of moisture measurement: Insert the meter to the measured of the meter, the meter can measure the moisture of the measured object, when the measured object was too dry below the minimum measuring range, the meter will display" LO" for no result. When the test was too wet exceeded the maximum measuring range, the meter can only display " Limit". |
| 9. Single measurement: When the probe of the meter is inserted in to the measured object, and the moisture content was within the measuring range, the LCD display will show the moisture reading for few seconds, and voice-over will report the reading immediately. |
Package Included:
1 x SMARTSENSOR AR991 Digital Grain Moisture Meter
