Features:

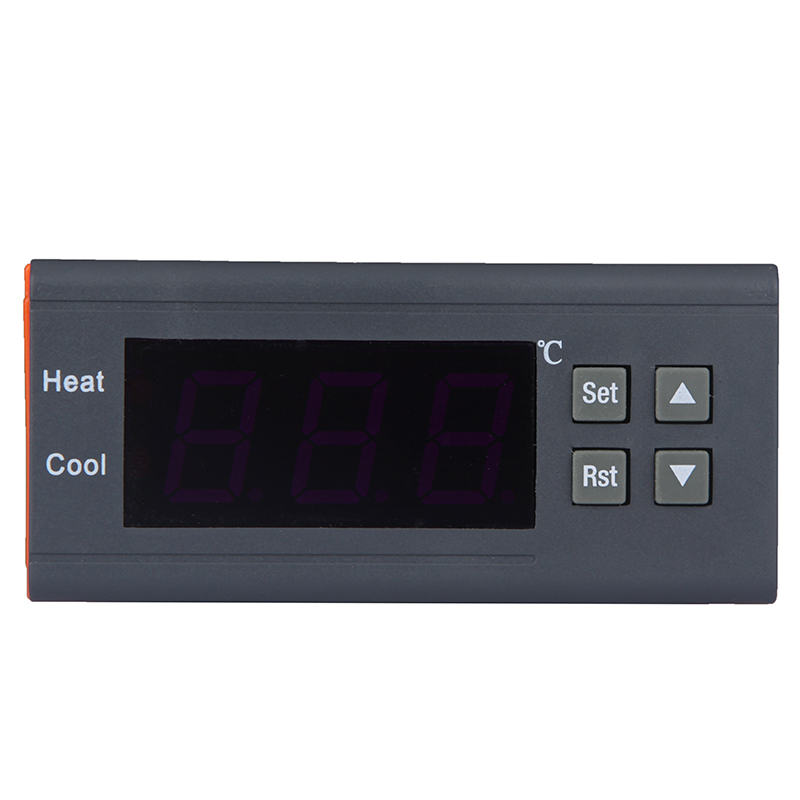

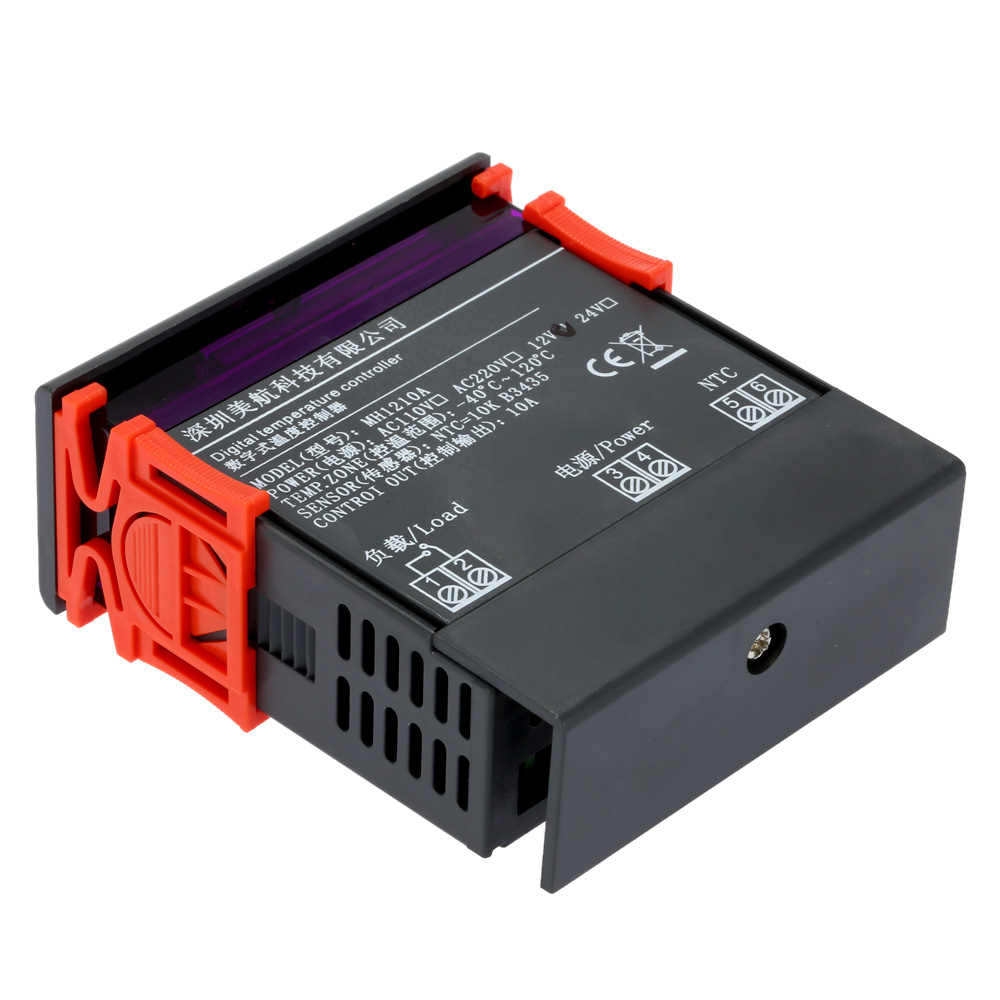

A mini temperature controller.
With large and clear LED display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specifications:
Working voltage: 12V ±10%
Rated current: 10A
Power consumption: ≤3W
Measurement range: -40~120 Celsius degree
Measurement precision: 0.1 Celsius degree
Measurement error: ±0.5 Celsius degree
Control range: -40~120 Celsius degree
Control precision: 1 Celsius degree
Working temperature:-20~70 Celsius degree
Temperature sensor: NTC 25 Celsius degree=10K B3435
Item size: 8.5*7.5*3.5cm / 3.4*3*1.4in
Item weight: 87g / 3oz
Package size: 11*8.5*4.3cm / 4.3*3.4*1.7in
Package weight: Approx. 125g / 4.4oz
Package Includes:
1 * Temperature Controller
1 * Temperature Sensor
1 * Instruction Manual
