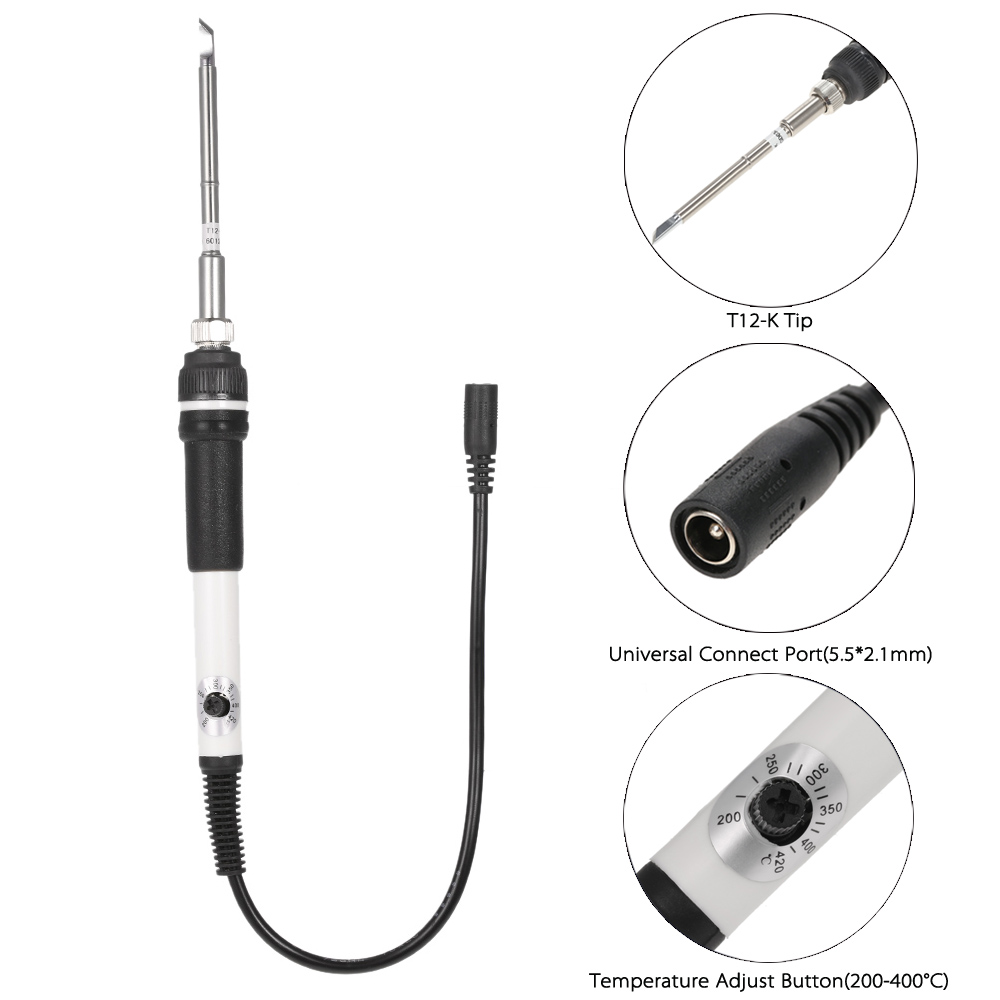

This electric soldering iron is an essential tool for electronics engineers. It"s mini and lightweight in design; and the operating handle and tip are easy and convenient for use. Users can adjust the temperature from 200-400°C freely by rotating the knob.
Features:
Small size, lightweight and convenient to carry.
Adjustable temperature range from 200-400°C.
High heating efficiency(Melting tin only takes 7s, when it works on 12V 3A).
Using DC 12-24V for power supply, with DC 5.5*2.1mm interface.
Comfortable operating handle, easy to replace the soldering tip.
Great and essential soldering tool for electronics engineers.
Specifications:
Color: Black / Black+White / Yellow+Blue(Optional)
Input Range: DC 12-24V 3A
Power: 75W (MAX)
Universal Power Input Interface: 5.5*2.1mm Standard Interface(Inside=positive; outside=negative)
Temperature Adjust Range: 200-400°C
Tip Length: 152mm / 5.98in
Handle Length: 150mm / 5.9in
Installed Length(Handle+Tip): 220mm / 8.66in
Weight: 51g / 1.81oz
Package Size: 26.5 * 10 * 2cm / 10.43 * 3.94 * 0.8in
Package Weight: 76g / 2.7oz
Note:
The power supply is not included, please prepare power supply adapter with DC 12-24V output & 5.5*2.1mm interface by yourself.
Package List:
1 * Mini Adjustable Electric Soldering Iron
1 * T12-K Soldering Tip
