polycarbonate lens and High quality electronic components
Operating temperature:
-35℃ to +65℃
Operating pattern:
22 type
IP Rate:
IP 67
Packing Size:
120*40*35mm
Packaging & Delivery
Selling Units:
Single item
Single package size:
12X4X4 cm
Single gross weight:
0.1 kg
Package Type:
Export standard carton.
Lead Time:
Quantity(Piece)
1 - 10
11 - 50
>50
Est. Time(days)
5
10
To be negotiated
Product Description
SL6201 LIGHTHEAD
Kick your vehicle's lighting system up a notch with the light trusted by many public safety professionals. The SL6201 surface mount LED light is a winning solution for all of your emergency vehicle lighting needs. The SL6201, this highly dependable light is both CE approved and a great value. Add this compact LED light to your emergency vehicle and marvel at the results you'll achieve. With its discreet style, bold light, and unbeatable value, the SL6201 is a light you will trust for every job.
Model
SL6201
Light Characteristics
LED Power
4 high intensity LED with TIR optic lenses
LED Lifespan
100,000H
Electrical Characteristics
Voltage
9-30V DC
Max Power
4W
Physical Characteristics
Colour Available
Red, Bule, White, Amber, Green
Waterproof
IP67
Mounting
Screw or Bracket Mount
Flash patterns
22 kinds of flash patterns
Materials
EPISTAR LED tube,Aluminum alloy cooling sheet , Transparent Polycarbonate TIR lens
Wire
Positive, Negative, Sync, Pattern,Hi/Li POWER Adjustment
Specifications
1.The SL6201 has been tested to withstand any weather and road conditions you can throw at it. 2.Its vibration-resistant design means this compact light will perform at high speeds on any terrain without loosening from its mount. 3.Each SL6201 surface mount LED unit contains four (4) 1-Wattthird generation LEDs and is available in both solid and split color styles. 4.Choose from five colors: Red, blue, white, amber, and green, or select from one of four dual-color models to fit your department's needs.
5.Featuring 22 different self-contained flash patterns, the SL6201 offers the versatility customers love.could choose to flash in either simultaneous or alternating pattern.
6.At just 112mm wide, this light's compact design makes it the ideal choice for mounting in a wide variety of positions on your vehicle.
7.Five (5) standard connecting wires provide simple set-up so you can integrate this light into your vehicle's system with ease.
Materials High quality Aluminium baseplate are non-corrosive and easy to cooling.
High performance plastic ABS bezel made by POLYLAC® PA-757 ABS Non-fading polycarbonate lenses made by LG Chemical IF850 PMMA and the lampshade made by Mitsubishi Iupilon® S2000UR 9.5 MFI, UV Stabilized Polycarbonate
Warranty
Golddeer offer a 12 month guarantee on compact LED beacons subject to the item being fitted and used in accordance with the correct instructions. Any problems caused by misuse or negligence will not be covered under the golddeer guarantee.golddeer will in all circumstances only offer to replace faulty product should failure occur.
Applications
Emergency Vehicle Lighting
LED Emergency Lights
Public Safety Vehicles
Utility Vehicle Lighting
Warning Lights
Tractor Lights
Hazard Lights
Waste Removal Lights
Farm Equipment Lighting
Roadside Assistance Lights
Wreckering & Utility Vehicles Lights
Detailed Images

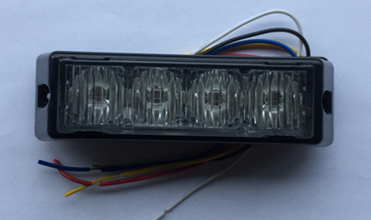

SL6201 LIGHTHEAD
At just 112mm wide, this light's compact design makes it the ideal choice for mounting in a wide variety of positions on your vehicle.
High performance plastic ABS bezel made by POLYLAC® PA-757 ABS, Non-fading transparent lens made by LG Chemical IF850 PMMA, lampshade made by UV Stabilized Polycarbonate Mitsubishi Iupilon® S2000UR materials
wires and substrate
Lightweight substrate made by EVA(ethylene-vinyl acetate)could provide a good buffer and protection. selection of stainless steel screw also guarantees the service life of the product.
Five (5) standard connecting wires provide simple set-up so you can integrate this light into your vehicle's system with ease. whatever flash in either simultaneous or alternating pattern.
Circuit board with lens and lampshade
Non-fading transparent lens and lampshade kick your vehicle's lighting system up a notch
High quality electronic components could withstand the test of times.Many of the components come from panasonic,LSHC, EPISTAR etc.
The precise and reasonable circuit design guarantees the reliable operation of each part.
Aluminium baseplate
In the circuit design scheme, the thermal diffusion is treated extremely effectively, so as to reduce the operating temperature of the module, prolong the service life, and improve the reliability.
Waterproof adhesive ensuresIP67 the grade of waterproof that the lighthead could survive in harsh conditions for a long time.Protect it from water and dust
Color Table
SL6201-1
RED/BLUE
SL6201-2
RED
SL6201-3
customization
SL6201-4
AMBER
SL6201-5
GREEN
SL6201-6
BLUE
SL6201-7
RED/WHITE
SL6201-8
RED/AMBER
SL6201-9
WHITE
