alternative energy generators solar power panel home solar power system
Home solar alternative energy generators 400 W battery capacity 972000mAh
Greenbar G-1000 is a mobile power generator with UPS function. It’s designed with the safe lithium-ion battery and inverter technology with SPWM; It’s a kind of standby power station with light weight, large capacity and big power and is widely used in the fields of mobile field office, bank, medical care, repair of power equipment, fire emergency rescue, protection for environment, emergency situations for electric and so on.The device is with capacity of 25.9V41.6AH/1078WH and please see its main functions as follows:
♦ 220V/50Hz pure-sine wave AC output(110V/60Hz)
♦ 12V/10A DC output,5V/2A- dual USB output12V/10A and 24V/20A DC output
♦ LED emergency light
♦ Smart displays indicating battery volume, power of input and output and the remaining working hours
♦ Car charger and solar charger for option

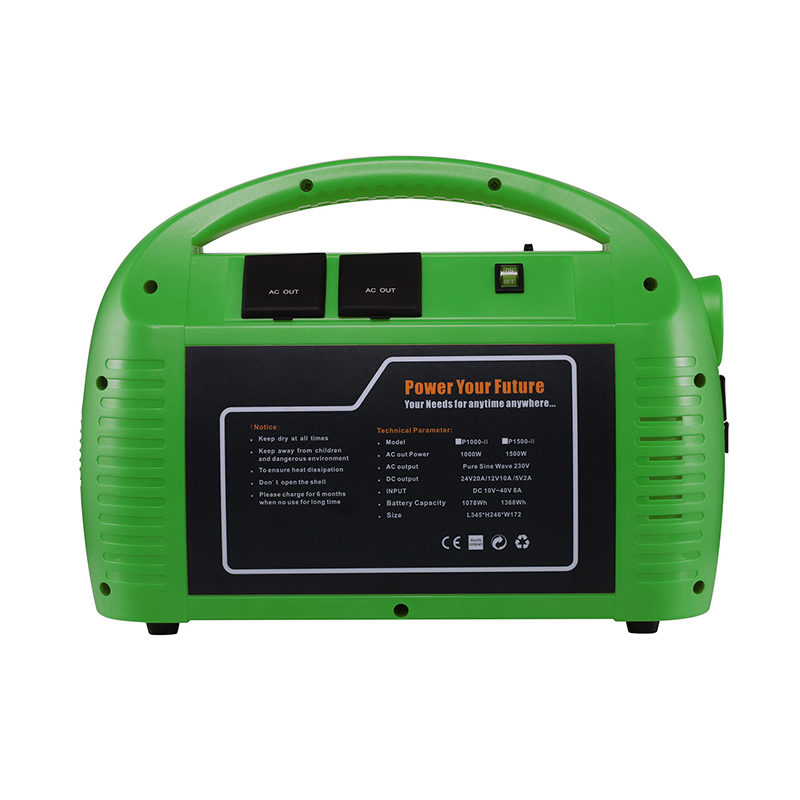

Back Panel
1. AC output: Both AC output sockets are with AC220V, 50HZ and output can be customized as 110V,60HZ output for Japanese and USA markets;
2. Power switch: Press it, AC 220V output will work, and the switch indicator lights; Press it again, output stops working and indicator is off.

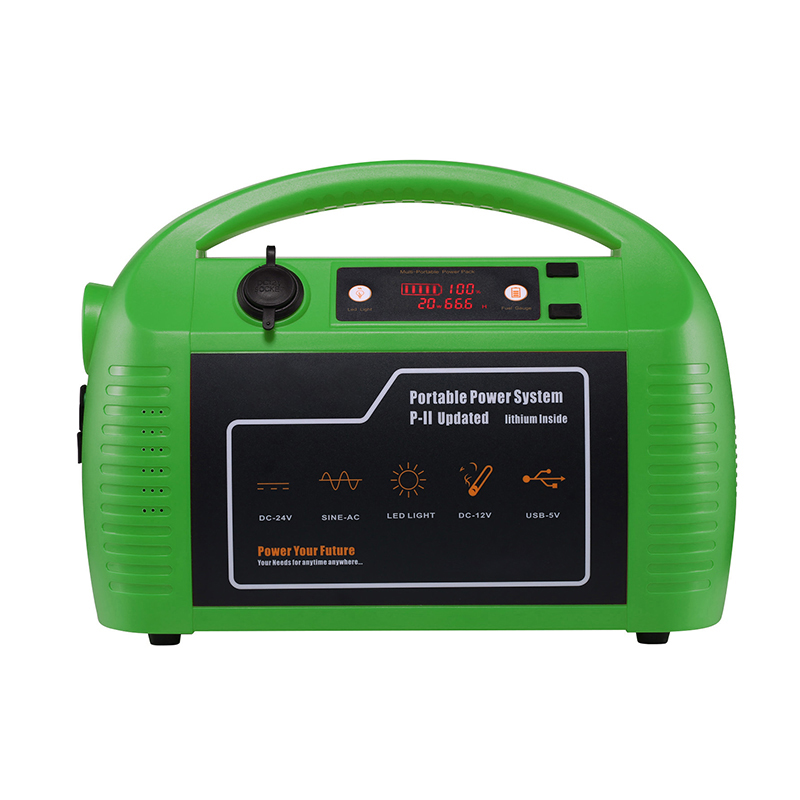

Front Panel
3. DC power plug:DC12V cigar lighter can supply power for 12V DC appliances with stable voltage of 12V and max current of 10A; When load is smaller than 0.1A, it may have problem to recognize the load ,causing that standby protection program is ready and output closed; Only when you press the power display button again, the output will continue to work.
4. LED light switch: Press twice to open the light; Double press it again to turn off it;
5. Intelligent display screen: Show the most precise remaining battery volume; The power won’t varies as the voltage changes because of the electricity coulometer technology. And you can see the power and working hours during charging and discharging. During charging , the time is hours fully charged; During discharging, the time is hours for load work. When the battery has been working for several years, if the remaining power shows XX%, it means that the battery is in low voltage state and is unable to work, indicating the attenuation of the battery capacity;
6. Power display button: Press the button, display lights, indicating remaining battery capacity; And the display will be off automatically after 20S. The button is also a switcher for DC12V and USB 5V; When DC is in the standby mode, you can start the DC output by pressing this button;
7. USB 5V output ports: Supply power for appliances of DC5V with 2A output
8. LED emergency light: It’s used when there is no electricity or outage. Its power is 1W. Do not look steadily at the LED light in order to protect your eyes.
9. DC 24V output end: Supply power for 24V load with max current 20A. And the current range of this port is 20V~29.4V. Please consider to change a wiring for large current
Parameter
1 | Continuous Output Power | 1000W |
2 | Peak Output Power | 2000W |
3 | Output Voltage | 220V/50HZ AC pure sine wave or AC 110V/60HZ DC 12V10A 5V 2A 24V20A |
4 | Battery Model | Lithium-ion 18650 16P7S(3.7V 2600mAh) |
5 | Battery Capacity | 25.9V 41.6AH |
6 | Working Life | 70% @ 1000 cycle |
7 | Charging time | 8-9 H(29.4V 5A Charger) 5-6 H(29.4V 8A Charger) |
8 | Charging Voltage and current | DC 10-40V 8A ( wind, solar energy and car charger) |
9 | Protection | Over-voltage, low-voltage, over temperature, overload, AC short circuit protection and automatic recovery |
10 | Working environment | -20~60℃ |
11 | LED lighting | LED 1 W |
12 | Heat Dispatch methods | Cooling Fan |
13 | Dimension( mm) | 345*246*172(L*H*W) |
14 | Weight(kg) | 8.0 |
Greenbar Display
