- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Lantern
- Model Number:
- GL-LED-SMD5050-1-RGB
- Type:
- LED
- Package Type:
- Surface Mount
- Max. Forward Voltage:
- 3.2-3.4v
- Max. Reverse Voltage:
- 5V
- Max. Forward Current:
- 150mA
- Max. Reverse Current:
- 10uA
- View angle:
- 120 degree
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 1X1X1 cm
- Gross weight per batch:
- 0.6 kg

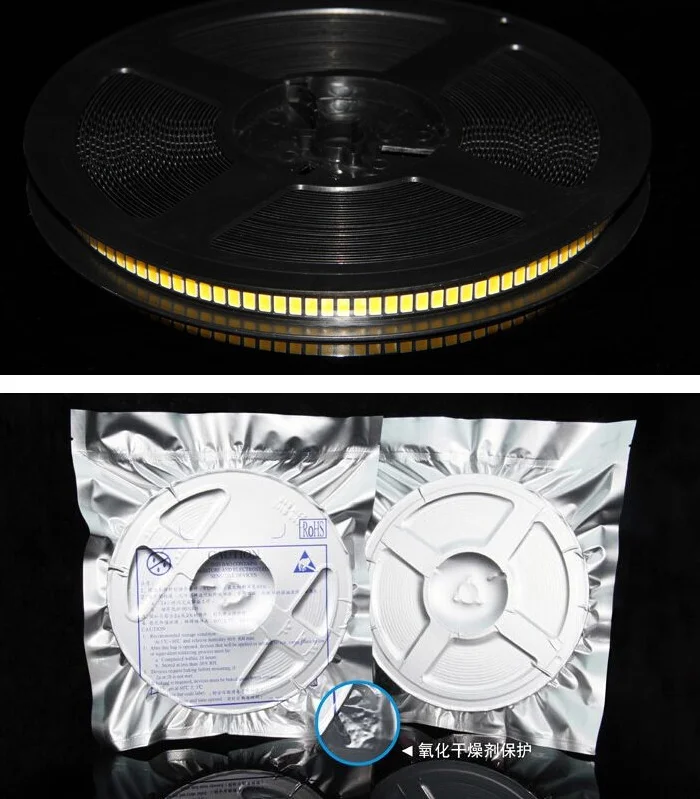

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10000000 >10000000 Est. Time(days) 5 To be negotiated
High power 1W 5050 3 chips smd rgb led 5050 SMD LED rgb 1watts
5050 1W RGB LED
Features
Typical Applications
•LCD backlights
Flux Characteristics at 150mA, TJ= 25°C
Radiation Pattern | Color | Part Number | Luminous Flux ΦV (lm) | |
Emitter | Minimum | Typical | ||
Lambertian | Red | AP5050SCP- 1LERGB | 23 | 27 |
Green | 32 | 38 | ||
Blue | 7.5 | 9 | ||
• Maintains a tolerance of ±7% on flux and power measurements.
• Please do not drive at rated current more than 1 second without proper heat sink.
Optical Characteristics at 150mA, TJ= 25°C
Color | Dominant Wavelength λd | Total Included Angle (degrees) θ0.90V | Viewing Angle (degrees) 2 θ1/2 | ||
Min. | Typ. | Max. | |||
Red | 620 nm | 623 nm | 630 nm | 160 | 140 |
Green | 525 nm | 530 nm | 535 nm | 160 | 140 |
Blue | 455 nm | 458 nm | 460 nm | 160 | 140 |
• Maintains a tolerance of ± 1nm for dominant wavelength measurements.
Electrical Characteristics at 150mA, TJ= 25°C
Color | Forward Voltage VF (V) | ||
Min. | Typ. | Max. | |
Red | 1.9 | 2.2 | 2.5 |
Green | 3.0 | 3.3 | 3.6 |
Blue | 2.9 | 3.2 | 3.5 |
