Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- OEM
- Bulb Type:
- LED
- Battery Type:
- Lead-acid
- Material:
- Iron
- Usage:
- Camping
- Certification:
- CE
- Specifications:
- 63W
- Warranty(Year):
- 5-Year
- Product Name:
- led strip light
- light source:
- SMD 2835
- power:
- 24W/40W/63W/85W
- size:
- 2FT/4FT/8FT
- Certificate:
- ETL/DLC
- Voltage:
- 120-277V
- CCT:
- 3000K-6000K
- Dimmable:
- 0-10V
- diffuser:
- milk prismatic acrylic
- emergency kits:
- available
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 245.8X16.5X14.1 cm
- Single gross weight:
- 7.0 kg
- Package Type:
- Standard export cartonled strip light
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 501 - 1000 1001 - 3000 >3000 Est. Time(days) 15 15 15 To be negotiated

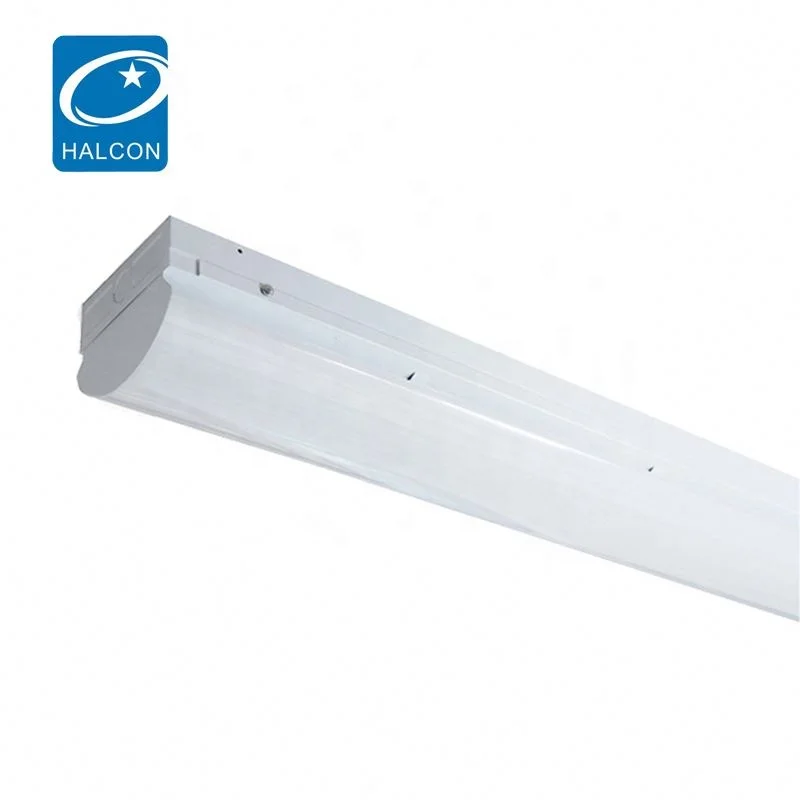

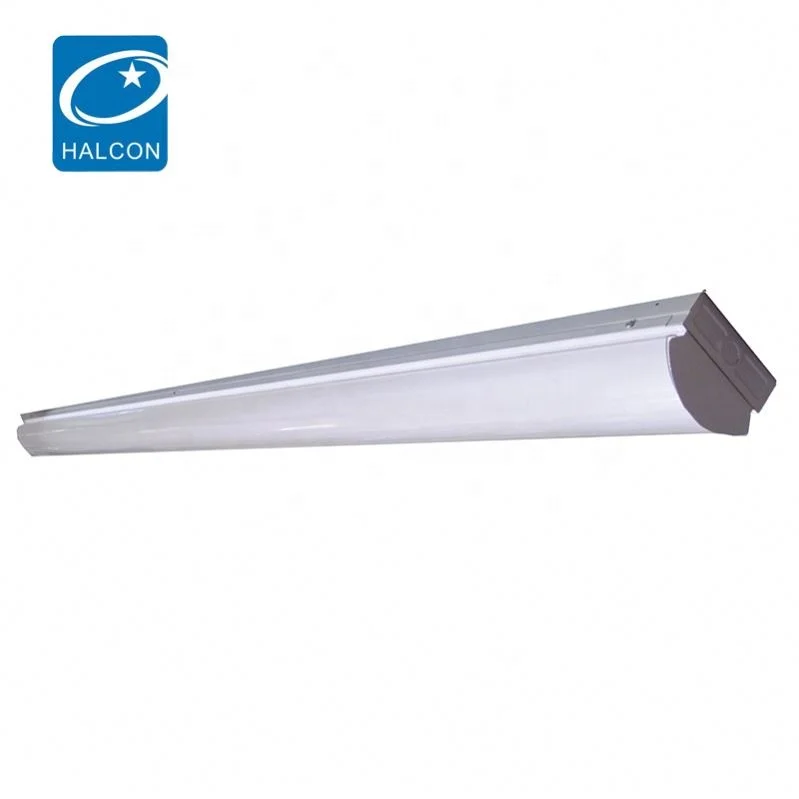

CONSTRUCTION
*Die formed of 0.5mm cold-rolled steel body
*All steel surface are painted after fabrication with high gloss backed white matte powder painted.
*High reflectance backed white acrylic paint finished
*High-diffusion light-milky PC diffuser
PRODUCT DISCRIPTION
* ETL & DLC listed; With LM79 & LM80;
* High luminous efficacy 110 lm/w or 130lm/w;
* 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
* PF>0.90
* driver efficiency>87%;THD<20%;
* Installation: Surface mounted or Suspended
* Suitable for dry/damp location
* Designed for office, conference room etc.
* CCT: 3000K-6000K
* Lifetime: 5 years
Model No | A | B | C | WATTAGE | Efficiency |
HG-L206-XXX | 618mm | 115mm | 90mm | 18W | 110lm/w |
HG-L206/DM-XEE | 1206mm | 115mm | 90mm | 24W | 110lm/w |
HG-L206/DM-XE | 1206mm | 115mm | 90mm | 40W | 110lm/w |
HG-L206/DM-XY | 2438mm | 115mm | 90mm | 63W | 110lm/w |
HG-L206/DM-XXE | 2438mm | 115mm | 90mm | 85W | 110lm/w |
HG-L206/DM-XE-2 | 1206mm | 115mm | 90mm | 36W | 130lm/w |
HG-L206/DM-XY-2 | 2438mm | 115mm | 90mm | 63W | 130lm/w |
HG-L206/DM-XXE-2 | 2438mm | 115mm | 90mm | 85W | 130lm/w |
OPTIONS:
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
TECHNICAL DATA
Item Number | HG-L206-XXX | HG-L206/DM-XEE | HG-L206/DM-XE | HG-L206/DM-XY | HG-L206/DM-XXE | HG-L206/DM-XE-2 | HG-L206/DM-XY-2 | HG-L206/DM-XXE-2 |
Total Input Watt | 18W | 24W | 40W | 63W | 85W | 36W | 63W | 85W |
Size | 2FT | 4FT | 4FT | 8FT | 8FT | 4FT | 8FT | 8FT |
Calculated L70 | 50,000 hrs | |||||||
Delivered Lumens | 1980LM | 2640LM | 4400LM | 6930LM | 9350LM | 4680LM | 8190LM | 11050LM |
Luminaire Efficacy Rating | 110LM/W | 130LM/W | ||||||
Correlated Color Temperature | 3000K-5500K | |||||||
Color Rendering Index | >80 | |||||||
Q1: Does your products are ETL/CETL ,UL/CUL or EMC Certified?
A: Yes, 90% of our products are ETL/CETL, UL/CUL or EMC Certified for North America Market & Europe market.
Q2: Are you the real manufacturer?
A: Yes, we are a real manufacturer with 10 years business for making LED High Bay, LED Troffer, LED Strip, LED Batten, LED Linear Light, LED under cabinet light & LED Ceiling Light etc.
Q3: What"s the lifetime on the products?
A: We offer 50000 hours warranty to our clients.
Q4: Can I have a sample order of the LED Lights?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: Do you have any MOQ limited for LED Lights?
A: LOW MOQ, 1 pcs for sample checking is available.
Q6: What about the lead time?
A: It takes 3-5 days for sample, and 20-30 days for order making.
Q7: Is it OK to print my logo on the LED lights?
A: Yes, we can print your logo on the products and OEM packaging.
Q8: How to Pay?
A: We accept T/T, L/C for large quantities order, and Western Union and Paypal for small quantities order.
