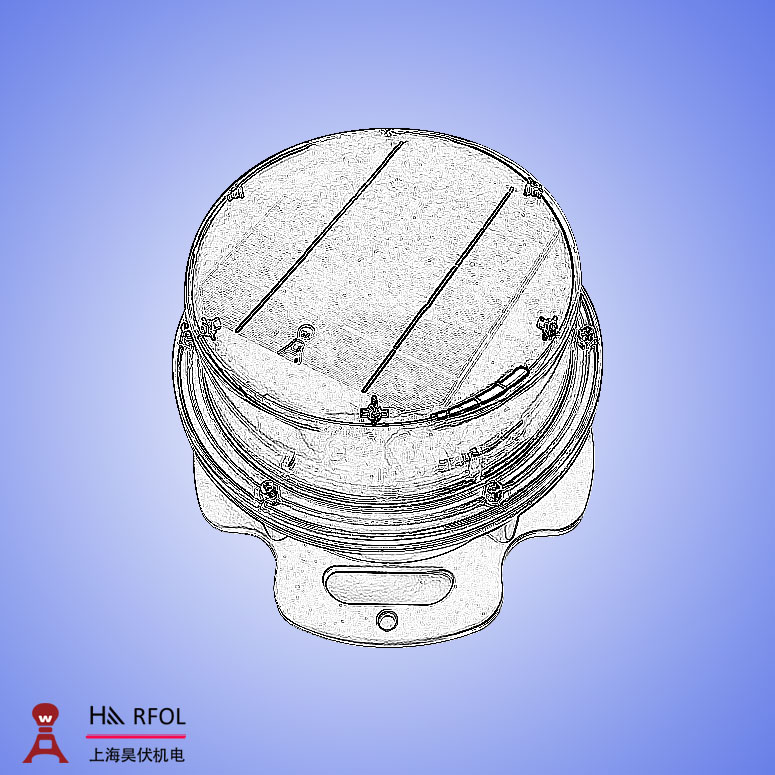

Solar Obstruction Light/Solar Obstacle Light/Solar Warning Light
Click on the image to view the original image
Product: views:5Solar Obstruction Light/Solar Obstacle Light/Solar Warning Light
Branch: HARFOL
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:52
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC3.6V(solar Power)
Lamp Power(W):
5
Color Temperature(CCT):
warm
Beam Angle(°):
360 Horizontal Beam Angle
IP Rating:
IP65
Certification:
CE, ETL, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
HARFOL
Model Number:
SOL32S
Supply Ability
Supply Ability:
2500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton/Wooden Box
Port
Shanghai
Lead Time:
1 week

Solar aviation obstruction light/Solar warning light/Solar obstacle light



Product Introduction

SOL32S is solar obstruction light which is compliant to ICAO and Faa standard. It is applying to steel tower (Electrical tower, Communication tower, Microwave tower), chimney tower (Thermal power plants, coking plants, chemical plants etc.), high buildings, large brigs, large port machinery, construction machinery, wind turbines and other area which request aircraft warning.



Features:

Advantages
  • Light source uses high power LED. Long lifetime, high light efficiency and environment protection.
  • Using a large arc mirror so as to control light within required effective range. It can reduce light pollution and improve light utilization.
  • It is drived by LED constant current to extend LED life.
  • Light house is made of PC material. It is able to anti-UV, good at impact strength,thermal stability and flame retardancy .
  • Built in industrial-grade NiMH battery, no external power supply.
  • Intelligent charge and discharge management, strong endurance.
  • Automatically control by photocell, On work at night, Off work during the day.
  • It is with a high-altitude anti-dropping device to ensure easy and secure on site in installation.
  • High reliability seal design to meet the IP66 protection rating.



Main Specification

Light Model                                                       SOL32S                                                                                .

Light source                                              Cree LED

Intensity                                                    32.5cd

Horizontal Output (degrees)                 360

Vertical Output (degrees)                      10

LED color                                                  Red as standard. Other colors available on request.

LED lifetime                                              >100,000hours

Operation mode                                      Flashing 30 times/minute(default)

Electrical characteristics                                                                                                            .

Solar panel                                               Monocrystalline silicon 4W/5V

Battery                                                      NiMH 3.6V/8AH

Photocell                                                  500Lux

Mechanical characteristics                                                                                                       .

Body material                                         alloy aluminum

Lens Material                                          PC

Waterproof                                             IP66

Weight                                                     5KG

Dimension

Mounting way                                        Surface mounting

Working temperature                           -40  °C ~ +70  °C

Humidity                                                 10% ~ 95%

Wind speed                                            Up to 150mph(240kph)
