Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC3.6V(solar Power)
- Lamp Power(W):
- 5
- Color Temperature(CCT):
- warm
- Beam Angle(°):
- 360 Horizontal Beam Angle
- IP Rating:
- IP65
- Certification:
- CE, ETL, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- HARFOL
- Model Number:
- SOL32S
- Supply Ability:
- 2500 Piece/Pieces per Month
- Packaging Details
- Standard Carton/Wooden Box
- Port
- Shanghai
- Lead Time:
- 1 week

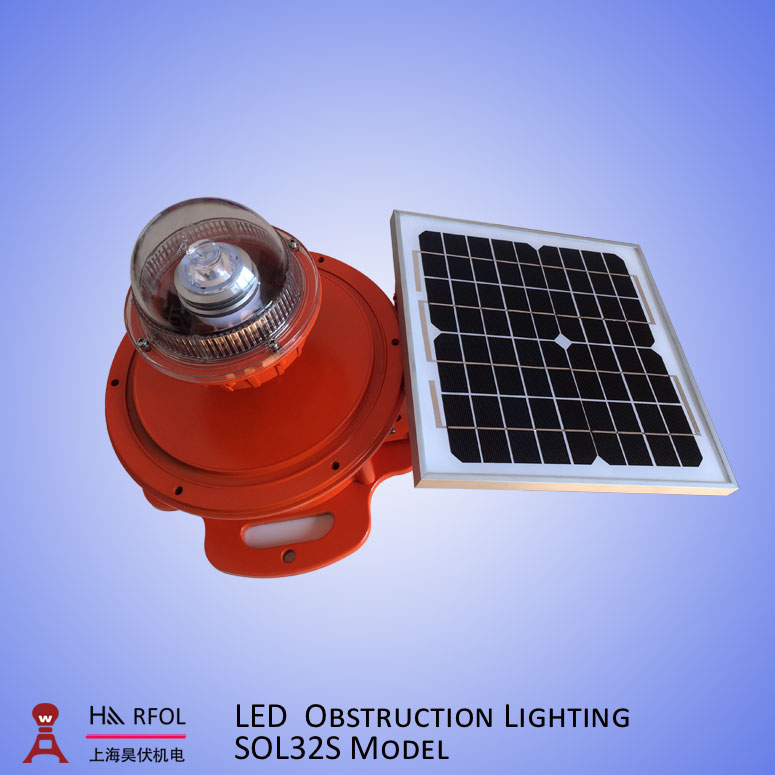

Solar aviation obstruction light/Solar warning light/Solar obstacle light
Solar obstruction lights/solar double obstruction light
This Harfol light fixture is solar aviation obstruction light. It is powered by solar battery. No underground wiring, offering enormous benefits for end-users. It is complying with ICAO and FAA international standards. This light can be used for marking obstacles which pose a threat to aircraft, such as telecom towers, buildings, wind turbines, power transmission towers, airports and general aviation warning purposes.
This advanced light uses tough, durable UV stabilized polycarbonate. Its light source is first brand Cree high intensity LEDs. It is specifically designed to maximize light intensity and uniformity. It has high-performance solar modules mounted within the lens so as to maximize solar collection and provide reliable operation in a range of environmental conditions. Even in rainy days, this light is able to continuously work for 5 days.
Harfol’s LED obstruction light offer an ultra bright, energy efficiency, reliability and freedom from maintenance mean that Harfol light will save you money over time!
- Light source uses America Cree brand LED with high power. It has extremely high light efficiency and saving energy.
- One single LED and lens can reach optical requirements, and reduce light pollution so as to improve light efficiency.
- Using LED constant current drive technology and aluminum cooling technology so as to maximize LED life.
- Light house is made of PC material. It is able to anti-UV, good at impact strength, thermal stability and flame retardancy.
- High reliability seal design to meet IP66.
- Built in industrial-grade acid battery, free of maintenance, no external power supply.
- Intelligent charge and discharge management, strong endurance.
- Automatically control by photocell, On work at night, Off work during the day.
Specifications
Light characteristics SOL32S .
Light source Cree LED
Intensity 32.5cd
Horizontal Output (degrees) 360
Vertical Output (degrees) 10
LED color Red as standard. Other colors available on request.
LED lifetime >100,000hours
Operation mode Steady burning
Electrical characteristics .
Solar panel Monocrystalline silicon 10W/17.6V
Battery 12V/7AH battery
Photocell 500Lux
Mechanical characteristics .
Body material alloy aluminum
Lens Material PC
Waterproof IP66
Weight 9KG
Dimension
Mounting way Surface mounting
Working temperature -40C ~ +70C
Humidity 10% ~ 95%
Wind speed Up to 150mph(240kph)
5 years warranty.
