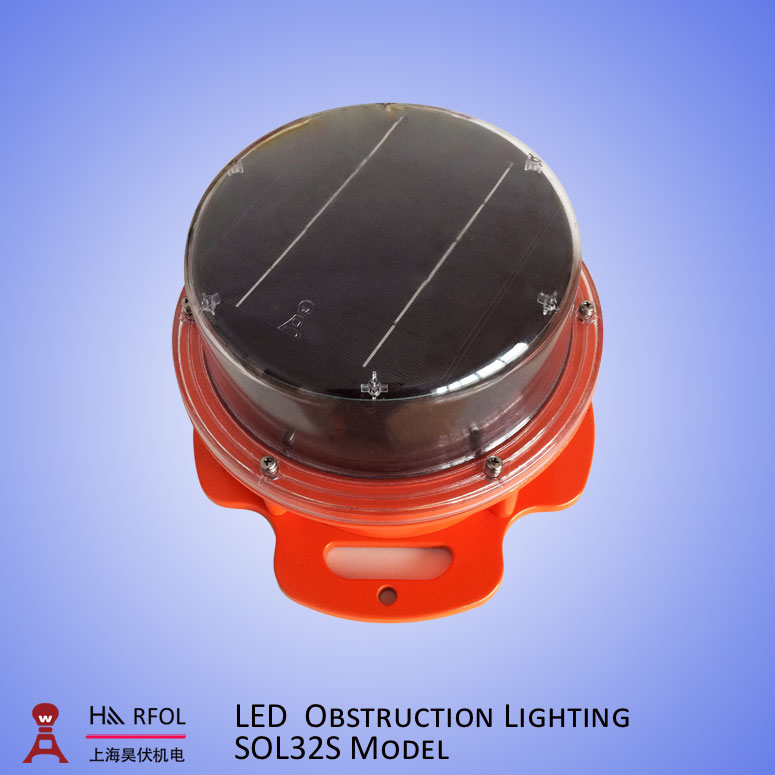

Solar aviation obstruction light/Solar warning light/Solar obstacle light
SOL32S is solar obstruction light which is compliant to ICAO and Faa standard. It is applying to steel tower (Electrical tower, Communication tower, Microwave tower), chimney tower (Thermal power plants, coking plants, chemical plants etc.), high buildings, large brigs, large port machinery, construction machinery, wind turbines and other area which request aircraft warning.
- Light source uses high power LED. Long lifetime, high light efficiency and environment protection.
- Using a large arc mirror so as to control light within required effective range. It can reduce light pollution and improve light utilization.
- It is drived by LED constant current to extend LED life.
- Light house is made of PC material. It is able to anti-UV, good at impact strength,thermal stability and flame retardancy .
- Built in industrial-grade NiMH battery, no external power supply.
- Intelligent charge and discharge management, strong endurance.
- Automatically control by photocell, On work at night, Off work during the day.
- It is with a high-altitude anti-dropping device to ensure easy and secure on site in installation.
- High reliability seal design to meet the IP66 protection rating.
Light characteristics SOL32S .
Light source Cree LED
Intensity 32.5cd
Horizontal Output (degrees) 360
Vertical Output (degrees) 10
LED color Red as standard. Other colors available on request.
LED lifetime >100,000hours
Operation mode Flashing 30 times/minute(default)
Electrical characteristics .
Solar panel Monocrystalline silicon 4W/5V
Battery NiMH 3.6V/8AH
Photocell 500Lux
Mechanical characteristics .
Body material alloy aluminum
Lens Material PC
Waterproof IP66
Weight 5KG
Dimension
Mounting way Surface mounting
Working temperature -40 ℃~ +70 ℃
Humidity Up to 95%
Wind speed Up to 150mph(240kph)
5 years warranty.
