Home > Products > HARFOL LED based medium intensity aviation obstruction light/aircraft warning light for telecom tower/chimney/building

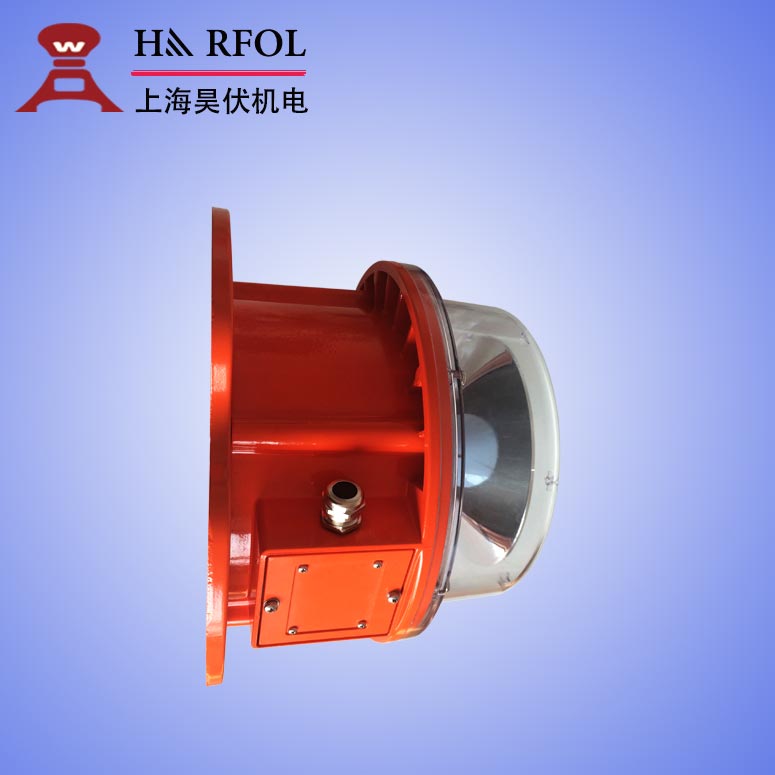

HARFOL LED based medium intensity aviation obstruction light/aircraft warning light for telecom tower/chimney/building
Click on the image to view the original image
Product: views:5HARFOL LED based medium intensity aviation obstruction light/aircraft warning light for telecom tower/chimney/building
Branch: HARFOL
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:53
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;48VDC;24VDC
Lamp Power(W):
30
Lamp Luminous Flux(lm):
2000cd
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
100%
Color Temperature(CCT):
none
Beam Angle(°):
360
IP Rating:
IP66
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
none
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
HARFOL
Model Number:
L864 MILxxS
Products name:
aviation obstruction light aircraft warning light
ICAO:
medium intensity light Type B/C
FAA:
FAA L864
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai
Lead Time:
Shipped in 7 days after payment
Introduction

Aircraft warning lights are high-intensity lighting devices that are attached to tall structures and are used as collision avoidance measures. Such devices make structures more visible to passing aircraft and are usually used at night, although they may be used during the day as well. These lights need to be of sufficient brightness in order to be visible for miles around the structure.

Specification
Key Specification
Product
Medium Intensity Obstruction Light
Intensity
2000cd
Light source
Cree high power LED
Light color
Aviation red
Power
30W
Supply voltage
110~240VAC;
48VDC;24VDC;
Waterproof
IP66
LED lifetime
100,000 hours
Intensity
2000±25%cd
Standard
ICAO: Medium Intensity Type B/C
FAA: L864
Product Description

Product Details

Harfol MIL2KS LED obstruction lights can be red flashing or steady burning.Wireless synchronization and day/night control either from photocell or by external controller. Vibration resistant and operates over a wide temperature range. Protected against lightning strikes. These series lights can be applying for marking telecom towers, buildings, wind turbines, airport, fencing and other obstacles.

Product Details

MIL2KS is 2000cd red medium intensity light. It is compliant to ICAO and FAA L-864 standard. Utilizing state-of-the-art optical design to achieve the most compact and efficient light.

Harfol’s LED obstruction light offer an ultra bright,energy efficiency, reliability and freedom from maintenance mean that Harfol light will save you money over time!

Features:

  Light source uses America Cree brand LED with high power. It has extremely high light efficiency and saving energy.

  A large arc reflector can limit light beam within effective range, reducing light pollution and improving light efficiency.
➢  Using LED constant current drive technology and aluminum cooling technology so as to maximize LED life.
  Light house is made of PC material. It is able to anti-UV, good at impact strength, thermal stability and flame retardancy.
  High reliability seal design to meet IP66.
 It is with integrated junction box which is convenient for customer connection.
  Option function: light sensor for day/light operation.
                                    Optional fault alarm output.

                                    Optional GPS Synchronization.


Specification
Light model
MIL2KS
Light source
Cree High Power LED
Intensity
2000±25%cd
Horizontal Output(degree)
360
Vertical Output(degree)
3
LED color
Red as standard.
Other colors available on request.
Operation mode
Steady burning(default)
Flashing available on request.
Electrical characteristics
Operating voltage
110~240VAC, 24VDC, 48VDC
Power consumption
30W
Driven mode
Constant current
Mechanical characteristics
Body material
Die casting aluminum
Lens material
PC UV Stabilize
Weight
7.00KG
Dimension
See diagram
Working temperature
-40˚C~+70˚C
Humidity
100% with condensation
Wind speed
Up to 150mph(240kph)
Waterproof
IP66
Our Service

We provide 5 years warranties for our products.

Installation Process
Applications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 pcs.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
