- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC
- Lamp Power(W):
- 30
- Lamp Luminous Flux(lm):
- 2000cd
- Lamp Luminous Efficiency(lm/w):
- 100%
- CRI (Ra):
- 100%
- Color Temperature(CCT):
- red
- Beam Angle(°):
- 360
- IP Rating:
- IP66
- Certification:
- CE, EMC, ETL, LVD, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Die-casting Aluminum
- Base Type:
- none
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- HARFOL
- Model Number:
- MILxxS L864
- Product Name:
- Red flashing aviation obstruction light
- Mounting:
- Surface Mounting
- International standard:
- ICAO(Aerodromes Annex 14)Medium Intensity Light TYPE-B/C/ FAA L-864
- Visual range:
- 10~20km
- Our Experience:
- 10 years experience in this field
- Our Advantage:
- High Quality Standard Products With Competitive Factory Price
- HS Code:
- 85308 00000
- Application:
- Telecom Tower/High Building/Power Transmission
- Application more:
- Wind Turbine/Airport/Chimney/Crane/etc
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- HS Code: 85308 00000
1) each one put in inner box
2) outer box is 5 layer carton. Cartons size is decided by quantity of inner box.
3) All the packages have passed Broken Test.
- Port
- Shanghai Port/ Other Ports In China
- Lead Time:
- Shipped in 7 days after payment
Aircraft warning lights are high-intensity lighting devices that are attached to tall structures and are used as collision avoidance measures. Such devices make structures more visible to passing aircraft and are usually used at night, although they may be used during the day as well. These lights need to be of sufficient brightness in order to be visible for miles around the structure.
Key Specification | |
Product | Medium Intensity Obstruction Light |
Intensity | 2000cd |
Light source | Cree high power LED |
Light color | Aviation red |
Power | 30W |
Supply voltage | 110~240VAC; 48VDC;24VDC; |
Waterproof | IP66 |
LED lifetime | 100,000 hours |
Intensity | 2000±25%cd |
Standard | ICAO: Medium Intensity Type B/C FAA: L864 |
Product Details

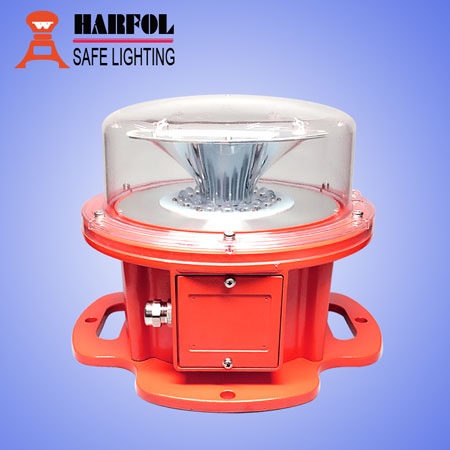

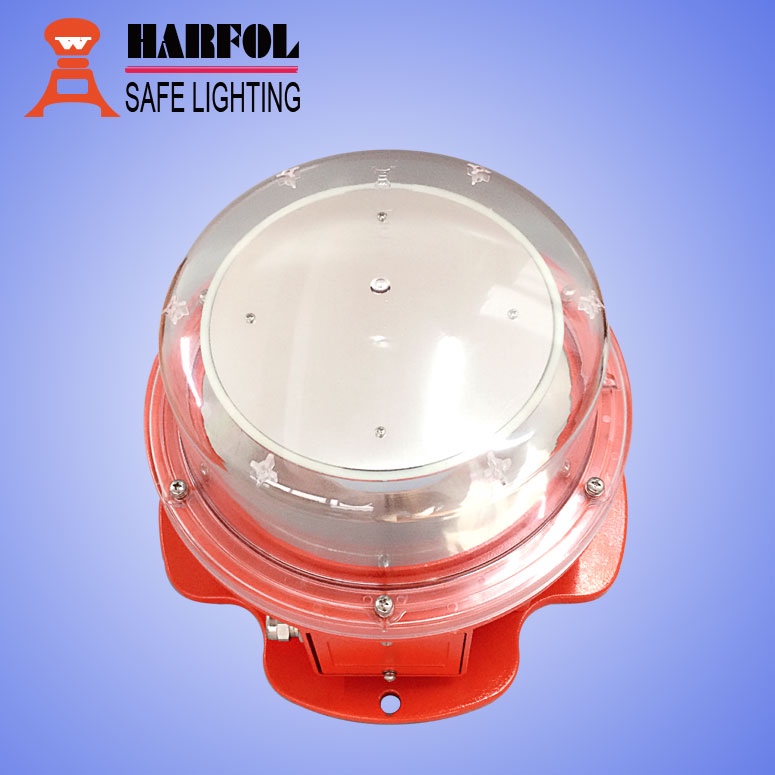

Harfol MIL2KS LED obstruction lights can be red flashing or steady burning.Wireless synchronization and day/night control either from photocell or by external controller. Vibration resistant and operates over a wide temperature range. Protected against lightning strikes. These series lights can be applying for marking telecom towers, buildings, wind turbines, airport, fencing and other obstacles.
Product Details
MIL2KS is 2000cd red medium intensity light. It is compliant to ICAO and FAA L-864 standard. Utilizing state-of-the-art optical design to achieve the most compact and efficient light.
Harfol’s LED obstruction light offer an ultra bright,energy efficiency, reliability and freedom from maintenance mean that Harfol light will save you money over time!
Features:
➢ Light source uses America Cree brand LED with high power. It has extremely high light efficiency and saving energy.
➢ A large arc reflector can limit light beam within effective range, reducing light pollution and improving light efficiency.
➢ Using LED constant current drive technology and aluminum cooling technology so as to maximize LED life.
➢ Light house is made of PC material. It is able to anti-UV, good at impact strength, thermal stability and flame retardancy.
➢ High reliability seal design to meet IP66.
➢ It is with integrated junction box which is convenient for customer connection.
➢ Option function: light sensor for day/light operation.
Optional fault alarm output.
Optional GPS Synchronization.
Specification | |
Light model | MIL2KS |
Light source | Cree High Power LED |
Intensity | 2000±25%cd |
Horizontal Output(degree) | 360 |
Vertical Output(degree) | 3 |
LED color | Red as standard. Other colors available on request. |
Operation mode | Steady burning(default) Flashing available on request. |
Electrical characteristics | |
Operating voltage | 110~240VAC, 24VDC, 48VDC |
Power consumption | 30W |
Driven mode | Constant current |
Mechanical characteristics | |
Body material | Die casting aluminum |
Lens material | PC UV Stabilize |
Weight | 7.00KG |
Dimension | See diagram |
Working temperature | -40˚C~+70˚C |
Humidity | 100% with condensation |
Wind speed | Up to 150mph(240kph) |
Waterproof | IP66 |
We provide 5 years warranties for our products.
Check below important tips before you placing an order :
1.Inquiry-Professional quotation. Please tell us your application for the product(Applying for tower/windturbine/crane/building/chimney/etc). Our sales will offer you with professional quotation basing on your application.
2. Confirm the price, lead time, artwork, payment term etc.
3.our sales send the Proforma Invoice with our seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection .
6. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.
7. Order can be say “finish” when you receive the goods and satisfy with them .
8. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 pcs.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
