Home > Products > Solar Aviation Obstruction Light LED Type

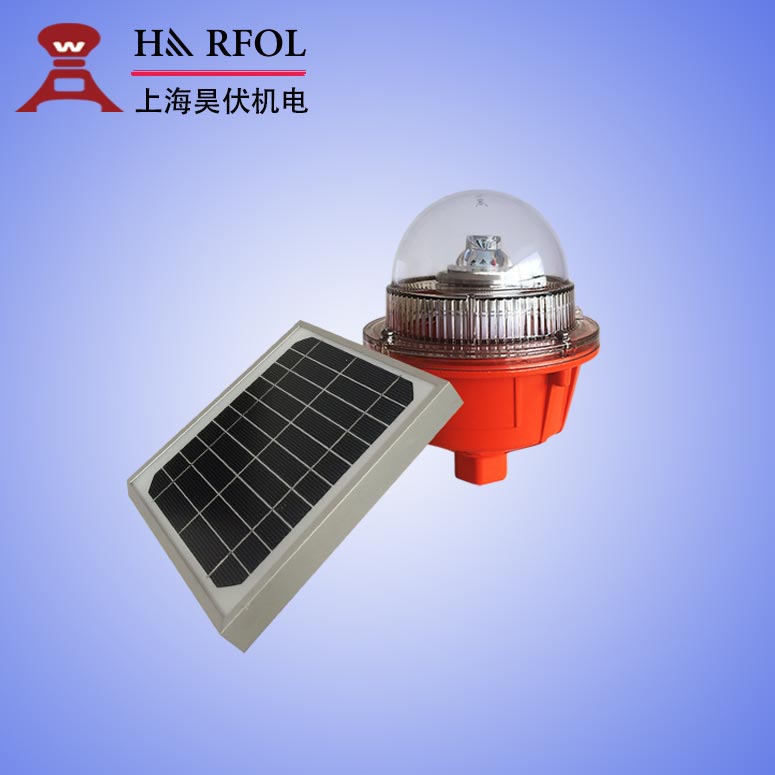

Solar Aviation Obstruction Light LED Type
Click on the image to view the original image
Product: views:4Solar Aviation Obstruction Light LED Type
Branch: HARFOL
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:53
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC3.6V(solar Power)
Lamp Power(W):
5
Lamp Luminous Flux(lm):
32cd
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
1
Color Temperature(CCT):
warm
Beam Angle(°):
360 Horizontal Beam Angle
IP Rating:
IP65
Certification:
CE, ETL, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
E27
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
HARFOL
Model Number:
SOL32S
Supply Ability
Supply Ability:
2500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton/Wooden Box
Port
Shanghai

Solar aviation obstruction light/Solar warning light/Solar obstacle light



Product Introduction

SOL32S is solar obstruction light which is compliant to ICAO and Faa standard. It is applying to steel tower (Electrical tower, Communication tower, Microwave tower), chimney tower (Thermal power plants, coking plants, chemical plants etc.), high buildings, large brigs, large port machinery, construction machinery, wind turbines and other area which request aircraft warning.



Features:

Advantages
  • Light source uses America Cree brand LED with high power. It has extremely high light efficiency and saving energy.
  • Using LED constant current drive technology and aluminum cooling technology so as to maximize LED life.
  • Light house is made of PC material. It is able to anti-UV, good at impact strength, thermal stability and flame retardancy.
  • Light house is made of PC material. It is able to anti-UV, good at impact strength,thermal stability and flame retardancy .
  • High reliability seal design to meet IP66.
  • Built in industrial-grade NiMH battery, free of maintenance, no external power supply.
  • Intelligent charge and discharge management, strong endurance.



Main Specification

Light Model                                                          SWL32S                                                                                .

Light source                                              Cree LED

Intensity                                                    32.5cd

Horizontal Output (degrees)                 360

Vertical Output (degrees)                      10

LED color                                                  Red as standard. Other colors available on request.

LED lifetime                                              >100,000hours

Operation mode                                      Flashing(default)

Electrical characteristics                                                                                                            .

Solar panel                                               Monocrystalline silicon 5W/5V

Battery                                                      NiMH 3.6V/5AH

Photocell                                                  500Lux

Mechanical characteristics                                                                                                       .

Body material                                         die casting aluminum

Lens Material                                          PC

Waterproof                                             IP66

Weight                                                     3KG

Dimension

Mounting way                                        Surface mounting

Working temperature                           -40  °C ~ +70  °C

Humidity                                                 10% ~ 95%

Wind speed                                            Up to 150mph(240kph)
