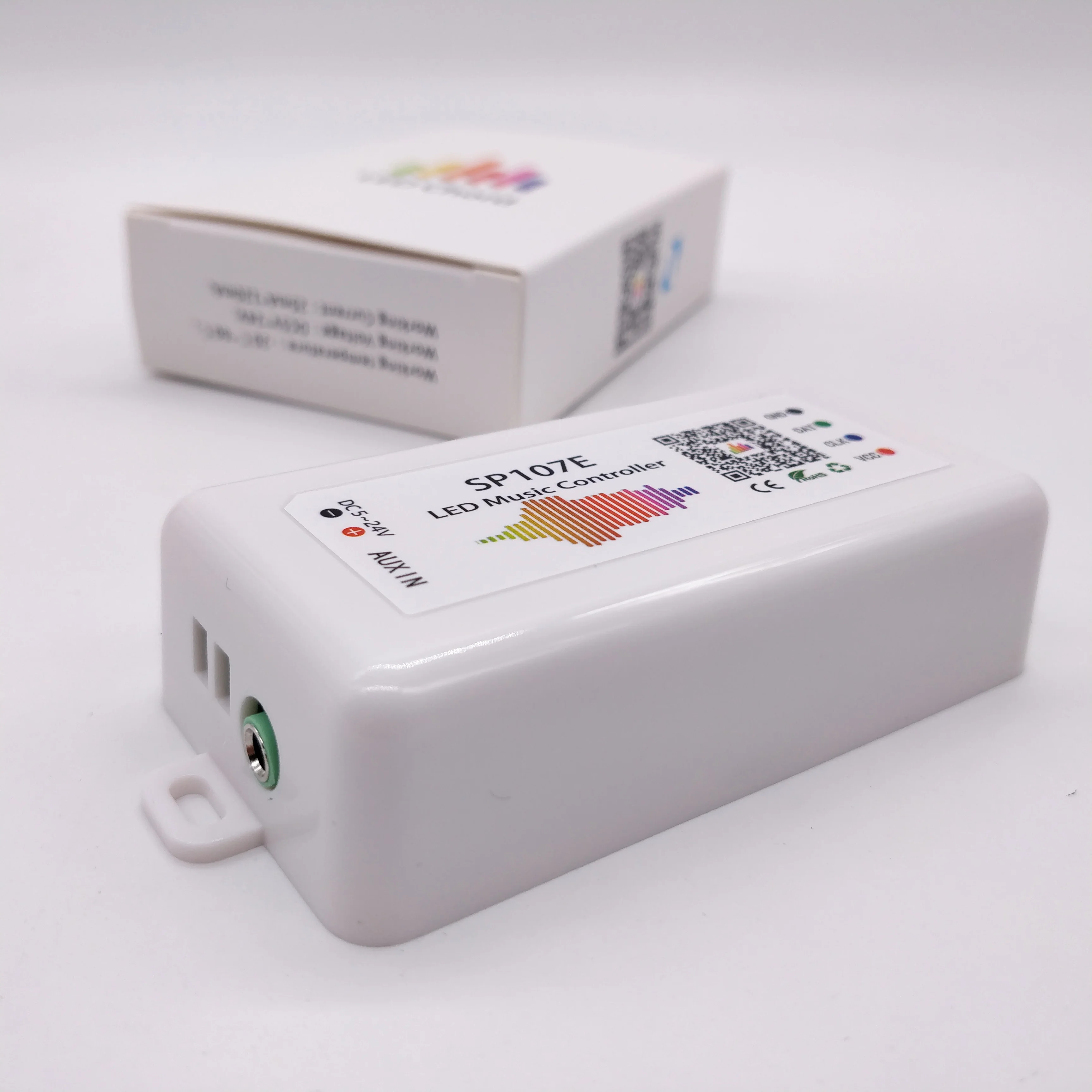

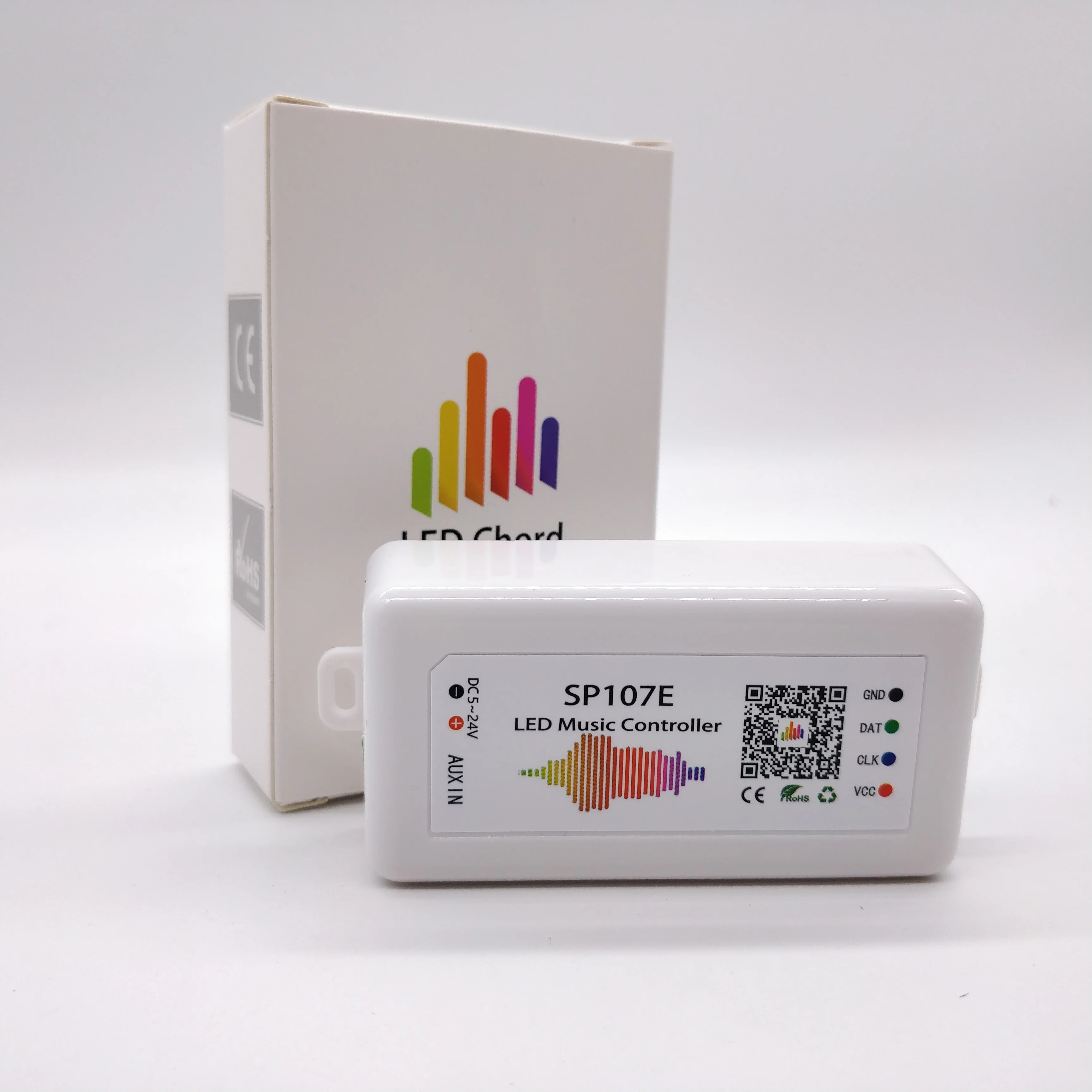

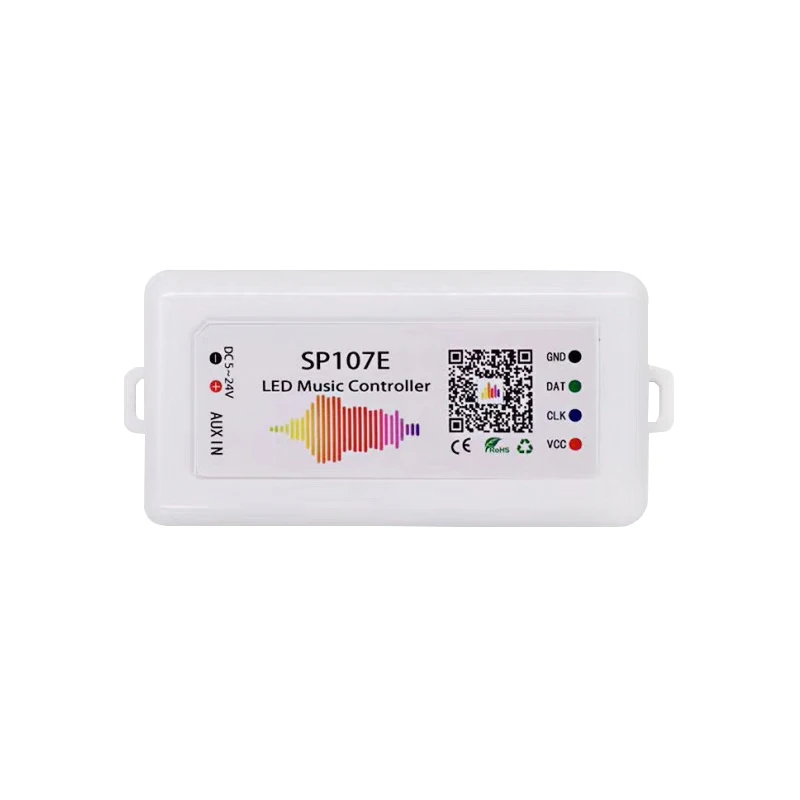

SP107E Bluetooth Music SPI Pixel light controller
1. Features:
1) Long distance APP remote control via Bluetooth;
2) Support almost every kind of one-wire or two-wire LED driver IC ;
3) Brightness adjustable, With 180 kinds of patterns and 28 kinds of color adjustable patterns;
4) Creatively usingfrom-image-to-effect method for user toDIY any effect;
5) Support setting pixel number and segments number, able to control up to 960 pixels;
6) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
7) User setting saving;
2. App control:
Both IOS version and Android OS version are available.
Requires IOS version 10.0 or later;
Requires Android OS version 4.4 or later;
Search”Led Chord”in App Store or Google pay or scan this QR code to download and install the App:
3. Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;

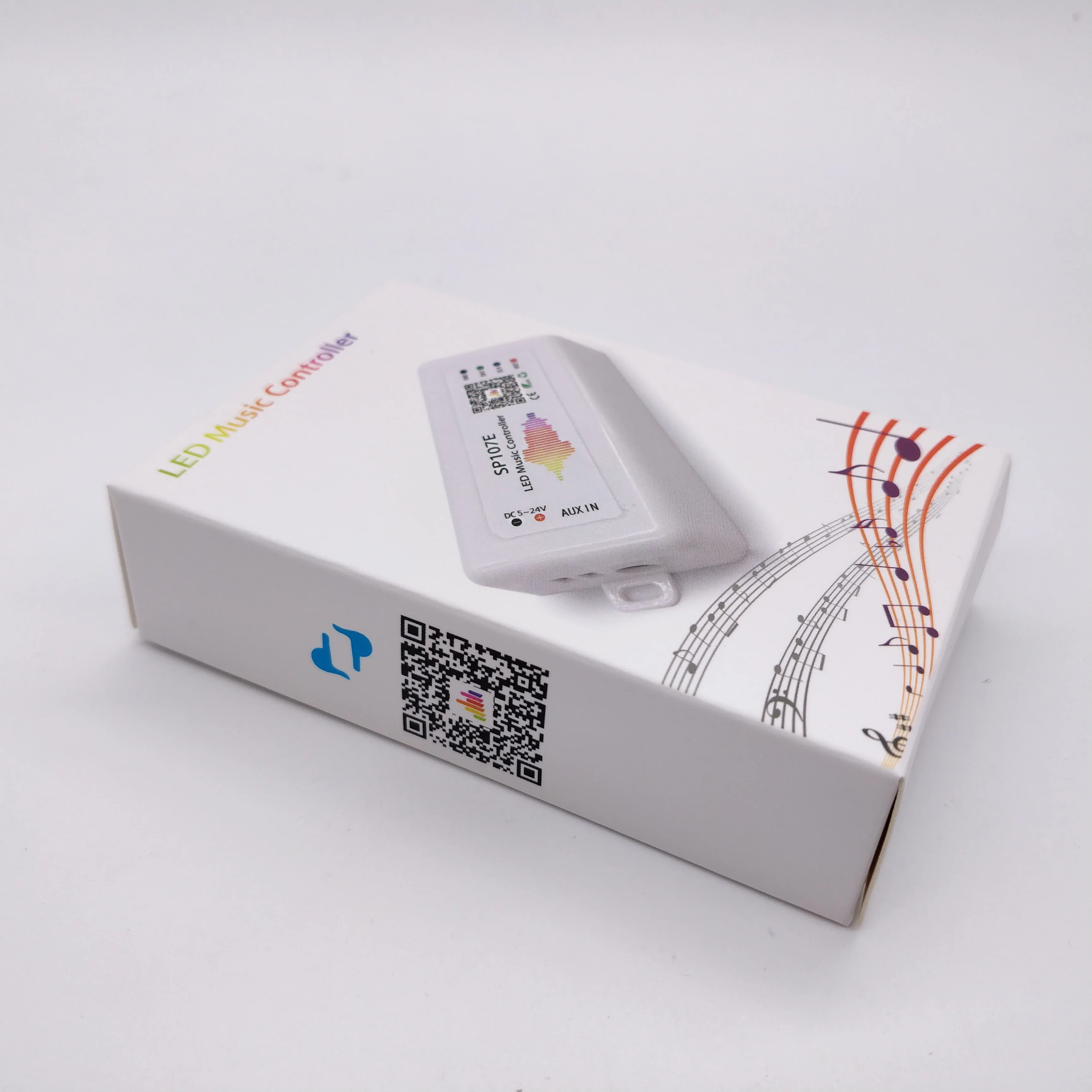

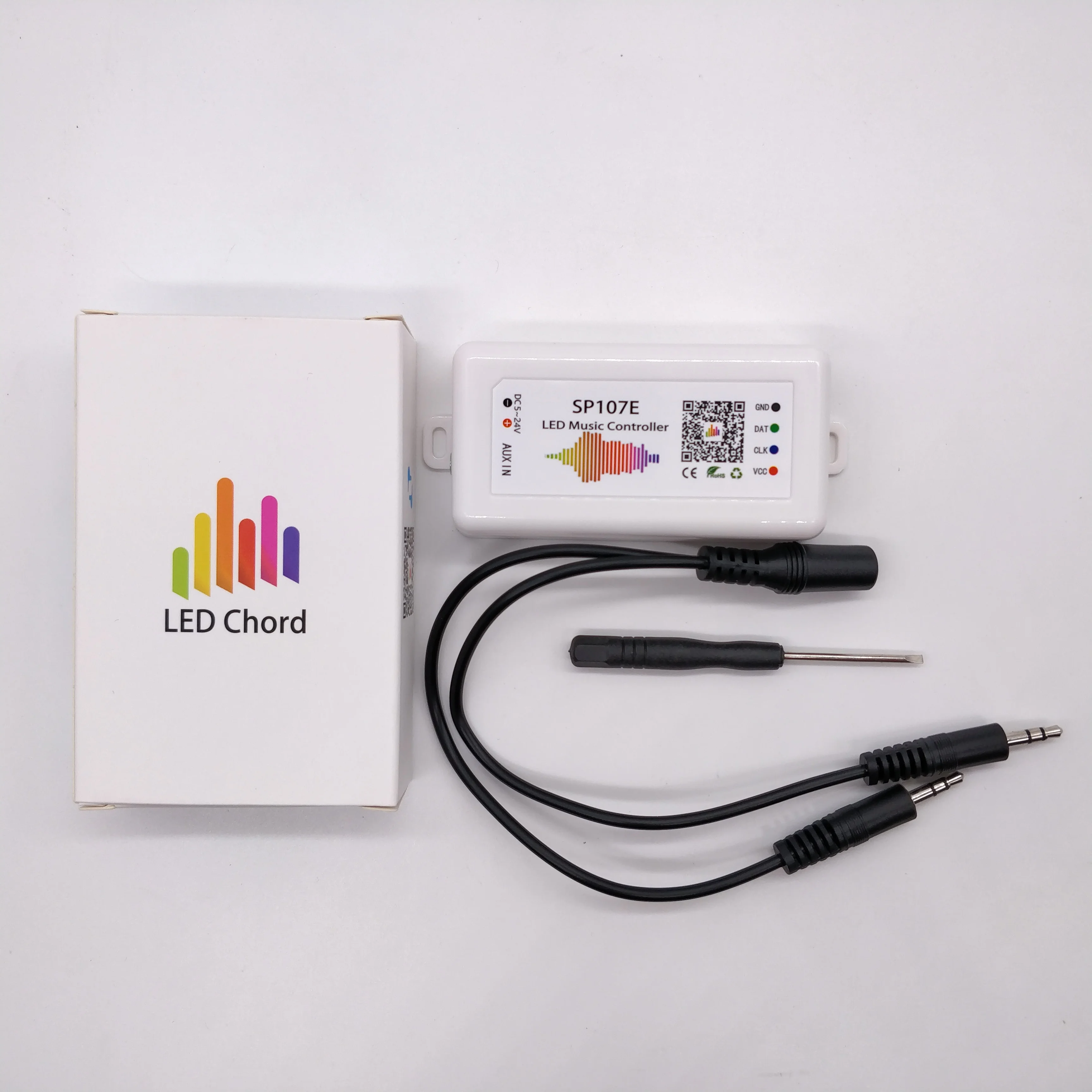

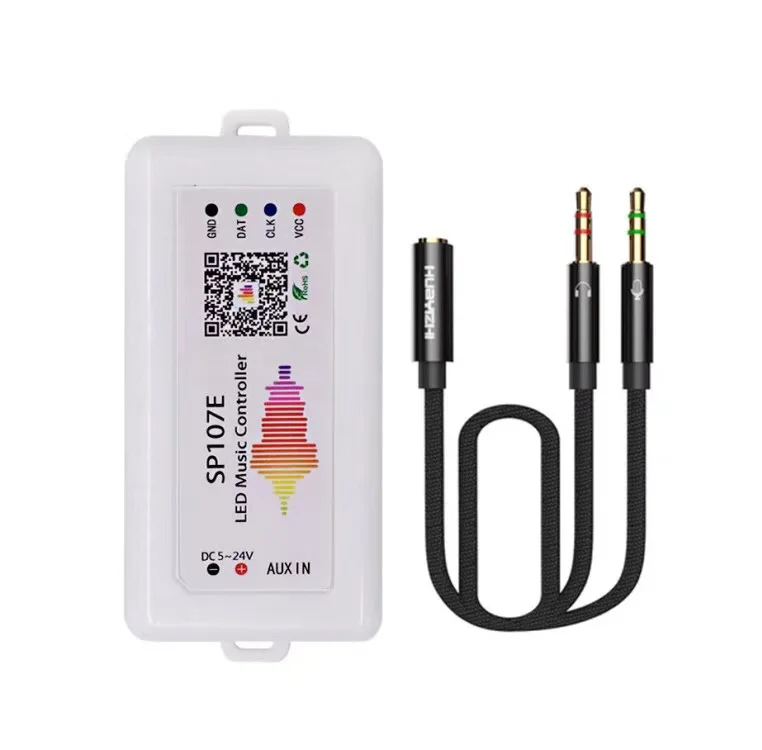

Package includes:
1x SP107E music bluetooth controller
1x User manual
(strip and power supply not include)
4. Instructions:

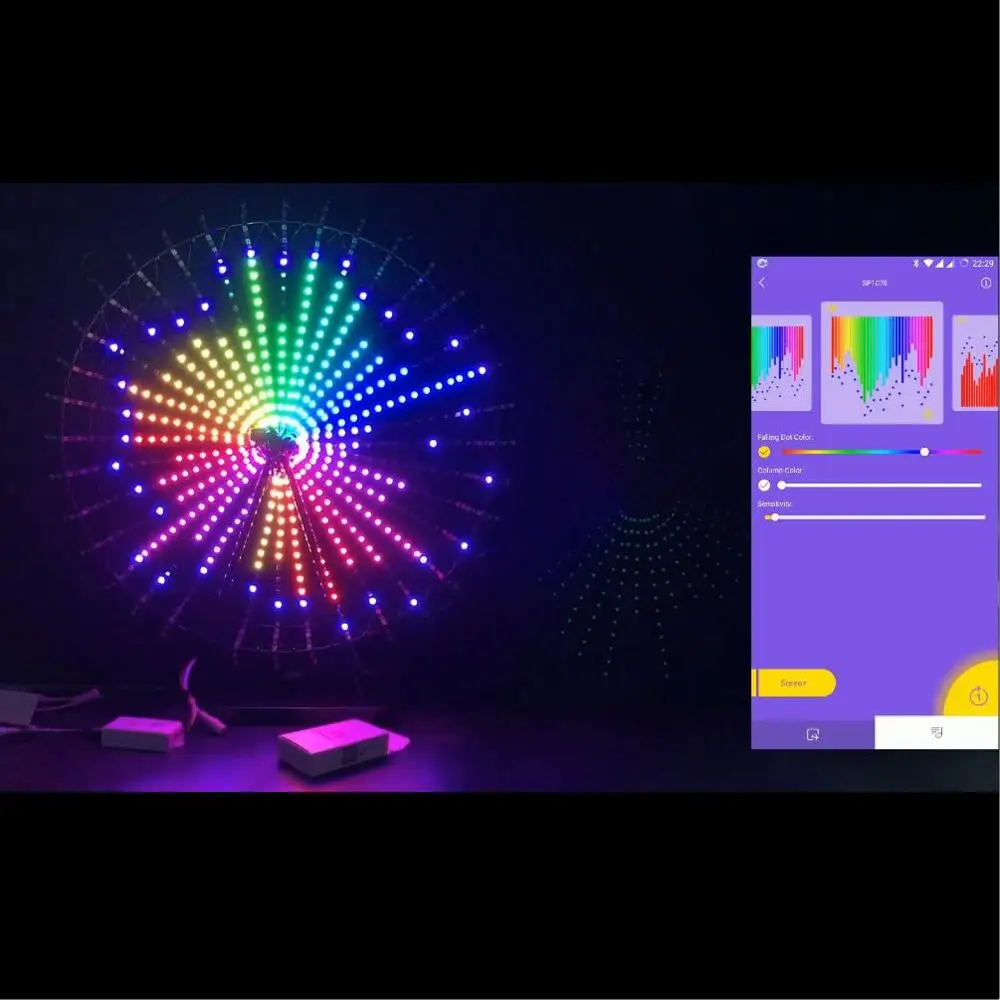

APP Operations:
1. Make sure you have turned on Bluetooth on your phone;
2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;

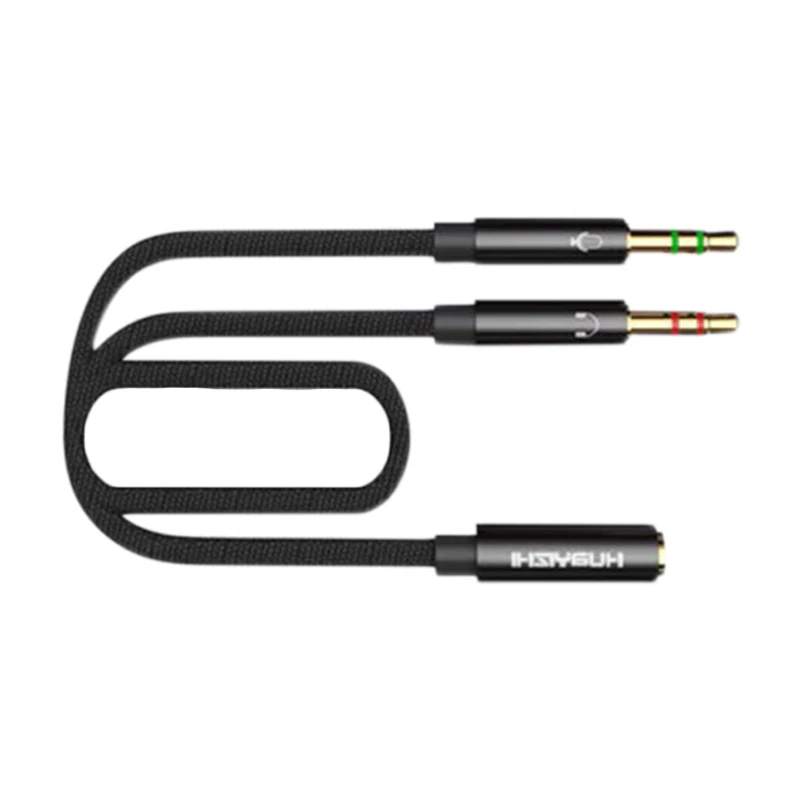

AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;
MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.
