T-1000S IC strip/pixel light program Controller
Product Specification
1.Input voltage:DC5V/7.5-24V
2.Singal port:3PIN connect port
3.Capacity:128MB-2GB
4.Format:FAT format
5.Size:L159*W90*H24mm
6.Package size:L170*W110*H40mm
7.Net weight:268g
8.Gross weight:300g
9.Connect method:Common anode
10.Connect way:Output for LED light, INPUT for power supply
Product Features
1Single-port outputcan support 2048 lights
2.Widely used for WS2812B LPD8806 6803 WS2811 WS2801 IC chip LED strip light
3.32mdash65536 GraySupport software Gamma correction
4.Support a variety of point, line, surface light source, supports a variety of rules, profiled processing
2.Widely used for WS2812B LPD8806 6803 WS2811 WS2801 IC chip LED strip light
3.32mdash65536 GraySupport software Gamma correction
4.Support a variety of point, line, surface light source, supports a variety of rules, profiled processing
5.Off-line(SD Card) control, play back content stored in the SD card
6.T-1000S store a maximum of 16 programscopy multiple files to the SD card in order, after formatting the SD card as ldquoFATrdquo format
7.Compatible with single line or double line chips
8.T-1000S can store up 16 files at most. Just copy the files sequentially to the SD card and name the files as: 00_1.led, 01_1.led, 02_1.led.
9.The cheap type only can use 2014LedEdit sofeware.The expensive type can use 2019LedEdit sofeware.
10.This is a professional product, You need to Program diffirent Effects file by Yourself !!!
Package Include
1*T-1000S controller
1*256MB SD card

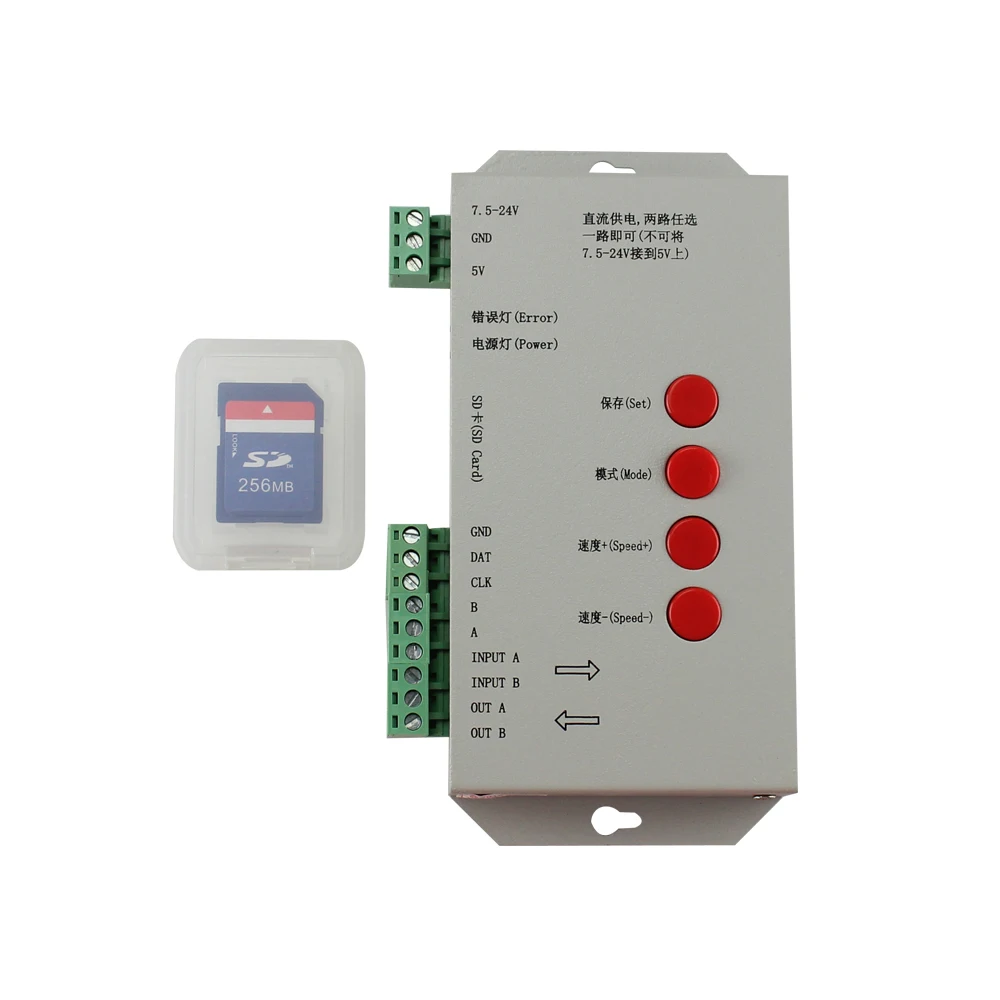

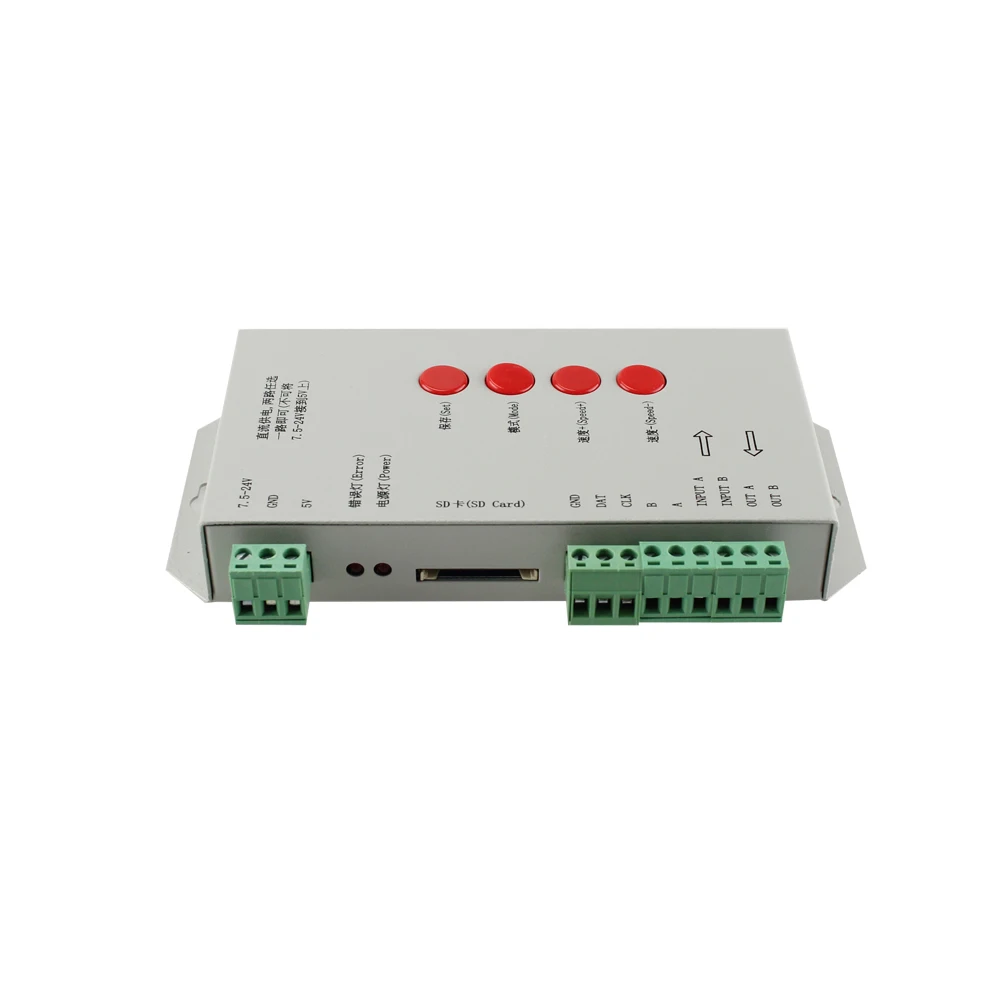

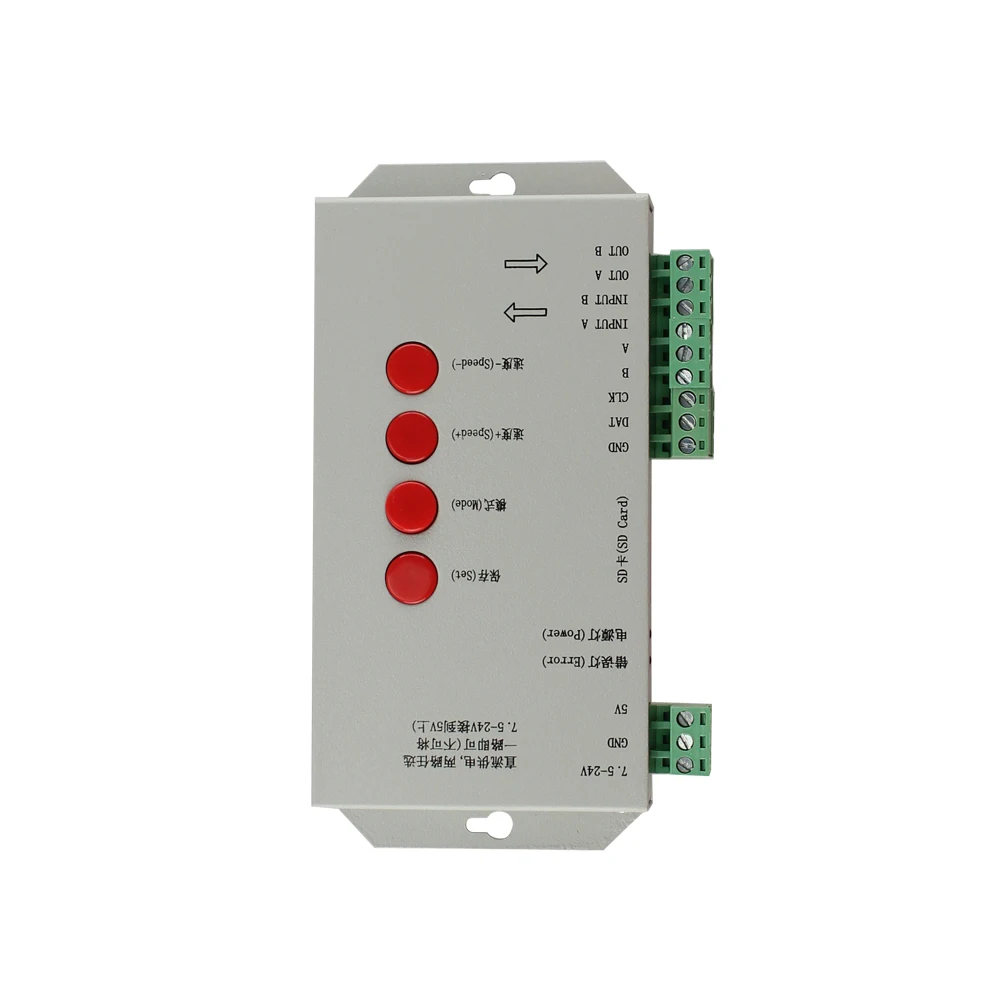

Product Show
