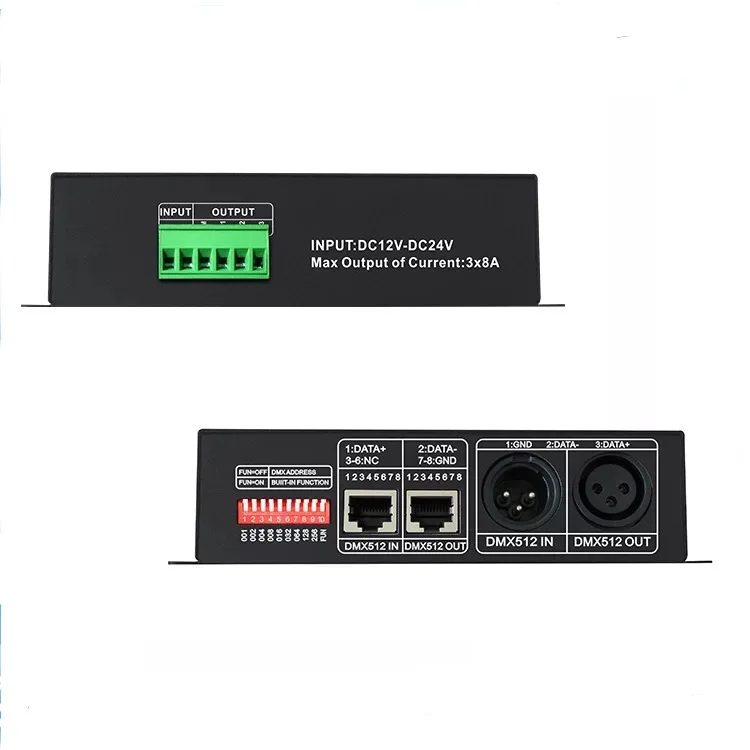

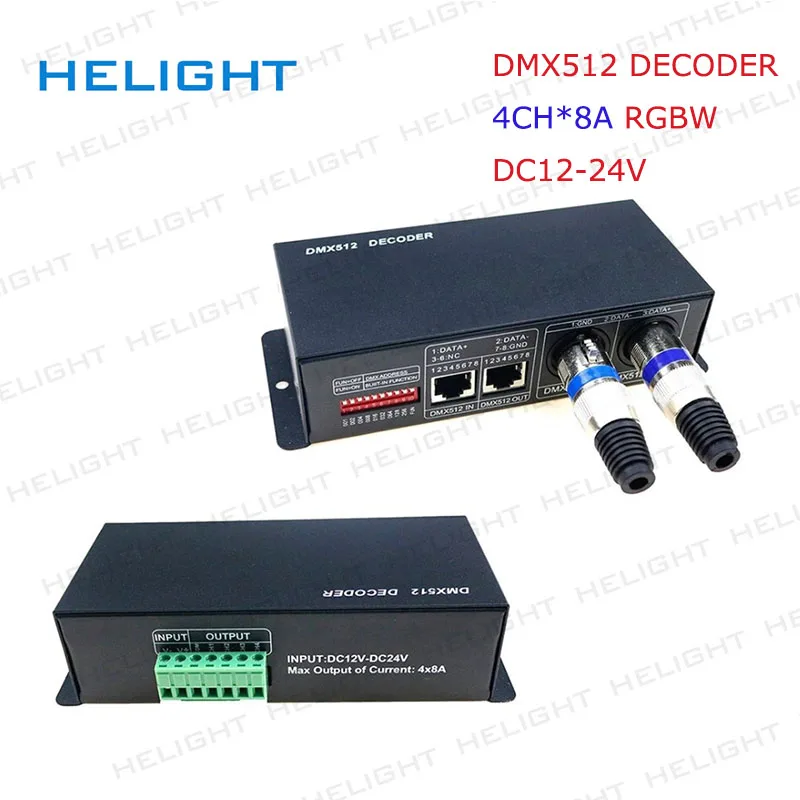

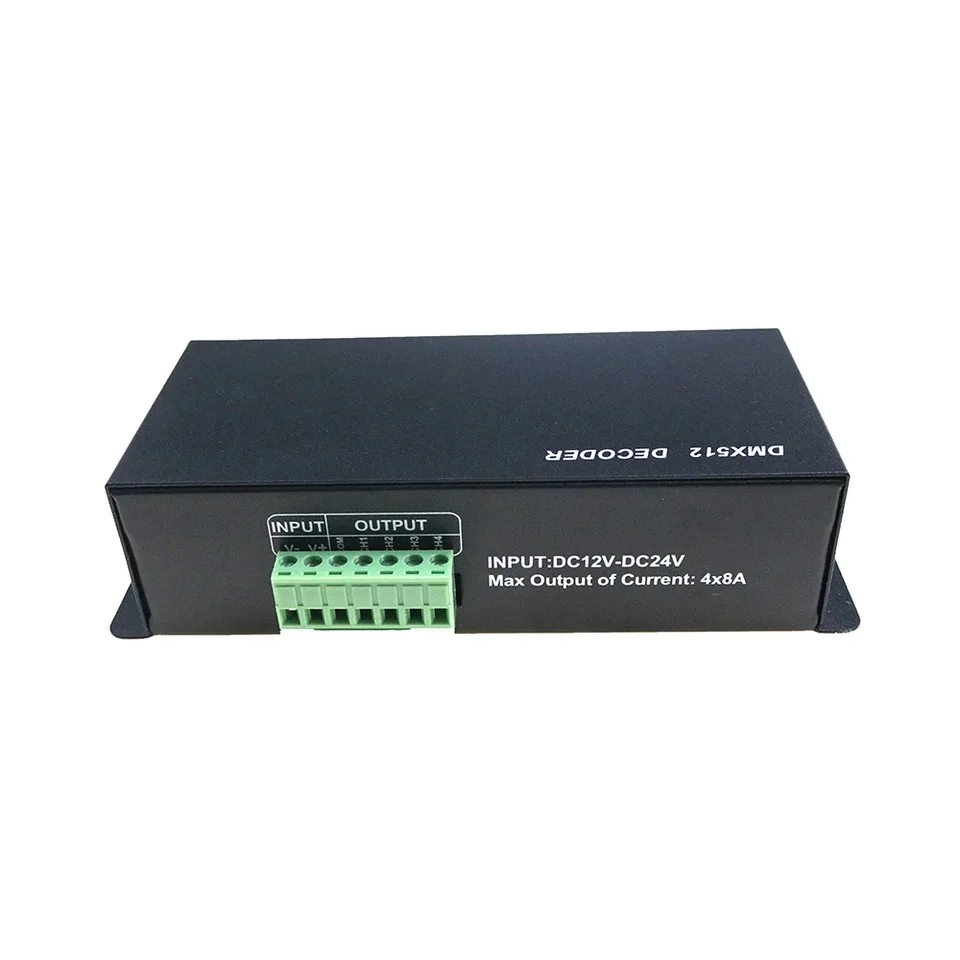

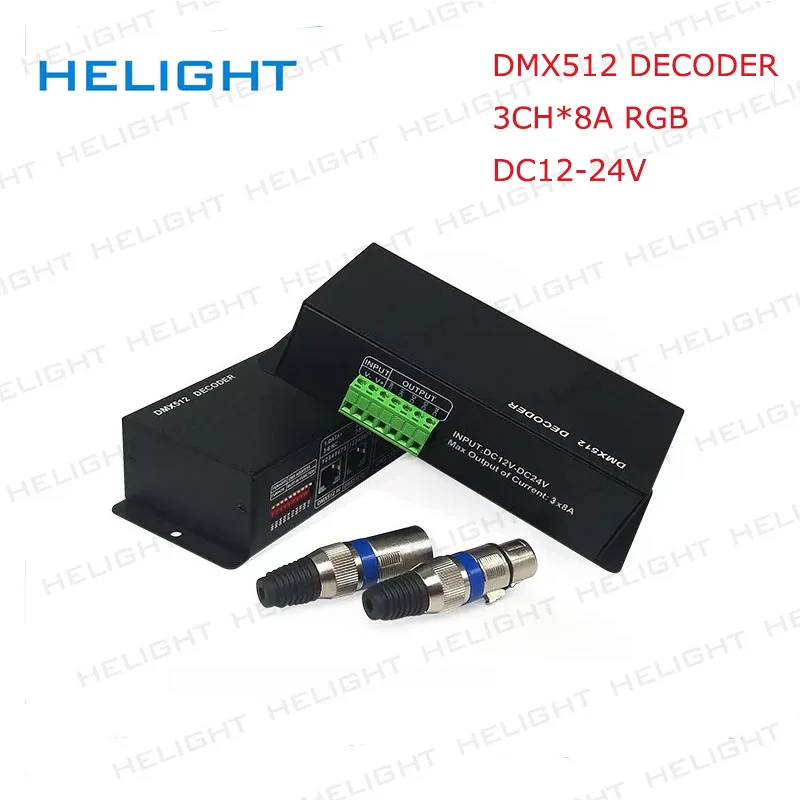

DMX Decoder LED 3CH RGB/4CH RGBW led dimmer driver for RGB/RGBW,led dmx decoder dmx512 controller DC12-24V
Technical Parameters:
Working temperature -20-60
Supply voltage 12V~24V
Connecting mode common anode
External dimension L164*W65*H40 mm
Packing size L183*W82*H60 mm
Net weight 360g
Gross weight 410g
Output gray RGB/RGBW each 256 levels
Output current 3A/4A(each channel)
Output power 12V:<144W, 24V:<288W
Package included:
1 x DMX 512 Controller(DC12-24V)
DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
