DC 5V 12V 24V Mini Bluetooth / WiFi RGB / RGBW Controller iOS Android APP IR 24Key/RF21K Remote Controler for 3528 5050 5630 LED Strip

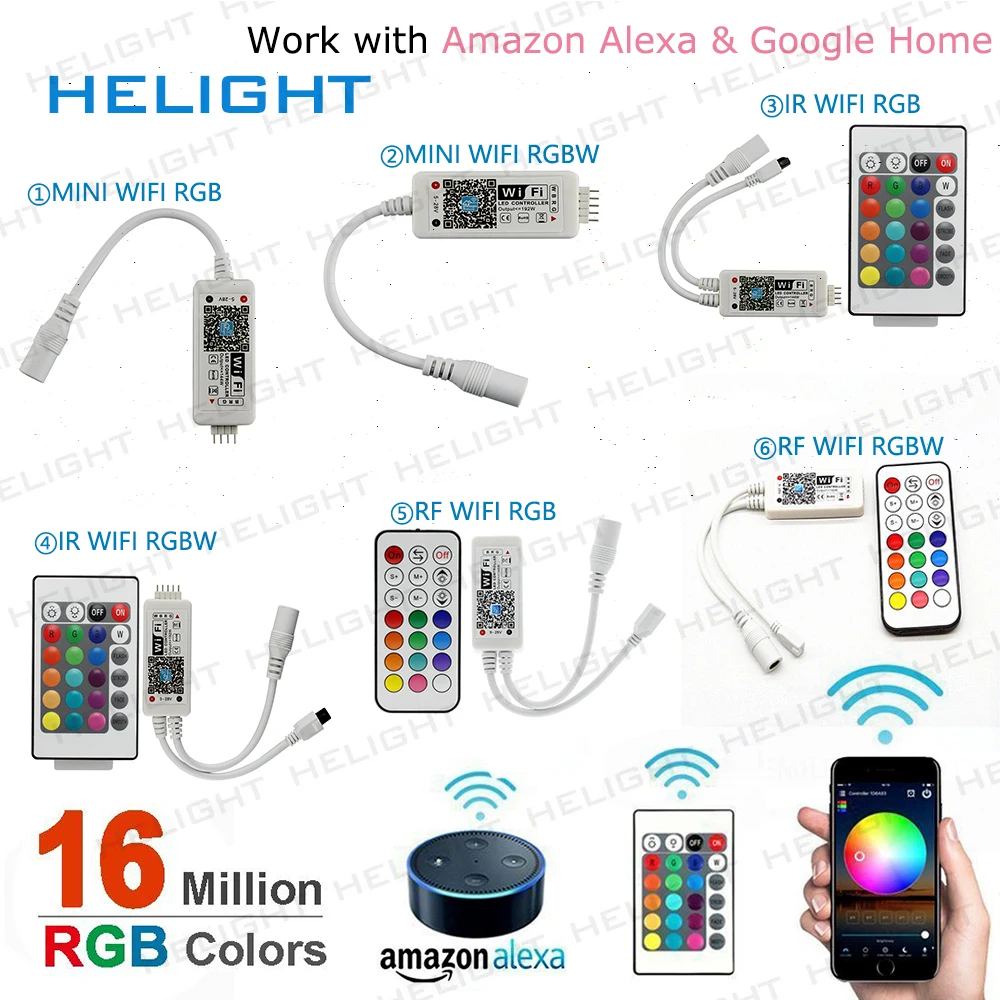

WiFi RGB/RGBW Controller:

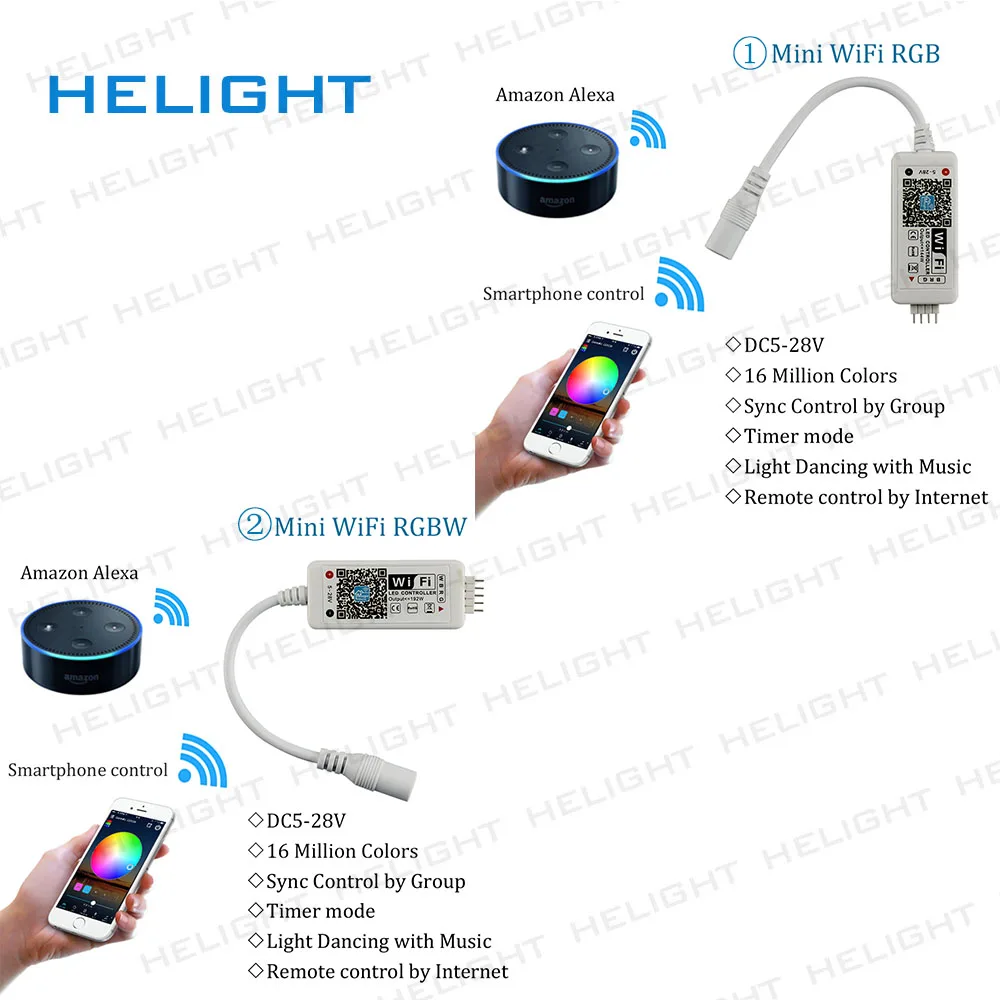

1.MINI WIFI RGB (4pin ,no remote ,4A*3CH;12A)
2.MIN WIFI RGBW (5pin,no remote,4A*4CH;16A)

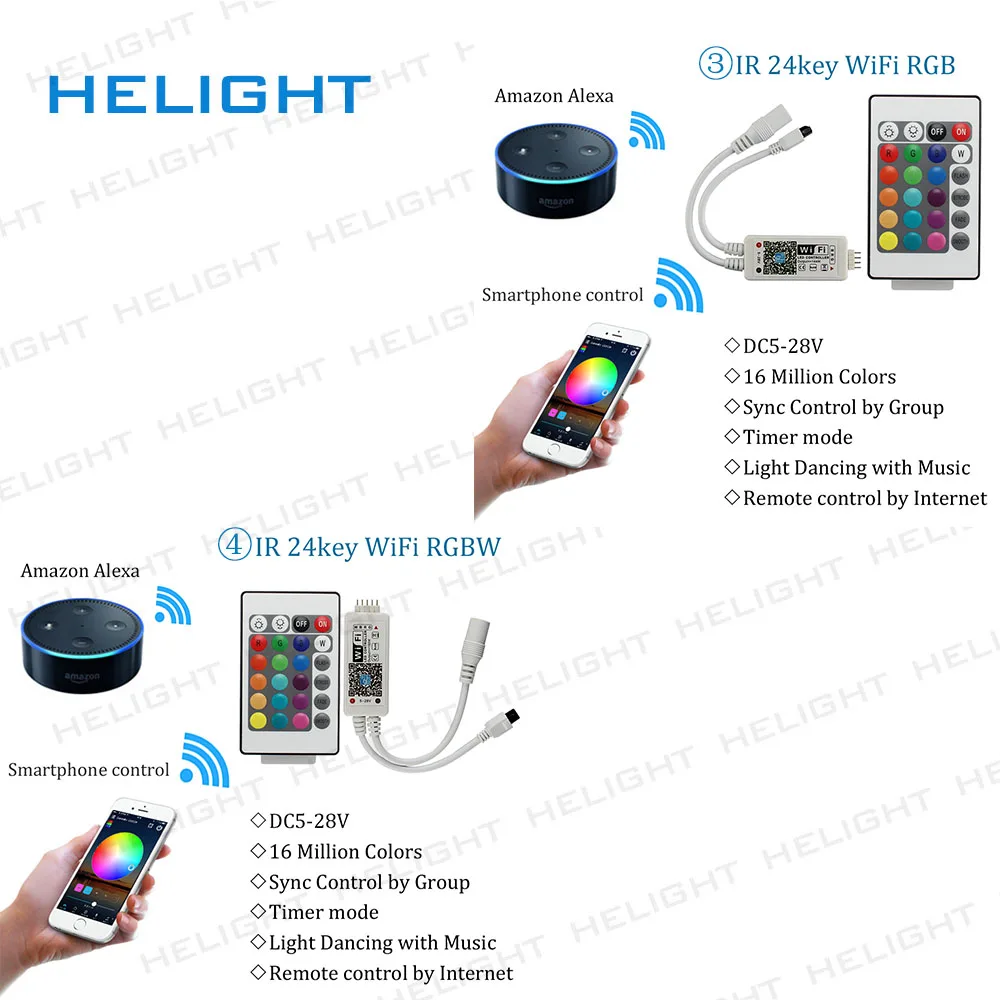

3.IR24K WIFI RGB (4pin,has IR24key remote,4A*3CH;12A)
4.IR24K WIFI RGBW (5pin,has IR24key remote,4A*4CH;16A)

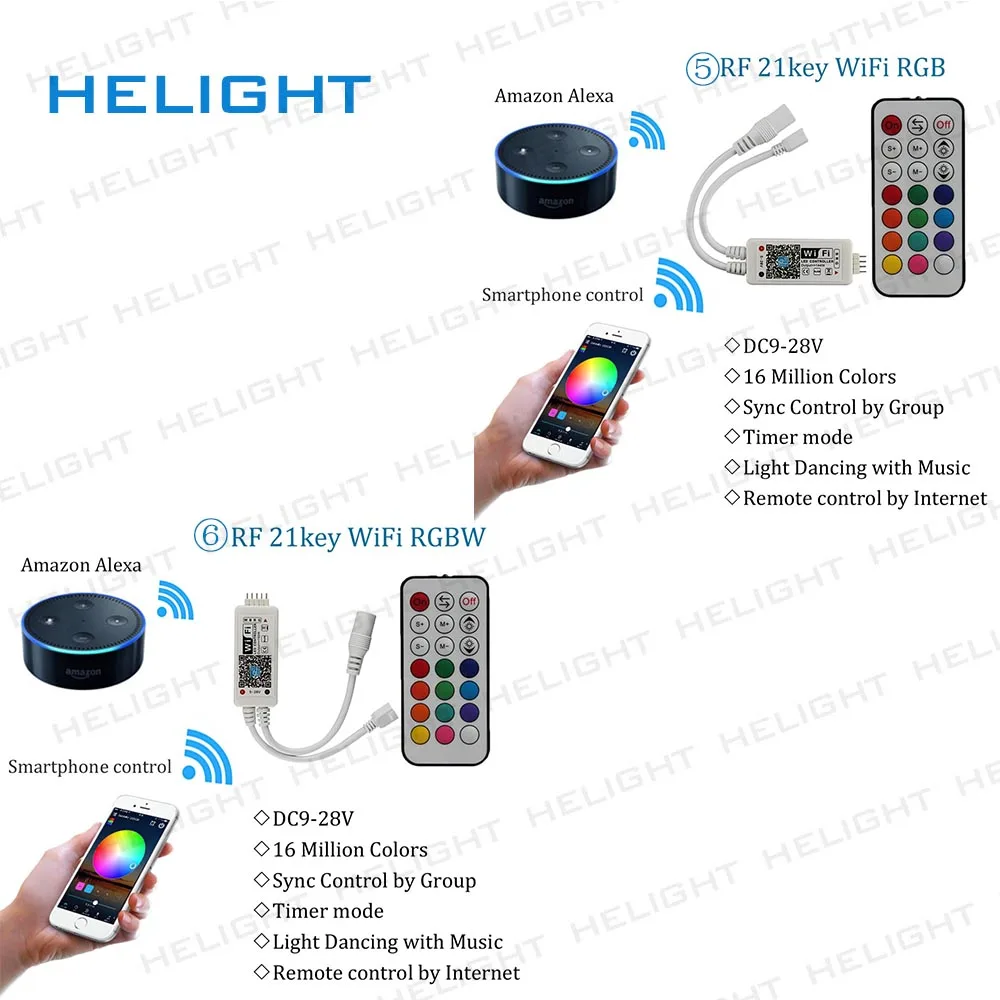

5.RF21K WIFI RGB (4pin,has RF21key remote,4A*3CH;12A)
6.RF21K WIFI RGBW (5pin,has RF21key remote,4A*4CH;16A)
Specification:
1.Working Voltage: DC5-28V
2.Output channel: Can be used 3/4 channel, RGB/RGBW channel
3.Output current: RGB: 3A*3 , RGBW: 3A*4
4.Connect method: Common anode
5.Dimension: L 53mm * 24mm *11mm
6.Distance: 50m MAX
7.Connect way: R,G,B,W for LED Light, for Power supply, ANT for WIFI Signal Reception.
8.Software: Android system(at least 2.3 version with wifi function) or IOS system.
9.Connect way: connect with RGB/RGBW led strip.
10.Max supported by 10m led strip.
Functions:
1.16 Million Colors
2.Smartphone Control
3.Sync Control by Group
4.Custom mode
5.Timer Mode
6.Kickstart your party
7. Light Dancing with Music
8.Save Favourite Colors
9.Remote control by Intenet
10.A Varity of functions :16 Million Colors / Smart Phone Control / Sync Control by Group / Custom mode / Timer Mode Kickstart your party / Light Dancing with Music / Save Favourite Colors / Remote Control by Internet
11.Can use 8 Phones to control one WiFi controller
12.There are 3 ways to control the WiFi controller : Single Mode / Network Mode/ Remote control by Internet
Product description:
1.Support both wifi control of iOS products (such as iPod, iPad, iPhone, iMac), and Android mobile devices such as Samsung, HTC, Nokia.
2.This controller is designed for LED strip, module etc. After easy installation and settings, you can use you phone (IOS or Android system) to control the light.
3.Switch freely via phone between stand-alone and on-line modes. The remote control distance can reach 50 meters.
4.Small-sized, energy-efficient, environmental protection, great convenience and humanized design
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WIFI single color Controller:

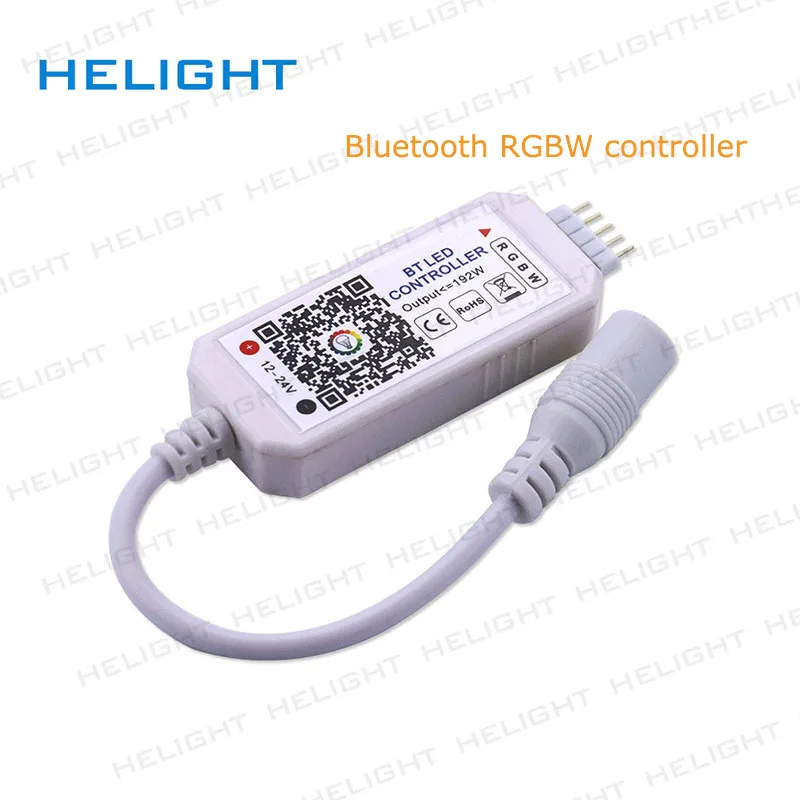

Bluetooth RGB/RGBW Controller
Package Include:
