- Place of Origin:
- China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG11000SE
- Rated Voltage:
- 220V
- Rated Current:
- 34.09A
- Speed:
- 3000RPM
- Frequency:
- 50Hz
- Product Name:
- 8KW silent diesel generator
- hour meter, three phase, wheels:
- optional, depend on you
- panel:
- normal or digital, depend on you
- rated output:
- 7.5 kva
- max. output:
- 8 kva
- portable type:
- with four wheels, portable
- automatic machine:
- with automatic transfer switch
- Warranty:
- 1 Year
- Certificate:
- CE, ISO
- Alternator:
- 100% Copper
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 113X76X86 cm
- Single gross weight:
- 225.0 kg
- Package Type:
- carton with plywood pallet

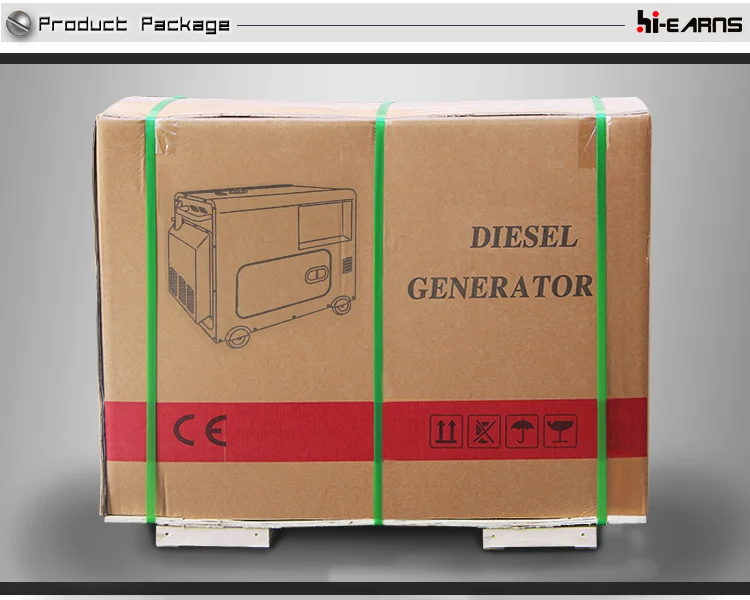

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 20 >20 Est. Time(days) 7 25 To be negotiated

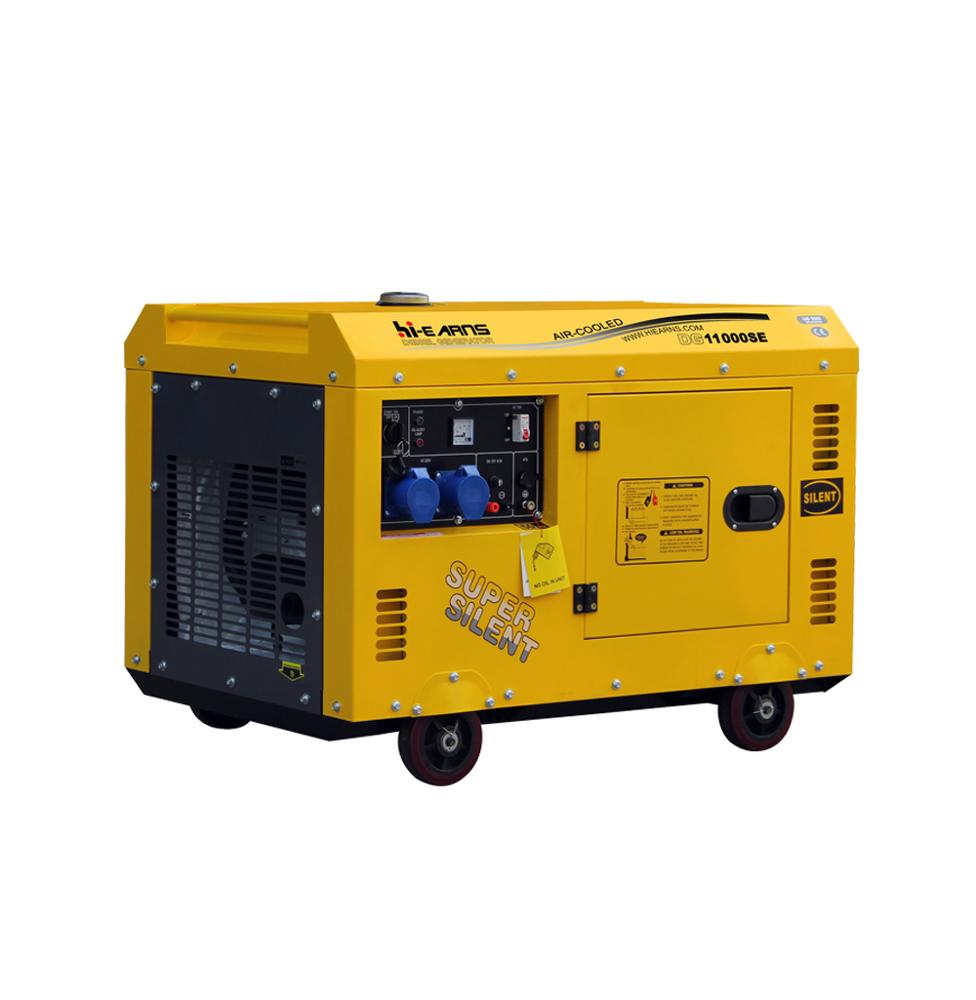

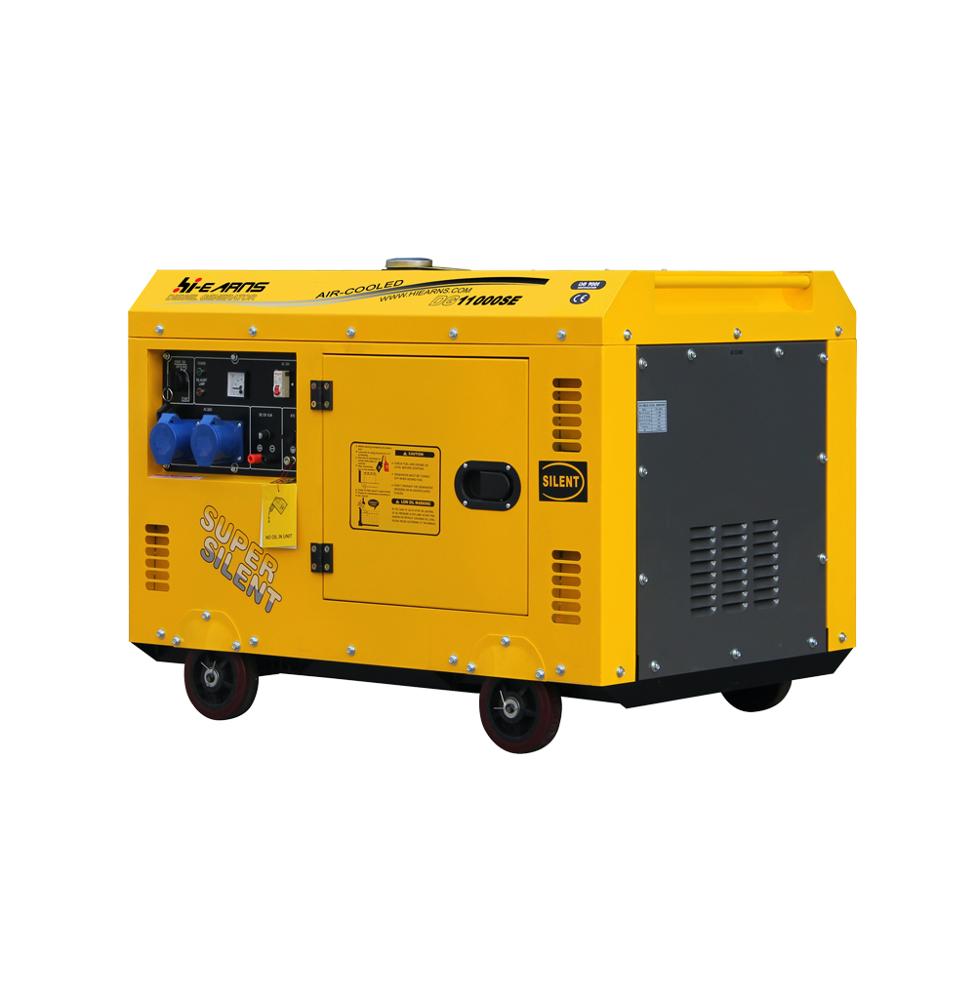

8KW air cooled silent type diesel generator
GENERATOR | Model | DG11000SE |
Frequency (HZ) | 50 | |
Max. output (KW) | 8 | |
Rated output (KW) | 7.5 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | |
Power factor (cosΦ) | cosΦ=1 | |
DC output (V) | 12V/8.3A | |
Phase | Single phase | |
Alternator type | self-excited, 2-pole, single phase alternator | |
Starting system | Electric | |
Operating noise level (at 7m) | 70~72 | |
Fuel tank capacity (L) | 30 | |
Continues work (H) | 12 | |
ENGINE | Model | HR198FA |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
Bore×stroke (mm) | 98×84 | |
Fuel | 0# or -10# light diesel fuel | |
Lubrication oil volume (L) | 1.65 | |
Combustion system | Direct lnjection | |
STANDARD FEATURES | Voltmeter | yes |
AC Output Socket | 2 | |
AC circuit breaker | yes | |
Oil warning light | yes | |
Oil alert | yes | |
OPTIONAL FEATURES | DC circuit breaker | optional |
Calculagraph | optional | |
Big Wheel | optional | |
Three phase voltage | optional | |
Current meter | optional | |
ATS | optional | |
Remote control | optional | |
Welding | optional | |
DIMENSIONS | Dimension (L×W×H) (mm) | 1110×760×860 |
Net weight (kg) | 210 | |
20FT/40HQ | 30 / 96 |
