Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG8500SE
- Rated Voltage:
- 220V
- Rated Current:
- 27.2A
- Speed:
- 3000/3600rmp
- Frequency:
- 50HZ/60HZ
- generator:
- 8000watts bule color single phase portable generator
- panel:
- common panel
- color:
- optional
- Alternator:
- 100% copper
- Engine:
- 192FB
- Type:
- Slient
- Certificate:
- CE/ISO9001
- Warranty:
- 1 Year
- Control panel:
- standard
- Options:
- Automatic Transfer Switch
Supply Ability
- Supply Ability:
- 150 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- carton
- Port
- SHANGHAI or CIF destination port

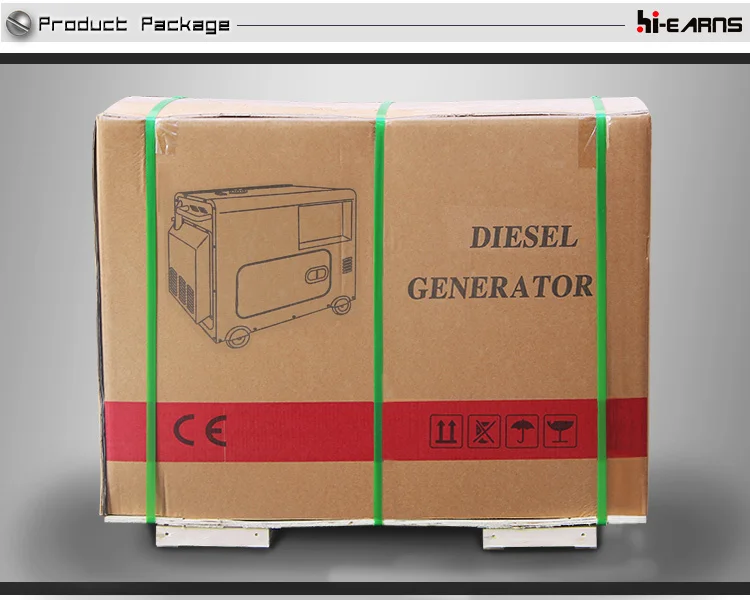

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 15 >15 Est. Time(days) 20 To be negotiated
Related Products
Product Description
GENERATOR | Model | DG8500SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.5 | 7.0 | |
| Rated output(kw) | 6.0 | 6.5 | |
| Rated. AC voltage(v) | 220/380, 230/400, 240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 7.8 | 7.1 | |
| ENGINE | Model | HR192FD | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92×75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 940×560×740 | |
| Net weight(kg) | 175 | ||
| 20FT | 72 | ||
Silent air-cooled DG
