Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SE3-N
- Rated Voltage:
- 220/380V
- Rated Current:
- 11A
- Speed:
- 3000/3600rpm
- Frequency:
- 50/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- super silent and electric
- Panel:
- digital
- Structure:
- Skylight/rings
- Wheel:
- 4inch universal wheel
- Design:
- New
- Noise:
- 65dB
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- HR186FA
Supply Ability
- Supply Ability:
- 300 Set/Sets per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:85X56X78cm
Delivery time: 15 days
One 20FT can load 80 pcs.
One 40HQ can load 160pcs.
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 40 >40 Est. Time(days) 10 20 To be negotiated
Related Products

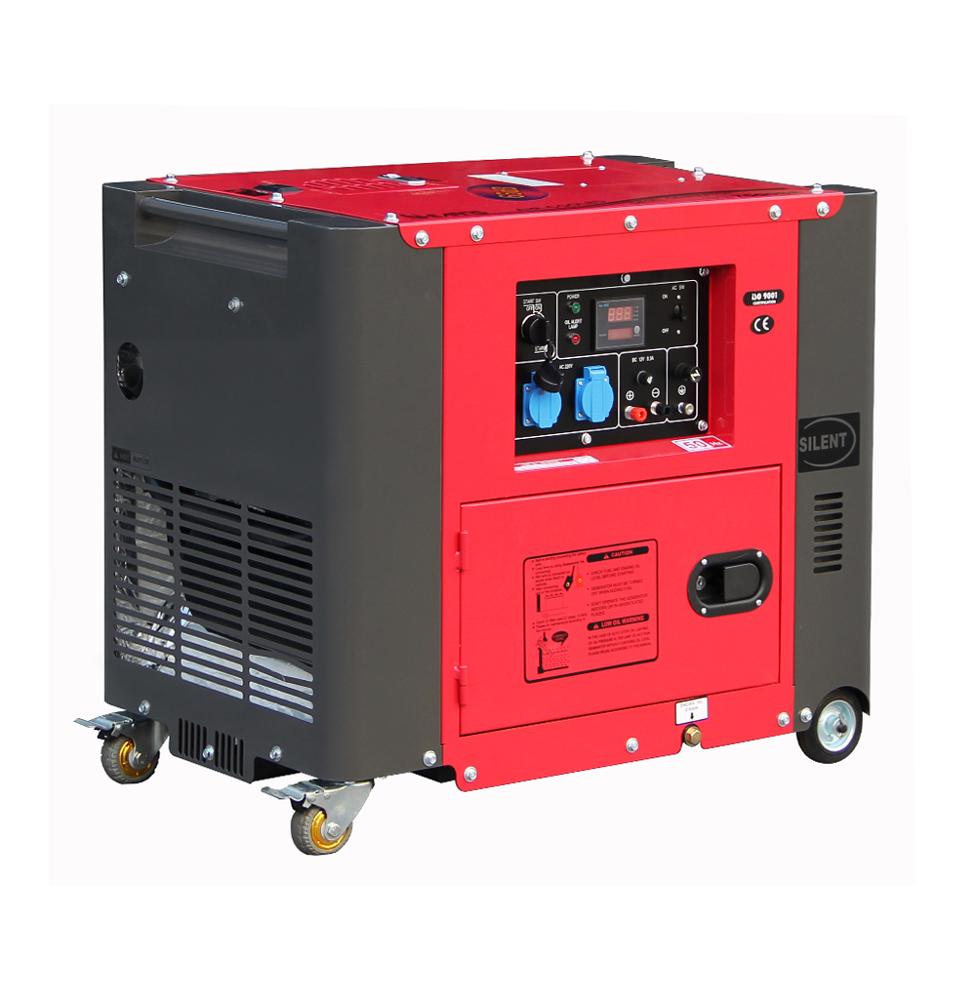

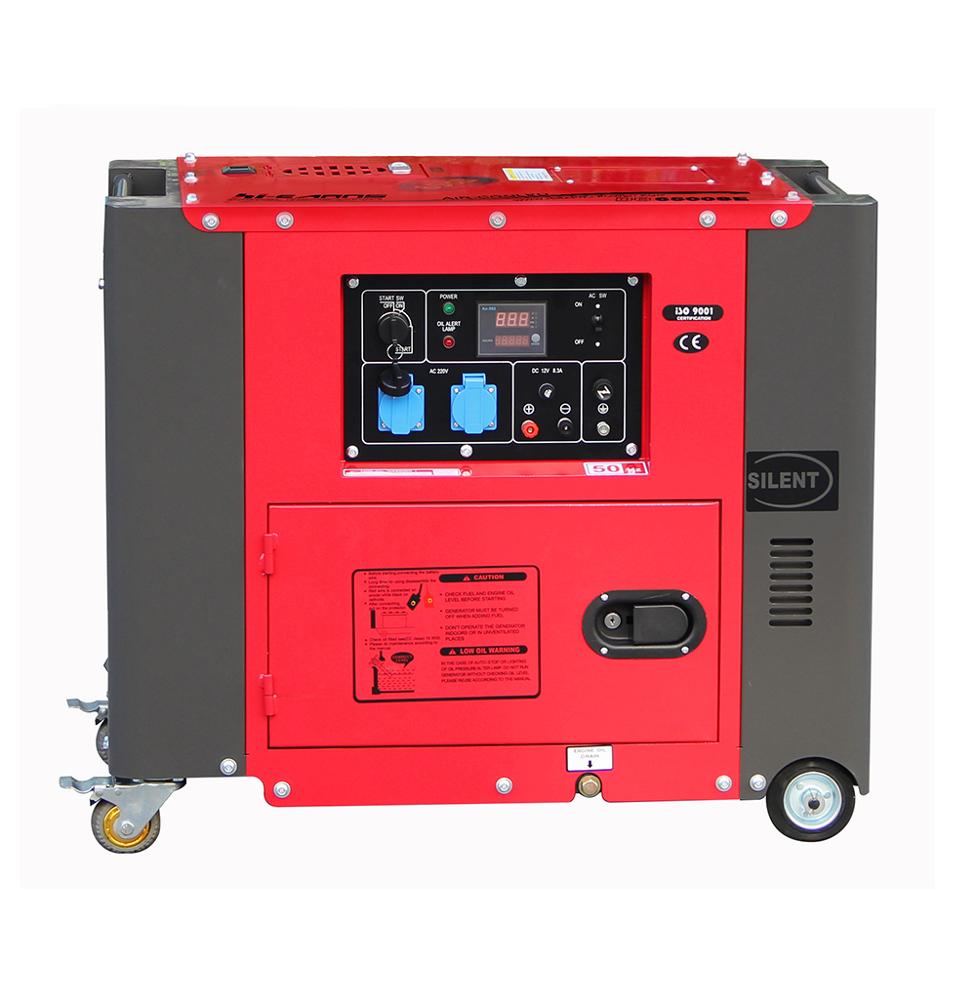

Super silent Diesel Generator set (DG6500SE3-N)
| GENERATOR | Model | DG6500SE3-N | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 4.6 | 5.0 | |
| Rated output(kw) | 4.2 | 4.6 | |
| Rated. AC voltage(v) | 120, 220, 230, 240,120/240,220/380,230/400 | ||
| Power factor(cosΦ ) | cosΦ =0.8 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 65~68 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.7 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 800× 550× 700 | |
| Net weight(kg) | 163 | ||
| 20FT | 80 | ||
Silent air-cooled DG
