- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- 120KW
- Rated Voltage:
- 220/380V,230/400V,240/415V
- Rated Current:
- 228A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Type:
- Silent/super silent/open
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Panel:
- Common/digital/ATS
- Design:
- New
- Noise:
- 75db
- Power factor:
- 1
- Phase:
- Three
- Engine type:
- Four cylinder four stroke
- Price:
- More competitive
- Warranty:
- 1 Year
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 290X110X165 cm
- Single gross weight:
- 700.0 kg
- Package Type:
- 1.PACKAGE METHOD: Wooden with plastic films or bubble wrap with plastic film and wooden plate. 2.DELIVERY TIME:25days. 3.WARRANTY:One year.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 20 20 To be negotiated

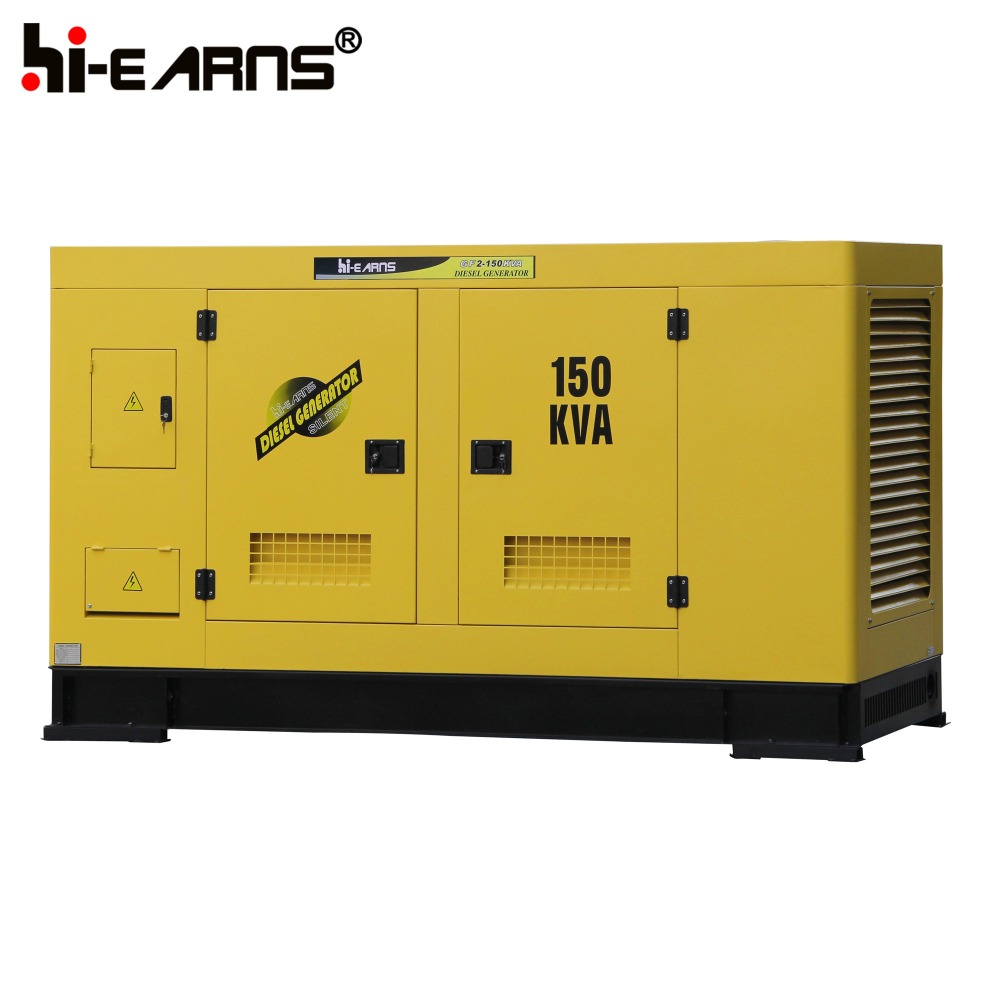

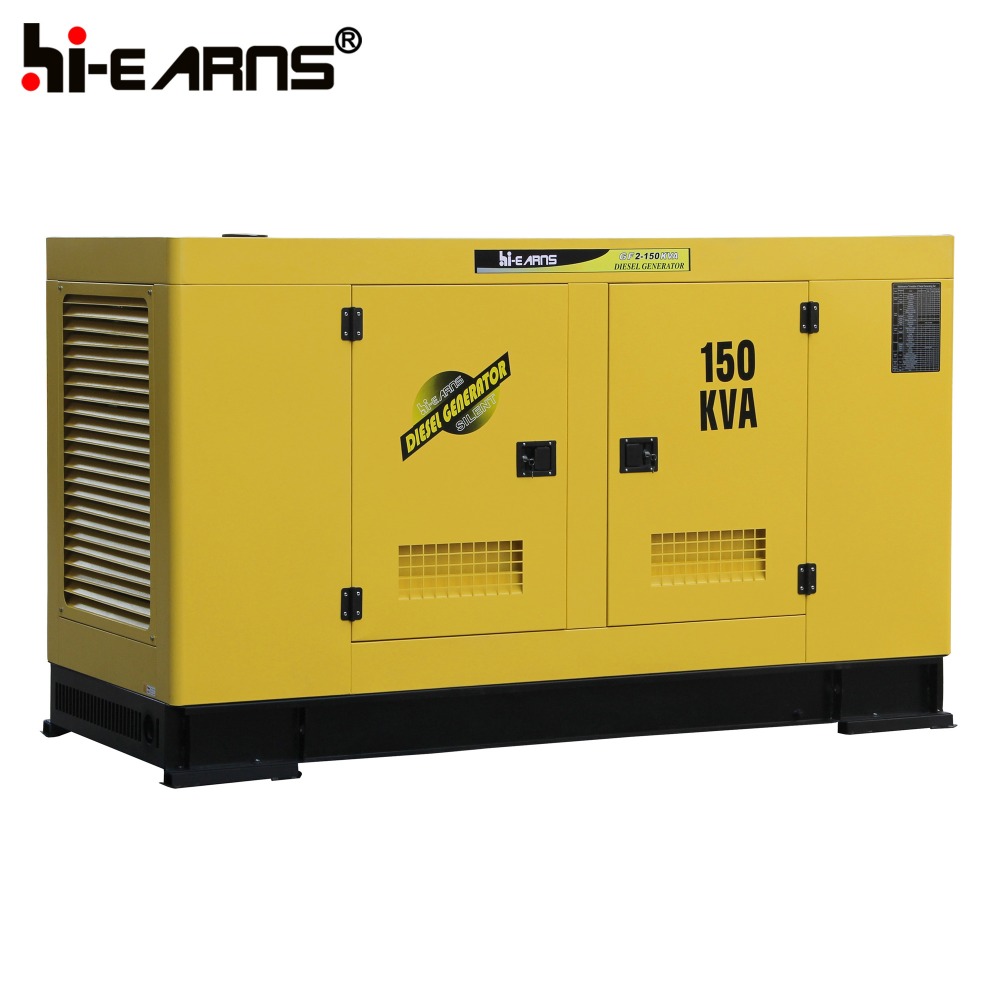

GF2-120KW/150KVA silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254/440 | 50 | 3 | 0.8 | 217 | 132/165 | 120/150 |
| 240/415 | 50 | 3 | 0.8 | 230 | 132/165 | 120/150 |
| 230/400 | 50 | 3 | 0.8 | 238 | 132/165 | 120/150 |
| 220/380 | 50 | 3 | 0.8 | 250 | 132/165 | 120/150 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Weifang Huadong Engine R6105IZLD. Four stroke,Water-cooled,Direct line,Turbo type | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤224 | |||||
| Cylinder Number | 6 | |||||
| Bore×Stroke (mm) | 105×135 | |||||
| Displacement(L) | 6.75 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 0.8 | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:2.675(m)×1.09(m)×1.55(m) | Overall Size:2.9(m)×1.1(m)×1.65(m) | |||||
| Weight:1590kg | Weight:1640kg | |||||
| DIGITAL PANEL | ||||||
| ||||||
| ATS+DIGITAL PANEL | ||||||
| ||||||
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability
is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer
develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory and our products are 100% ex- factory
pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE and ISO
6.Our logo or OEM
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
